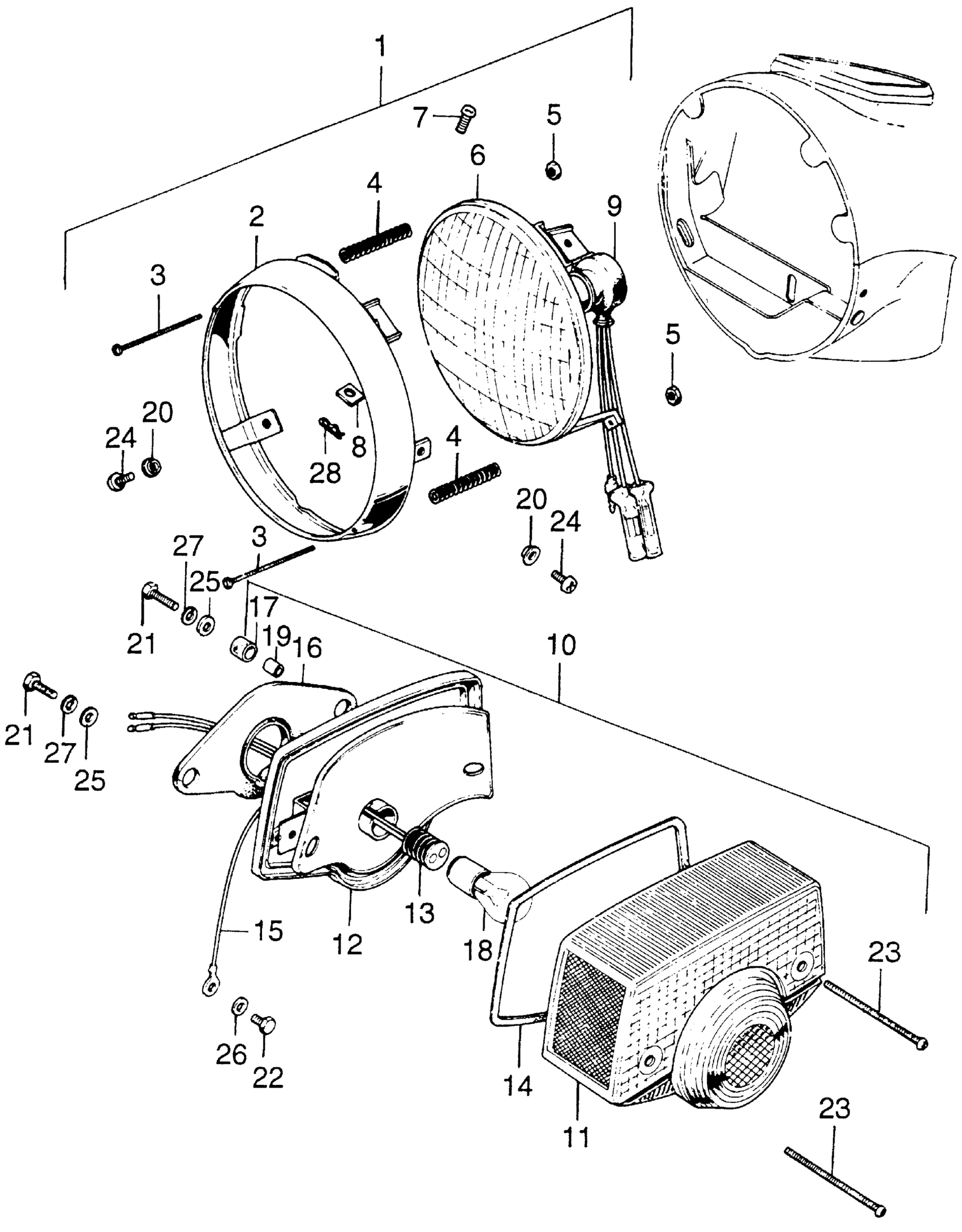

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 HEADLIGHT + TAILIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (STANLEY) (NOT AVAILABLE) This part replaces 33100-087-761.

33100-174-672

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-087-761

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33102-087-761

Unavailable

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.32

5

NUT, BEAM ADJ. | Use up to Frame SN 017961M

33117-041-003

$1.78

5

NUT, HEX. (3MM) | Use from Frame SN 017962M

94001-03000-0S

$0.94

6

HEADLIGHT UNIT This part replaces 33120-087-761.

33120-174-671

$53.00

6

HEADLIGHT UNIT This part replaces 33120-092-671.

33120-174-671

$53.00

6

HEADLIGHT UNIT

33120-174-671

$53.00

7

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-087-761

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.80

9

COVER, RUBBER

33130-111-671

Unavailable

10

TAILLIGHT, UNIT (NOT AVAILABLE)

33701-077-671

Unavailable

11

LENS, TAILLIGHT

33702-077-671

$33.59

12

BASE, TAILLIGHT

33703-077-671

Unavailable

13

WIRE, TAILLIGHT

33708-077-671

Unavailable

14

GASKET, TAILLIGHT

33709-077-671

$3.10

15

WIRE, TAILLIGHT GROUND (NOT AVAILABLE)

33712-077-670

Unavailable

16

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33719-041-300

Unavailable

17

GASKET B, TAILLIGHT BASE (NOT AVAILABLE)

33719-107-671

Unavailable

18

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$10.33

18

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$10.33

18

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$10.33

18

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$10.33

19

COLLAR, NUMBER PLATE SETTING (NOT AVAILABLE)

84706-107-671

Unavailable

20

WASHER, HEADLIGHT MOUNT (NOT AVAILABLE)

90520-041-010

Unavailable

21

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$0.68

21

BOLT, HEX. (5X16)

92101-05016-0A

$0.68

22

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.32

22

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.32

22

BOLT, HEX. (6X6)

92101-06006-0A

$1.32

23

SCREW, PAN (4X50)

93500-04050-0B

$0.99

24

SCREW, PAN (5X12)

93500-05012-0A

$0.83

25

WASHER, PLAIN (5MM)

94101-05000

$0.90

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

WASHER, SPRING (5MM)

94111-05000

$1.03

28

PIN, LOCK (5MM)

94251-05000

$0.94
