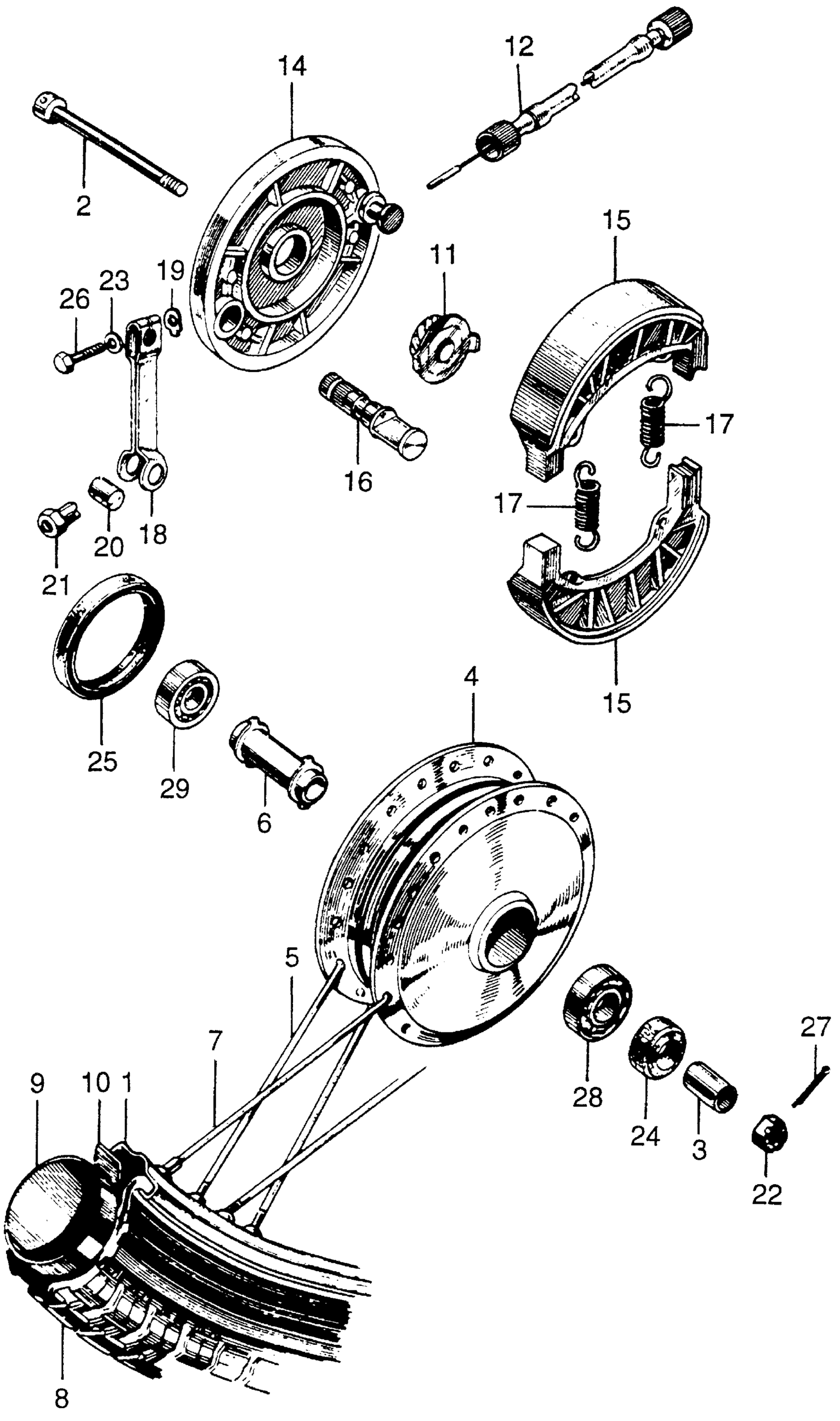

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$24.89

1

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

1

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

2

AXLE, FR. WHEEL

44301-GAC-000

Unavailable

2

AXLE, FR. WHEEL This part replaces 44301-041-680.

44301-GAC-000

Unavailable

3

COLLAR, FR. WHEEL SIDE

44311-041-000

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE) This part replaces 44601-035-000.

44601-111-770

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE)

44601-111-770

Unavailable

5

SPOKE A, FR.

44618-001-020

Unavailable

6

COLLAR, FR. AXLE DISTANCE This part replaces 44620-051-000.

44620-187-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-187-000

Unavailable

7

SPOKE A (12X162) This part replaces 44660-001-020.

97351-21164-10

$3.21

7

SPOKE A (12X162)

97351-21164-10

$3.21

7

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21

8

TIRE, FR. (2.25-17) (NITTO) (NOT AVAILABLE)

44711-041-000

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

10

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

10

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

10

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-006.

42713-102-005

$6.54

10

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

10

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

10

FLAP, TIRE (17) (INOUE) This part replaces 44713-200-000.

42713-102-005

$6.54

11

GEAR, SPEEDOMETER

44804-096-000

Unavailable

11

GEAR, SPEEDOMETER This part replaces 44806-001-000.

44804-096-000

Unavailable

12

CABLE, SPEEDOMETER

44830-041-000

Unavailable

14

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-041-010

Unavailable

15

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

16

CAM, FR. BRAKE (NOT AVAILABLE)

45131-041-000

Unavailable

17

SPRING, BRAKE SHOE

45133-028-000

$2.03

18

ARM, FR. BRAKE (NOT AVAILABLE)

45410-041-010

Unavailable

19

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

20

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

20

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

20

JOINT A, BRAKE ARM

95015-31001

$1.53

21

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

21

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

22

NUT, CASTLE (10MM)

94011-10000-0S

Unavailable

23

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

24

OIL SEAL (21X35X7) This part replaces 90752-035-000.

90752-035-003

$6.41

24

OIL SEAL (21X35X7)

90752-035-003

$6.41

25

OIL SEAL (45X58X7) This part replaces 91251-001-020.

91251-001-023

Unavailable

25

OIL SEAL (45X58X7)

91251-001-023

Unavailable

26

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

26

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

27

PIN, COTTER (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

BEARING, RADIAL BALL (6300) (NOT AVAILABLE)

96100-63000

Unavailable

29

BEARING, RADIAL BALL (6300U)

96140-63000

Unavailable
