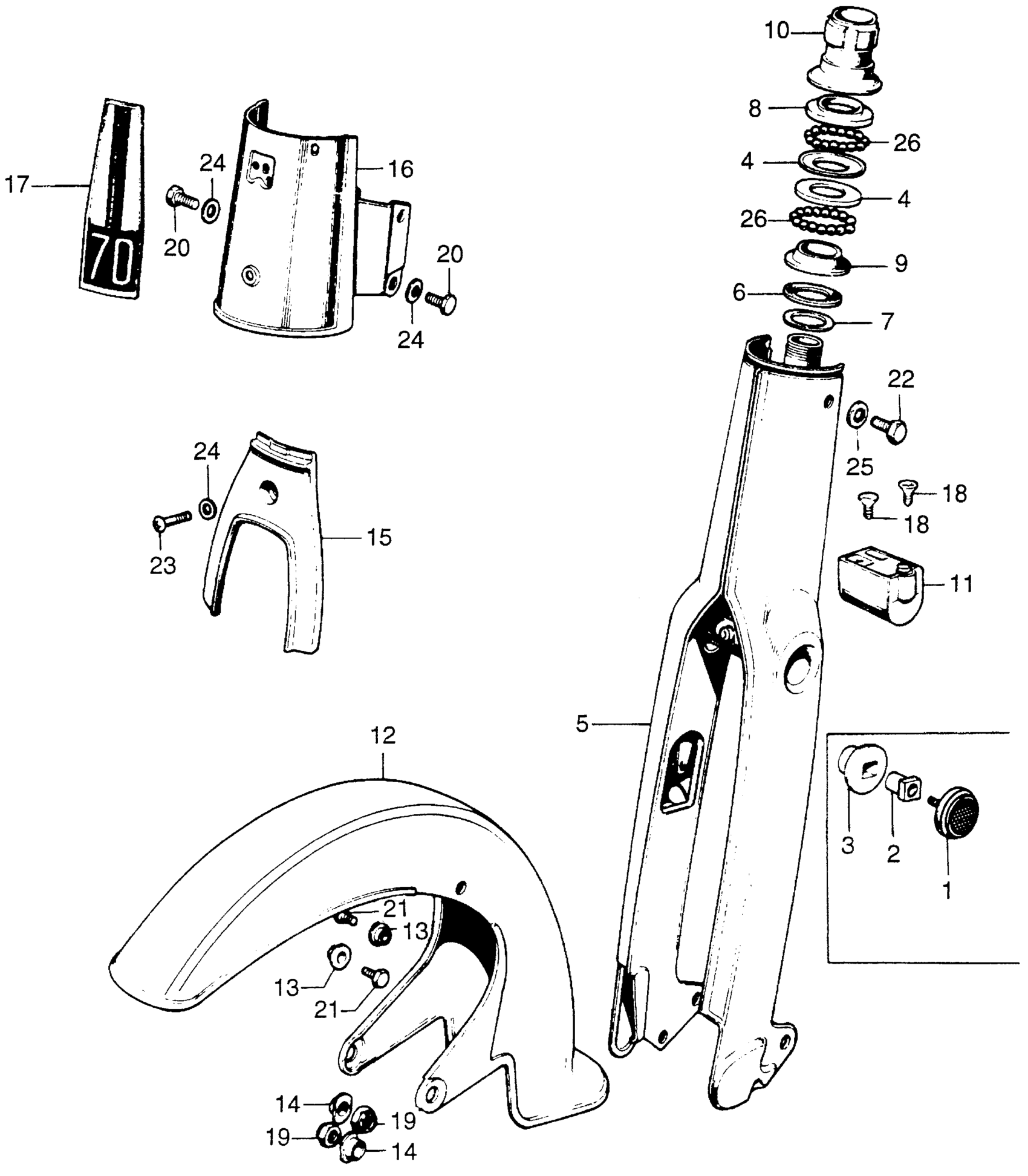

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-045-671.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

PIECE, MOUNT (NOT AVAILABLE)

33742-087-760

Unavailable

3

BASE, REFLECTOR

33744-087-760

Unavailable

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

5

FORK, FR. (NOT AVAILABLE)

51100-041-020Z

Unavailable

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

8

RACE, STEERING CONE (UPPER)

53211-030-000

Unavailable

8

RACE, STEERING CONE (UPPER) This part replaces 53216-030-305.

53211-030-000

Unavailable

9

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

10

THREAD, STEERING HEAD TOP

53220-041-010

Unavailable

11

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

11

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

12

FENDER, FR. *R8* (BRIGHT RED) (NOT AVAILABLE) This part replaces 61100-041-020AW.

61100-041-505AW

Unavailable

12

FENDER FRONT This part replaces 61100-041-020BA.

61100-041-505F

Unavailable

12

FENDER, FR. *PB52* (AQUARIUS BLUE) This part replaces 61100-041-020DY.

61100-041-505DY

Unavailable

12

FENDER, FR. *Y3L* (IVORY WHITE)

61100-041-020XL

Unavailable

12

FENDER, FR. *R8* (BRIGHT RED) (NOT AVAILABLE)

61100-041-505AW

Unavailable

12

FENDER, FR. *PB52* (AQUARIUS BLUE)

61100-041-505DY

Unavailable

13

METAL, FR. FENDER FIXING (UPPER)

61117-041-010

Unavailable

14

METAL, FR. FENDER FIXING (LOWER) This part replaces 61142-001-000.

61142-001-010

$3.03

14

METAL, FR. FENDER FIXING (LOWER)

61142-001-010

$3.03

15

COVER, FORK CENTER *R8* (BRIGHT RED) This part replaces 61150-041-020AW.

61150-041-020ZU

Unavailable

15

COVER, FORK CENTER *G14* (PINE GREEN) (NOT AVAILABLE)

61150-041-020BA

Unavailable

15

COVER, FORK CENTER *PB52* (AQUARIUS BLUE) This part replaces 61150-041-020DY.

61150-041-020ZV

Unavailable

15

COVER, FORK CENTER *Y3L* (IVORY WHITE) (NOT AVAILABLE)

61150-041-020XL

Unavailable

15

COVER, FORK CENTER *R8* (BRIGHT RED)

61150-041-020ZU

Unavailable

15

COVER, FORK CENTER *PB52* (AQUARIUS BLUE)

61150-041-020ZV

Unavailable

16

COVER, FR. TOP *R8* (BRIGHT RED)

64309-041-010AW

Unavailable

16

COVER, FR. TOP *G14* (PINE GREEN)

64309-041-010BA

Unavailable

16

COVER, FR. TOP *PB52* (AQUARIUS BLUE)

64309-041-010DY

Unavailable

16

COVER, FR. TOP *Y3L* (IVORY WHITE)

64309-041-010XL

Unavailable

17

EMBLEM, TOP COVER (NOT AVAILABLE)

87130-087-760

Unavailable

18

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

18

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

19

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

22

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

23

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
