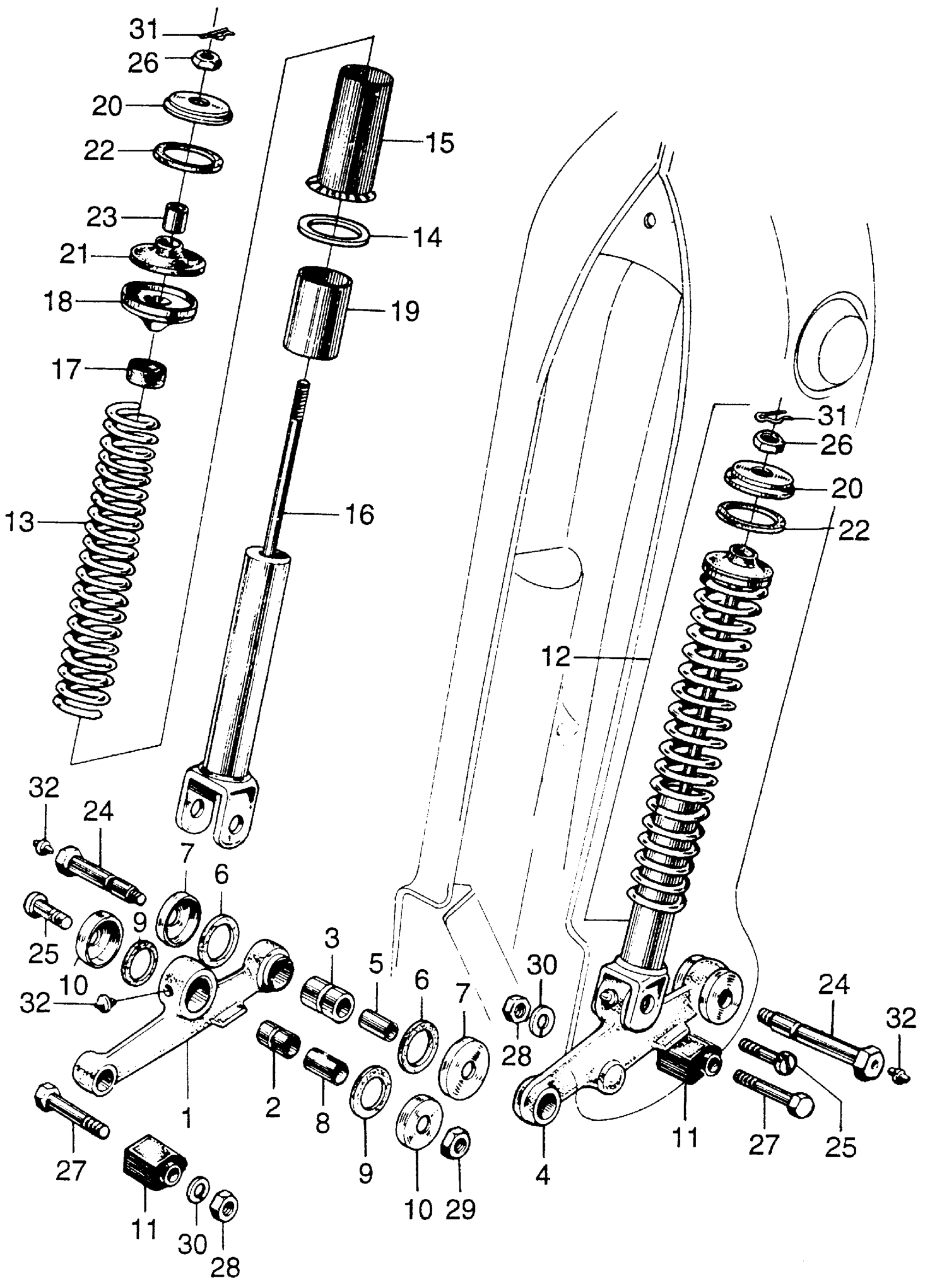

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 FRONT FORK Diagram

#

Description
Price

1

ARM, R. SUSPENSION This part replaces 51310-041-000.

51310-041-315

Unavailable

1

ARM, R. SUSPENSION This part replaces 51310-041-305.

51310-041-315

Unavailable

1

ARM, R. SUSPENSION

51310-041-315

Unavailable

2

BUSH, FR. FORK (LOWER) This part replaces 51311-041-000.

51311-041-006

Unavailable

2

BUSH, FR. FORK (LOWER)

51311-041-006

Unavailable

3

BUSH, FR. ARM PIVOT This part replaces 51312-041-000.

51312-041-006

Unavailable

3

BUSH, FR. ARM PIVOT

51312-041-006

Unavailable

4

ARM, L. SUSPENSION This part replaces 51320-041-000.

51320-041-315

Unavailable

4

ARM, L. SUSPENSION This part replaces 51320-041-305.

51320-041-315

Unavailable

4

ARM, L. SUSPENSION

51320-041-315

Unavailable

5

COLLAR, FR. ARM PIVOT (NOT AVAILABLE)

51331-041-000

Unavailable

6

DUST SEAL, FR. ARM PIVOT

51332-001-000

Unavailable

7

CAP, FR. ARM PIVOT DUST SEAL

51333-001-000

Unavailable

8

COLLAR, FR. FORK DISTANCE (LOWER)

51334-041-000

Unavailable

9

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

10

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

11

STOPPER, FR. ARM

51351-041-010

Unavailable

12

FORK ASSY., FR. (NOT AVAILABLE)

51400-041-010

Unavailable

13

SPRING, FR. FORK (NOT AVAILABLE)

51401-041-010

Unavailable

14

SEAT, FR. FORK SPRING

51407-001-000

Unavailable

15

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51409-001-020

Unavailable

16

METAL, FR. FORK (LOWER)

51420-041-010

Unavailable

17

RUBBER, FR. FORK STOPPER (NOT AVAILABLE)

51475-041-000

Unavailable

18

NUT, FR. FORK LOCK

51482-041-000

Unavailable

19

COLLAR, FR. FORK (OUTER)

51486-041-050

Unavailable

20

WASHER, FR. FORK JOINT (NOT AVAILABLE)

51487-041-000

Unavailable

21

RUBBER A, FR. FORK JOINT (NOT AVAILABLE)

51488-041-010

Unavailable

22

RUBBER B, FORK

51489-041-000

Unavailable

23

COLLAR, FR. FORK (LOWER)

51491-041-010

Unavailable

24

BOLT, FR. ARM PIVOT

90125-041-000

Unavailable

25

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

26

NUT, LOCK (7MM)

90308-041-000

Unavailable

27

BOLT, HEX. (8X50) (SOURCE: VINTAGE PARTS INC.)

93200-08050-0A

Unavailable

28

NUT, HEX. (8MM)

94001-08000-0S

$1.49

29

NUT, HEX. (8MM)

94002-08000-0S

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

PIN, LOCK (6MM)

94251-06000

$1.49

32

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

32

FITTING, GREASE (A.45)

96201-30001

$1.49
