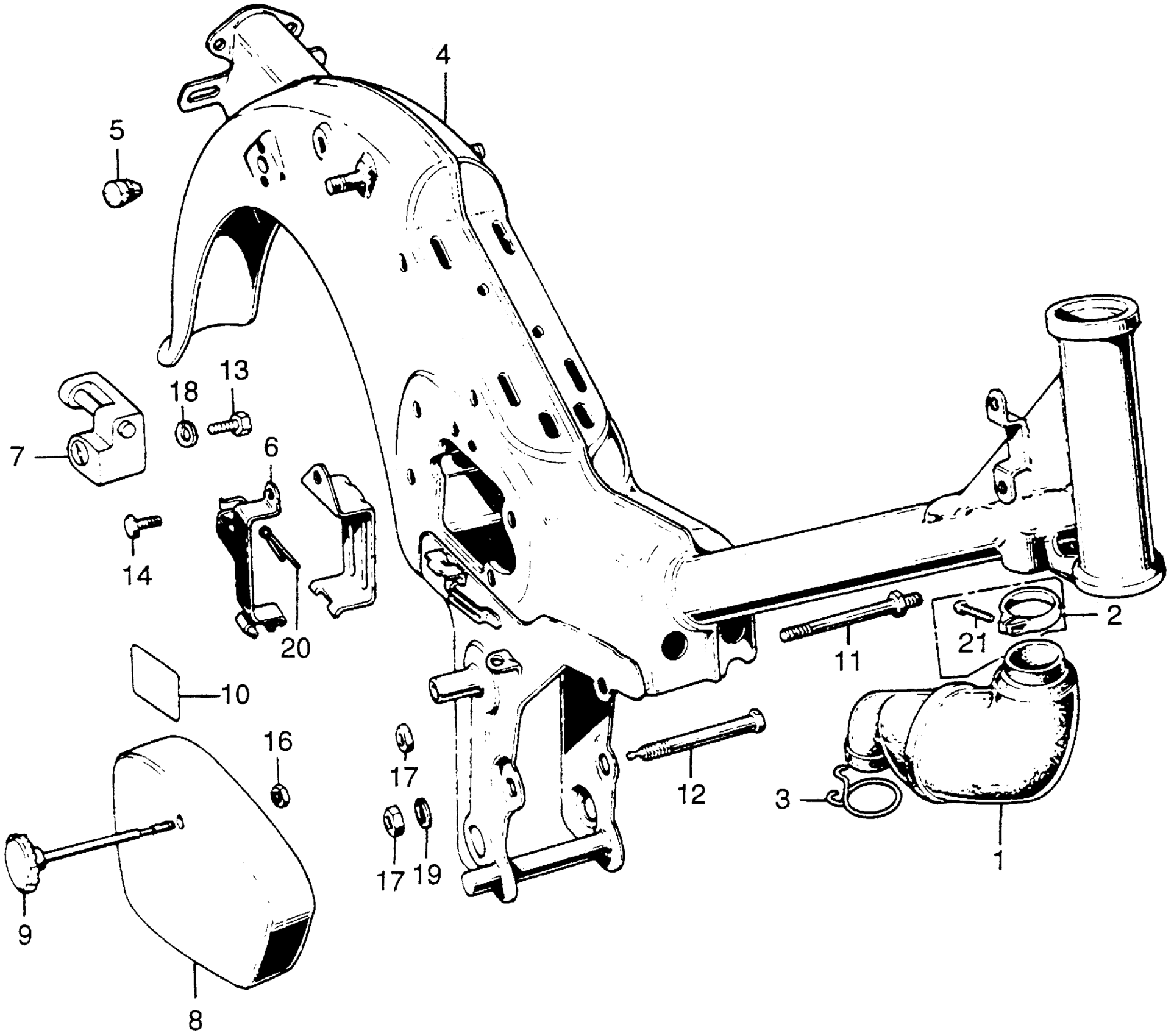

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 FRAME Diagram

#

Description
Price

1

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-040-030

Unavailable

2

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17255-041-000.

95018-34250

$7.78

2

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 90652-GHB-600.

95018-34250

$7.78

2

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$7.78

3

BAND B, CLEANER (NOT AVAILABLE)

17256-041-000

Unavailable

4

FRAME (NOT AVAILABLE) | Use up to Frame SN 034799M This part replaces 50100-087-760Z.

50100-087-761Z

Unavailable

4

FRAME (NOT AVAILABLE) | Use up to Frame SN 034799M

50100-087-761Z

Unavailable

5

PLUG

50318-041-600

$2.11

6

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50373-033-010B

Unavailable

7

HOLDER ASSY., HELMET (HONDALOCK) | Use from Frame SN 043362M

50710-086-007

$70.34

7

HOLDER ASSY., HELMET (HONDALOCK) | Use from Frame SN 043362M This part replaces 50710-110-701.

50710-086-007

$70.34

8

BOX, BATTERY *R8* (BRIGHT RED) This part replaces 83600-041-000AW.

83600-041-000ZX

Unavailable

8

BOX, BATTERY *G14* (PINE GREEN) (NOT AVAILABLE)

83600-041-000BA

Unavailable

8

BOX, BATTERY *PB52* (AQUARIUS BLUE) (NOT AVAILABLE)

83600-041-000DY

Unavailable

8

BOX, BATTERY *Y3L* (IVORY WHITE) (NOT AVAILABLE)

83600-041-000XL

Unavailable

8

BOX, BATTERY *R8* (BRIGHT RED)

83600-041-000ZX

Unavailable

9

LATCH, TOOL BOX

83650-003-000

$6.52

10

MARK, BATTERY CAUTION | Use from Frame SN 043362M

87506-087-680

Unavailable

11

BOLT A, RR. ENGINE SUPPORT

90112-003-000

$8.18

12

BOLT, RR. ENGINE (LOWER)

90116-001-010

$8.83

13

BOLT, HEX. (6X10) | Use from Frame SN 043362M This part replaces 92000-06010.

92101-06010-0A

$1.49

13

BOLT, HEX. (6X10) | Use from Frame SN 043362M

92101-06010-0A

$1.49

14

BOLT, RECESSED (6X16) This part replaces 92300-06016.

92301-06016-0A

$1.64

14

BOLT, RECESSED (6X16) This part replaces 92300-06016-0A.

92301-06016-0A

$1.64

14

BOLT, RECESSED (6X16)

92301-06016-0A

$1.64

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

SCREW, PAN (4X25)

93500-04025-0A

$1.93
