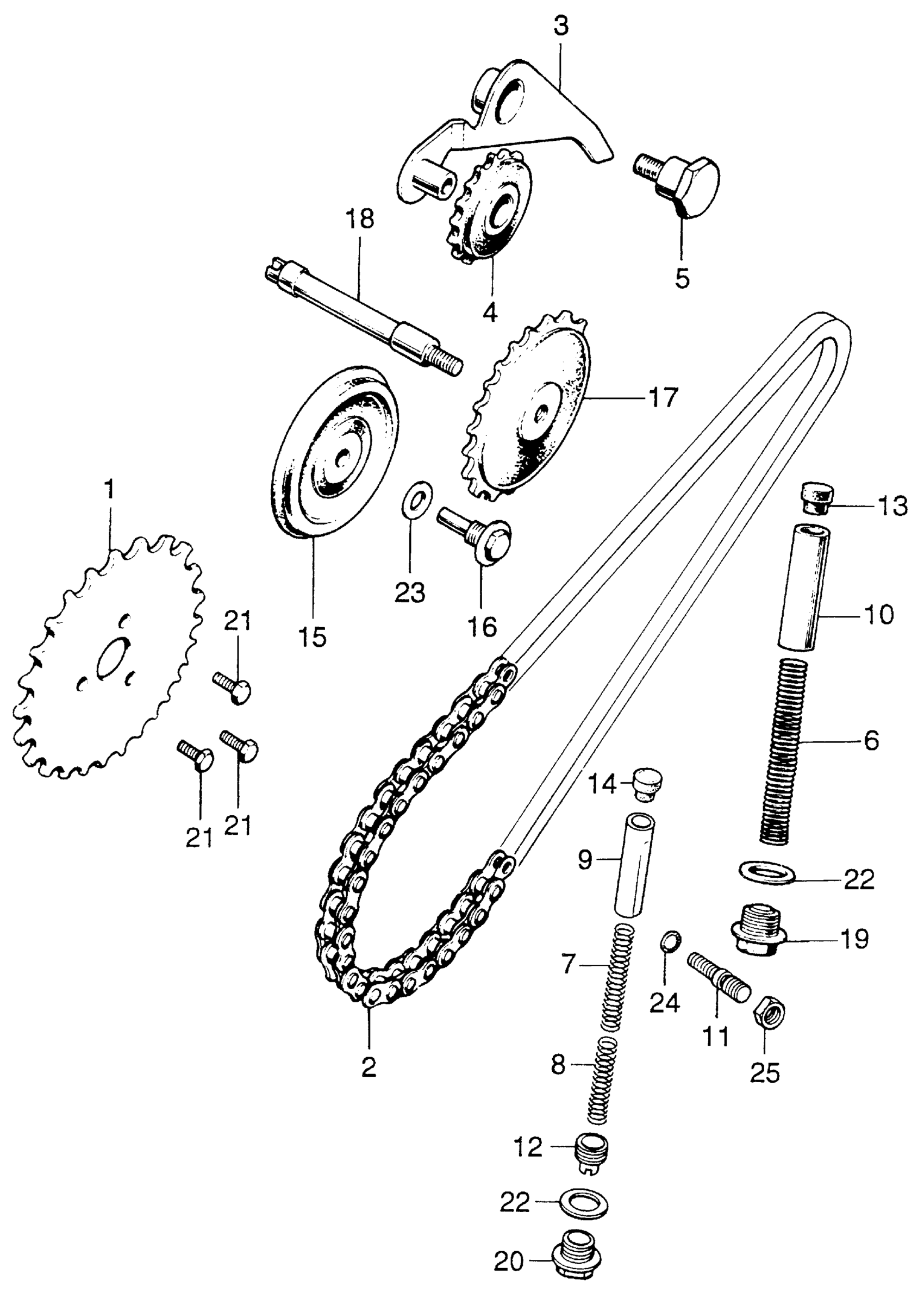

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$13.85

1

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$13.85

1

SPROCKET, CAM (28T)

14321-035-700

$13.85

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$26.88

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$26.88

3

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$25.17

3

ARM, CAM CHAIN TENSIONER

14500-035-020

$25.17

4

ROLLER, CAM CHAIN TENSIONER This part replaces 14502-035-010.

14502-086-000

$14.67

4

ROLLER, CAM CHAIN TENSIONER This part replaces 14502-035-310.

14502-086-000

$14.67

4

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$14.67

5

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.52

6

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 051861M

14541-035-010

Unavailable

7

SPRING A, CAM CHAIN TENSIONER | Use from Engine SN 051862M

14541-086-010

Unavailable

8

SPRING B, CAM CHAIN TENSIONER | Use from Engine SN 051862M

14542-086-000

$3.95

9

ROD, CAM CHAIN TENSIONER PUSH | Use from Engine SN 051862M

14550-086-010

Unavailable

10

ROD, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use up to Engine SN 051861M

14551-035-020

Unavailable

11

BOLT, CAM CHAIN TENSIONER ADJUSTING | Use from Engine SN 051862M

14561-086-010

$9.35

12

BOLT B, CAM CHAIN TENSIONER ADJUSTING | Use from Engine SN 051862M

14562-086-000

Unavailable

13

RUBBER, CAM CHAIN TENSIONER PUSH ROD HEAD | Use up to Engine SN 051861M

14566-035-000

Unavailable

14

HEAD, CAM CHAIN TENSIONER PUSH ROD | Use from Engine SN 051862M

14566-086-030

$2.12

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-035-010.

14610-086-010

$18.16

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$18.16

15

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$18.16

16

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.58

16

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.58

17

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$20.95

18

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

19

BOLT, SEALING (14MM) | Use up to Engine SN 051861M

90081-035-000

$3.95

20

BOLT, SEALING (14MM) | Use from Engine SN 051862M

90081-086-000

$5.07

21

BOLT, KNOCK (5MM)

90083-035-010

$1.83

22

WASHER, SEALING (14MM)

90441-035-000

$2.17

23

WASHER (8MM)

90481-035-000

$1.70

24

O-RING (5.5X1.5) | Use from Engine SN 051862M

91301-216-000

$2.28

25

NUT, HEX. (8MM) | Use from Engine SN 051862M

94001-08000-0S

$1.19
