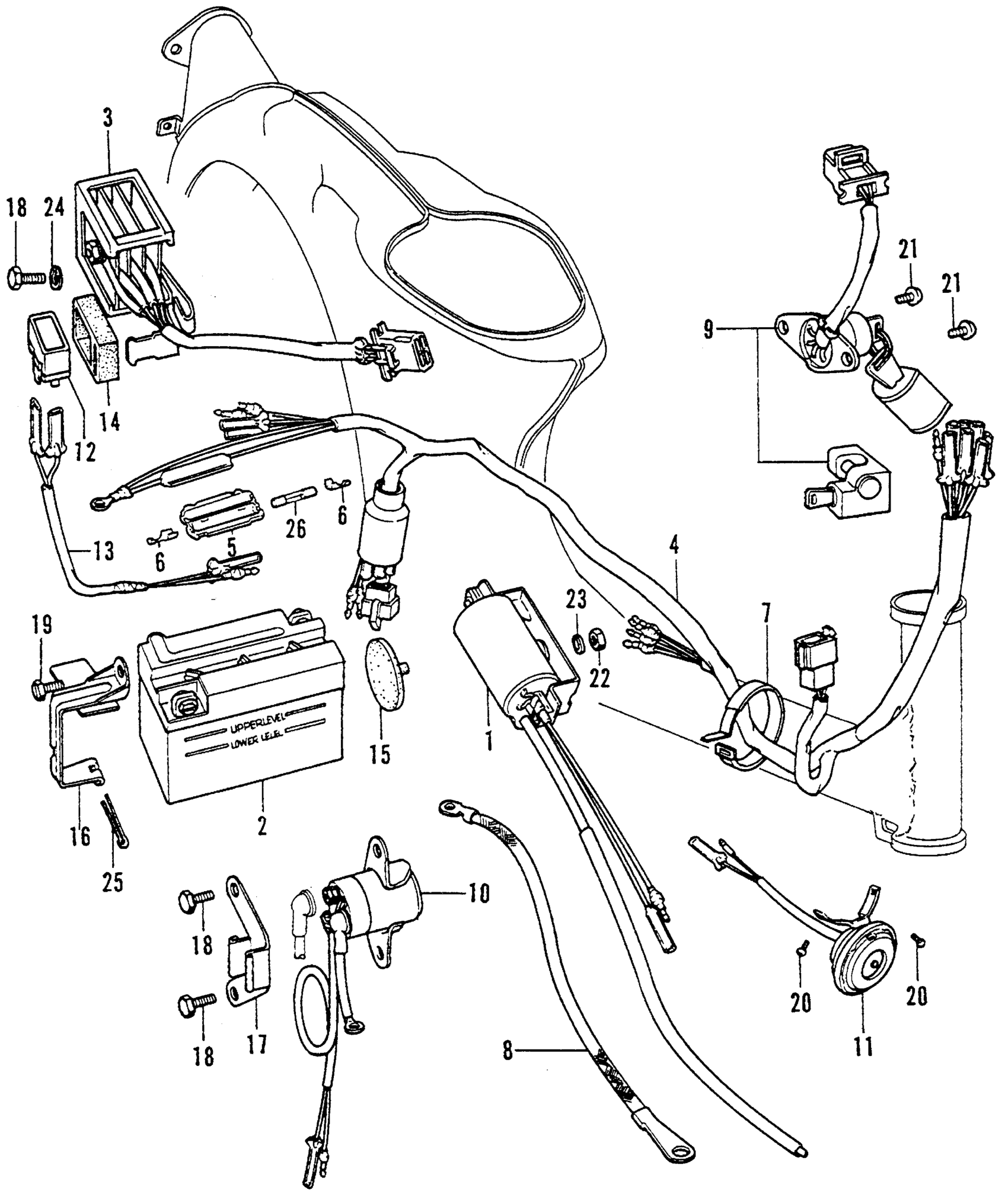

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL ASSY., IGNITION This part replaces 30500-086-693.

30530-086-711

Unavailable

1

COIL ASSY., IGNITION This part replaces 30500-086-695.

30530-086-711

Unavailable

2

BATTERY (6N11-2D) This part replaces 31500-087-761.

31500-174-505AH

Unavailable

2

BATTERY (6N11-2D) This part replaces 31500-174-505.

31500-174-505AH

Unavailable

2

BATTERY (6N11-2D) This part replaces 31500-174-771.

31500-174-505AH

Unavailable

2

BATTERY (6N11-2D) This part replaces 31500-174-777.

31500-174-505AH

Unavailable

2

BATTERY (6N11-2D) This part replaces 98203-64210.

31500-174-505AH

Unavailable

3

RECTIFIER ASSY. (NOT AVAILABLE)

31700-086-694

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-092-670

Unavailable

5

CASE, FUSE CONNECTOR

32111-230-000

$4.28

6

CONNECTOR, FUSE

32112-230-000

$3.64

7

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

7

BAND A3, CABLE

95014-61300

$1.97

8

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-003-000.

32601-086-690

Unavailable

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-086-690

Unavailable

9

SWITCH KIT, MAIN (NOT AVAILABLE)

35030-092-671

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE) This part replaces 35850-041-010.

35850-041-017

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-041-017

Unavailable

11

HORN ASSY. (NOT AVAILABLE)

38100-041-010

Unavailable

12

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

12

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

13

SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)

38303-092-670

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

15

RUBBER, BATTERY STAY (NOT AVAILABLE)

50326-003-000

Unavailable

16

BAND, BATTERY *NH1* (BLACK)

50373-086-690B

Unavailable

17

HOLDER, CONNECTOR (NOT AVAILABLE)

50374-086-690

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, RECESSED (6X12) This part replaces 92300-06012.

92301-06012-0A

$1.49

19

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

92301-06012-0A

$1.49

19

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

20

SCREW, PAN (5X12)

93500-05012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

21

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49

26

FUSE A (15A)

98200-11500

$1.49
