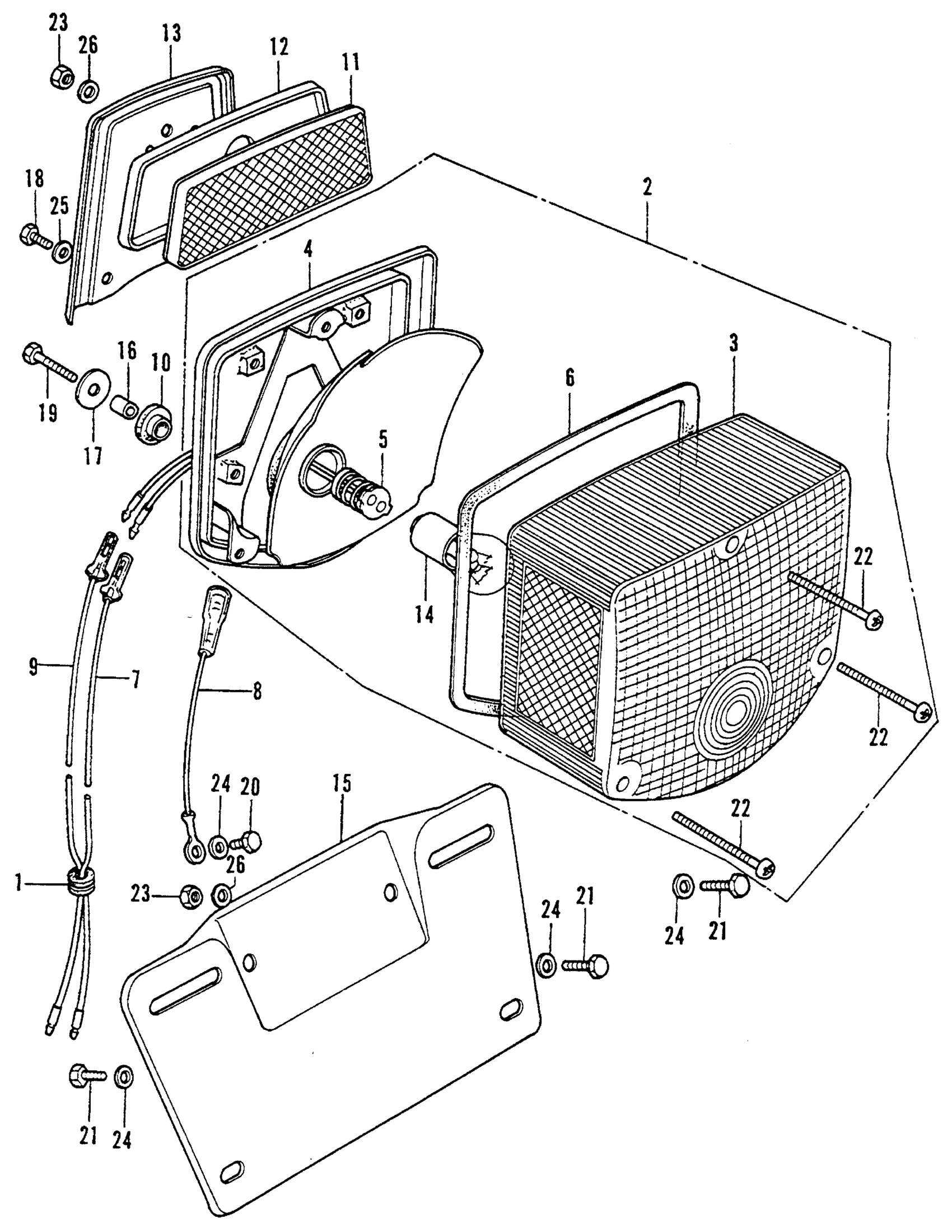

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 TAILLIGHT Diagram

#

Description
Price

1

GROMMET, TAILLIGHT WIRE (NOT AVAILABLE)

32982-011-000

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-092-671

Unavailable

3

LENS, TAILLIGHT This part replaces 33702-092-671.

33702-329-671

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-092-671

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-028-671

Unavailable

8

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

9

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)

33713-028-670

Unavailable

10

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

11

LENS, REFLEX REFLECTOR (NOT AVAILABLE)

33746-092-671

Unavailable

12

BASE, REFLEX REFLECTOR (NOT AVAILABLE)

33747-092-671

Unavailable

13

STAY, BACK REFLECTOR

33749-092-670

Unavailable

14

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

14

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

14

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

14

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

15

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-092-671

Unavailable

16

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

17

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

17

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

17

WASHER (18MM)

90581-831-650

$1.87

18

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

18

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

18

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

SCREW, PAN (4X55)

93500-04055-0B

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (5MM)

94111-05000

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49
