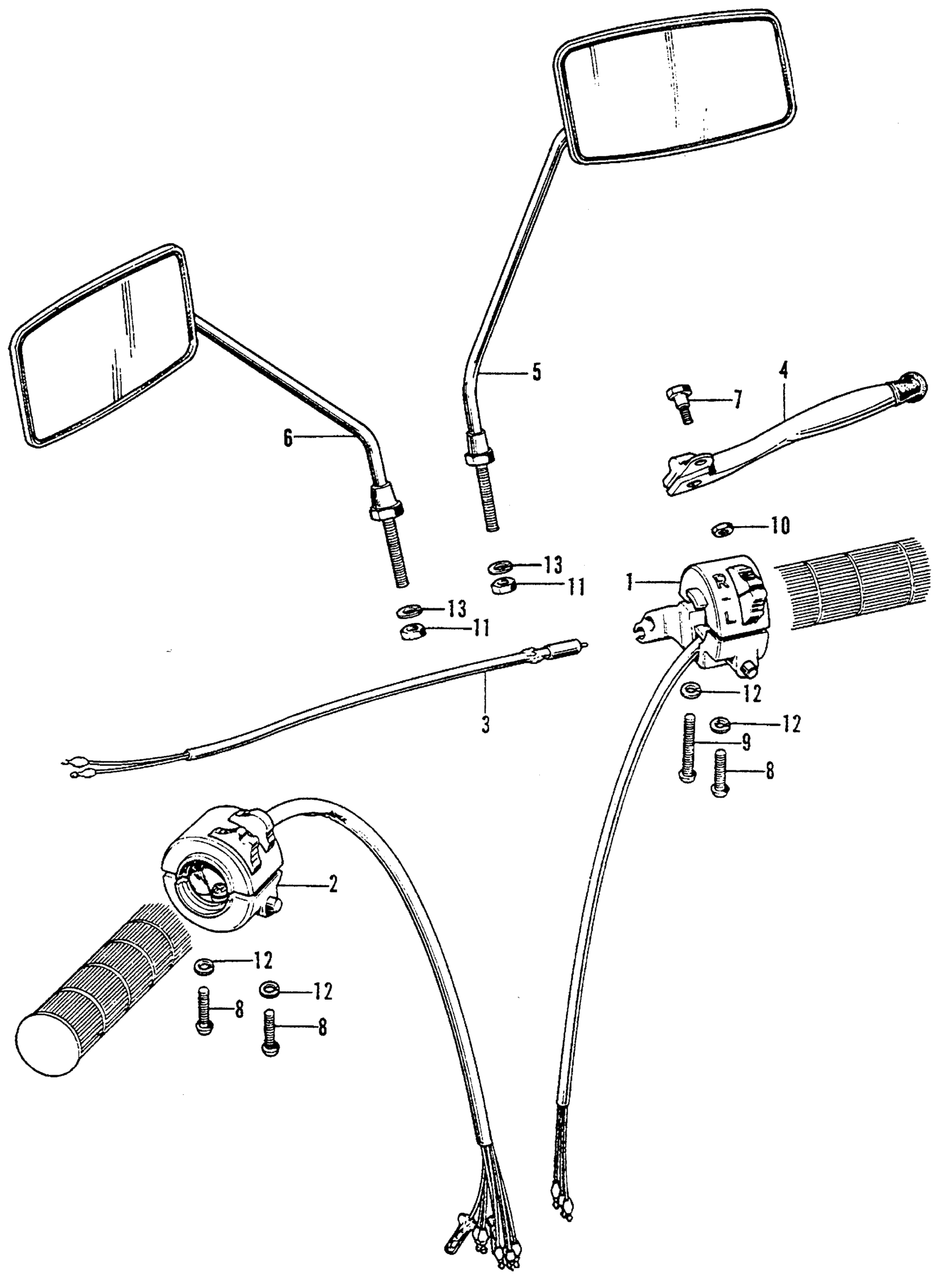

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 SWITCH Diagram

#

Description
Price

1

SWITCH ASSY., LIGHTING DIMMER

35250-092-671

Unavailable

2

SWITCH ASSY., LIGHTING HORN (NOT AVAILABLE)

35300-092-672

$100.51

3

SW.ASSY,FR.STOP L This part replaces 35340-GR1-010.

35340-GAH-710

Unavailable

3

SW.ASSY,FR.STOP L This part replaces 35340-086-003.

35340-GAH-710

Unavailable

4

LEVER, R. HANDLEBAR (NOT AVAILABLE) This part replaces 53175-086-003.

53175-096-650

Unavailable

4

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-096-650

Unavailable

5

MIRROR, R. (NOT AVAILABLE)

88110-086-000

Unavailable

6

MIRROR, L. (NOT AVAILABLE)

88120-086-810

Unavailable

7

SCREW, HANDLE LEVER PIVOT

90114-001-000

Unavailable

8

SCREW, PAN (5X20)

93500-05020-0A

$1.49

9

SCREW, PAN (5X32)

93500-05032-0A

$1.49

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

NUT, HEX. (8MM)

94001-08000-0S

$1.49

12

WASHER, SPRING (5MM)

94111-05000

$1.49

13

WASHER, SPRING (8MM)

94111-08000

$1.49
