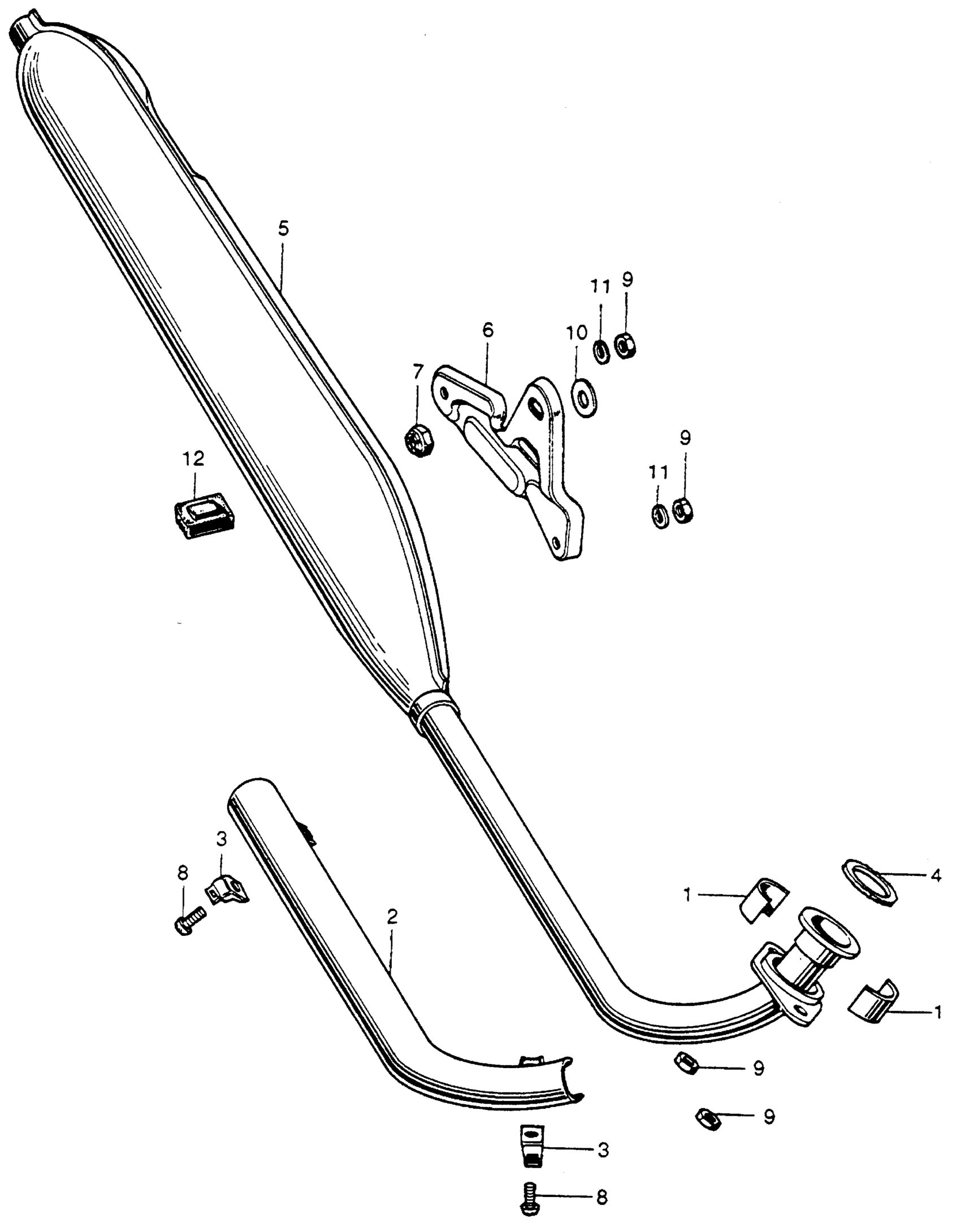

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-041-000

Unavailable

2

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18240-040-010

Unavailable

3

BAND B, EX. COVER MOUNT

18272-220-000

Unavailable

4

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-092-670.

18300-092-677

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE)

18300-092-677

Unavailable

6

STAY (UPPER) *PB12M* This part replaces 18315-041-000FB.

18315-041-000ZY

Unavailable

6

STAY (UPPER) *PB12M* This part replaces 18315-041-000FS.

18315-041-000ZY

Unavailable

6

STAY, MUFFLER (UPPER) (NOT AVAILABLE)

18315-041-000Z

Unavailable

7

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

8

SCREW, PAN (5X12)

93500-05012-0A

$1.49

9

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM)

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

10

WASHER, PLAIN (10MM)

94101-10000

$1.49

11

WASHER, SPRING (6MM)

94111-06000

$1.49

12

RUBBER A, STAND STOPPER

95011-61000

$1.49
