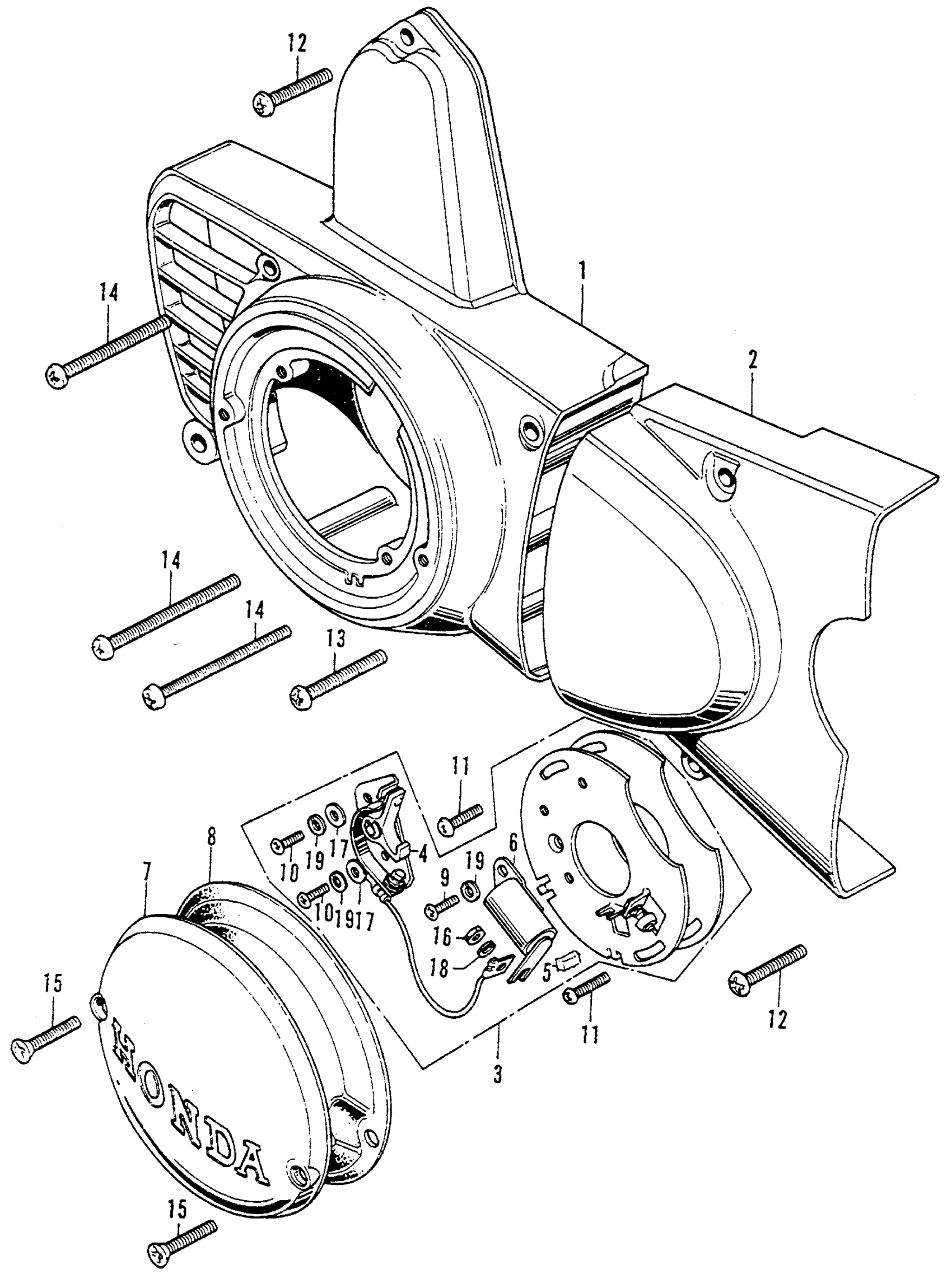

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 LEFT CRANKCASE COVER + POINTS Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-086-792

Unavailable

2

COVER, L. RR. CRANKCASE

11361-086-791

Unavailable

3

PLATE, POINTS BASE (NOT AVAILABLE) This part replaces 30200-039-005.

30200-039-154

Unavailable

3

PLATE, POINTS BASE (NOT AVAILABLE)

30200-039-154

Unavailable

4

POINTS (TOYO) This part replaces 30202-003-015.

30202-039-154

Unavailable

4

POINTS (TOYO)

30202-039-154

Unavailable

5

FELT, OIL (TOYO) This part replaces 30205-003-005.

30205-300-154

Unavailable

5

FELT, OIL (TOYO)

30205-300-154

Unavailable

6

CONDENSER (HITACHI) (NOT AVAILABLE)

30251-003-005

Unavailable

7

COVER, POINTS (NOT AVAILABLE)

30371-003-000

Unavailable

7

COVER, POINTS (NOT AVAILABLE) This part replaces 30371-092-670.

30371-003-000

Unavailable

8

GASKET, POINTS COVER (NOT AVAILABLE)

30391-030-000

Unavailable

9

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

9

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

9

SCREW, PAN (4X6)

93500-04006-0A

$1.49

9

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

10

SCREW, PAN (4X6)

93500-04006-0A

$1.49

11

SCREW, PAN (5X12)

93500-05012-0A

$1.49

12

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

12

SCREW, PAN (6X20)

93500-06020-0A

$1.49

13

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

14

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

14

SCREW, PAN (6X50)

93500-06050-0A

$1.49

15

SCREW, FLAT (5X20)

93600-05020-0A

$1.49

16

NUT, HEX. (3MM)

94001-03000-0S

$1.49

17

WASHER, PLAIN (4MM)

94101-04000

$1.49

18

WASHER, SPRING (3MM)

94111-03000

$1.49

19

WASHER, SPRING (4MM)

94111-04000

$1.49
