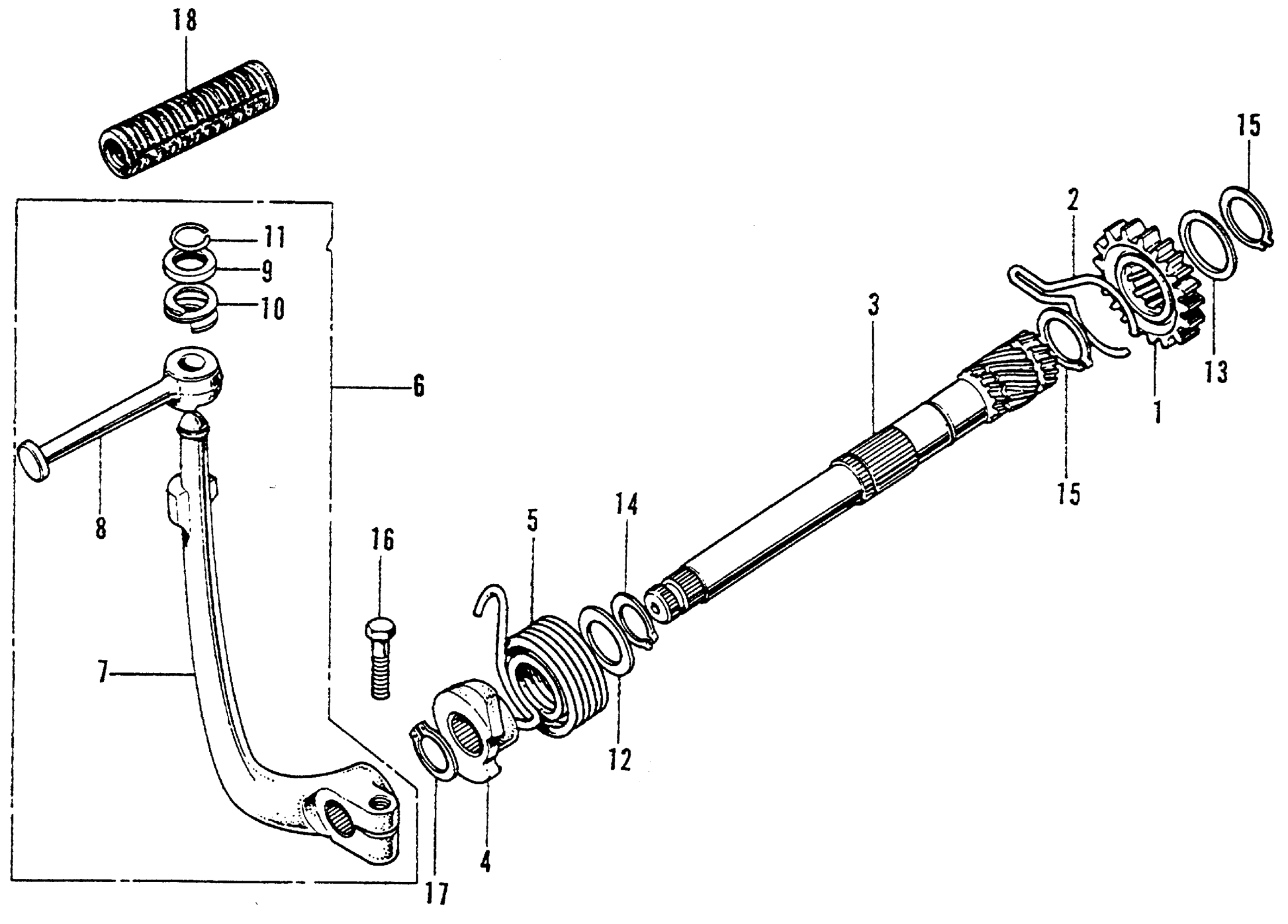

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (22T)

28211-040-035

Unavailable

2

SPRING, KICK STARTER RATCHET

28223-035-035

Unavailable

3

SPINDLE, KICK STARTER This part replaces 28251-035-065.

28251-141-000

Unavailable

3

SPINDLE, KICK STARTER

28251-141-000

Unavailable

4

RETAINER, KICK SPRING This part replaces 28262-035-020.

28262-041-731

$16.77

4

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

4

RETAINER, KICK SPRING

28262-041-731

$16.77

5

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

5

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$8.38

6

ARM ASSY., KICK STARTER

28300-040-000

Unavailable

7

ARM, KICK STARTER

28301-040-000

Unavailable

8

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

8

PEDAL, KICK STARTER

28302-126-770

Unavailable

9

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

10

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

11

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

12

WASHER, THRUST (17MM)

90451-040-000

Unavailable

13

WASHER (20MM) (NOT AVAILABLE)

90482-035-025

Unavailable

14

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

15

SET-RING (20MM)

90605-200-000

$2.92

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

16

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

17

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

18

RUBBER A, KICK STARTER

95011-51000

$3.69
