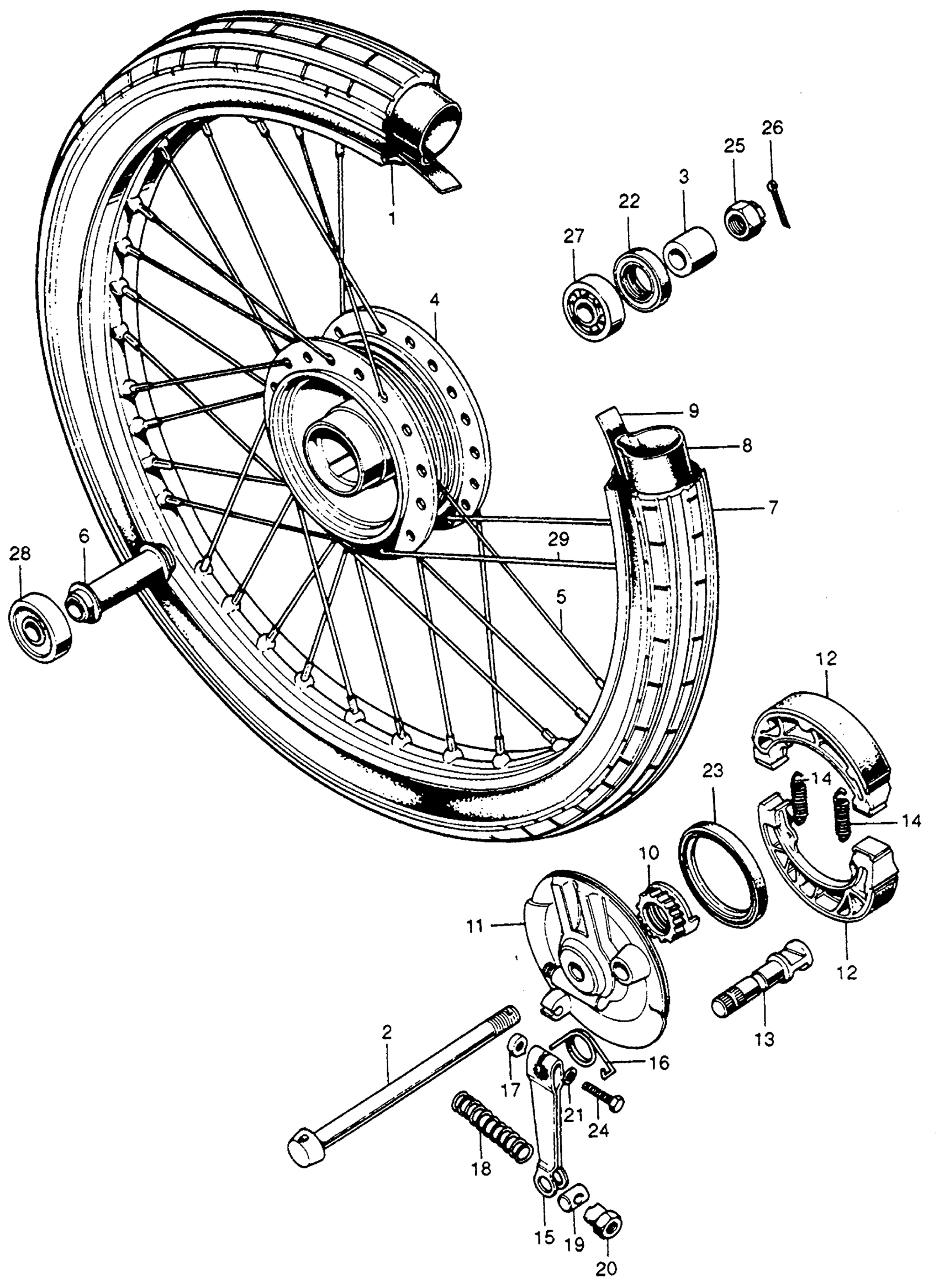

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 FRONT WHEEL Diagram

#

Description
Price

1

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

1

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

1

RIM, WHEEL This part replaces 42701-041-010.

42701-001-073

Unavailable

1

RIM, WHEEL This part replaces 42701-041-020.

42701-001-073

Unavailable

2

AXLE, FR. WHEEL

44301-GAC-000

Unavailable

2

AXLE, FR. WHEEL This part replaces 44301-041-680.

44301-GAC-000

Unavailable

3

COLLAR, FR. WHEEL SIDE

44311-041-000

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE)

44601-111-770

Unavailable

5

SPOKE A, FR.

44618-001-020

Unavailable

6

COLLAR, FR. AXLE DISTANCE This part replaces 44620-051-000.

44620-187-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-187-000

Unavailable

7

TIRE, FR. (2.25-17) (NITTO) (NOT AVAILABLE)

44711-041-000

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

8

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

9

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

9

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

9

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

10

GEAR, SPEEDOMETER

44804-096-000

Unavailable

10

GEAR, SPEEDOMETER This part replaces 44806-001-000.

44804-096-000

Unavailable

11

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-041-010

Unavailable

12

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

13

CAM, FR. BRAKE (NOT AVAILABLE)

45131-041-000

Unavailable

14

SPRING, BRAKE SHOE

45133-028-000

$2.03

15

ARM, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-051-000.

45410-128-670

Unavailable

15

ARM, FR. BRAKE (NOT AVAILABLE)

45410-128-670

Unavailable

15

ARM, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-141-000.

45410-128-670

Unavailable

16

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45411-086-000

Unavailable

17

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

18

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

19

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

19

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

19

JOINT A, BRAKE ARM

95015-31001

$1.53

20

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

20

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

21

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

22

OIL SEAL (21X35X7) This part replaces 90752-035-000.

90752-035-003

$6.41

22

OIL SEAL (21X35X7)

90752-035-003

$6.41

23

OIL SEAL (45X58X7) This part replaces 91251-001-020.

91251-001-023

Unavailable

23

OIL SEAL (45X58X7)

91251-001-023

Unavailable

24

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

24

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

25

NUT, CASTLE (10MM) This part replaces 94011-10000.

94011-10000-0S

Unavailable

25

NUT, CASTLE (10MM)

94011-10000-0S

Unavailable

26

PIN, COTTER (2.0X22)

94201-20220

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

BEARING, RADIAL BALL (6300) (NOT AVAILABLE)

96100-63000

Unavailable

28

BEARING, RADIAL BALL (6300U)

96140-63000

Unavailable

29

SPOKE A (12X162)

97351-21164-10

$3.21

29

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21
