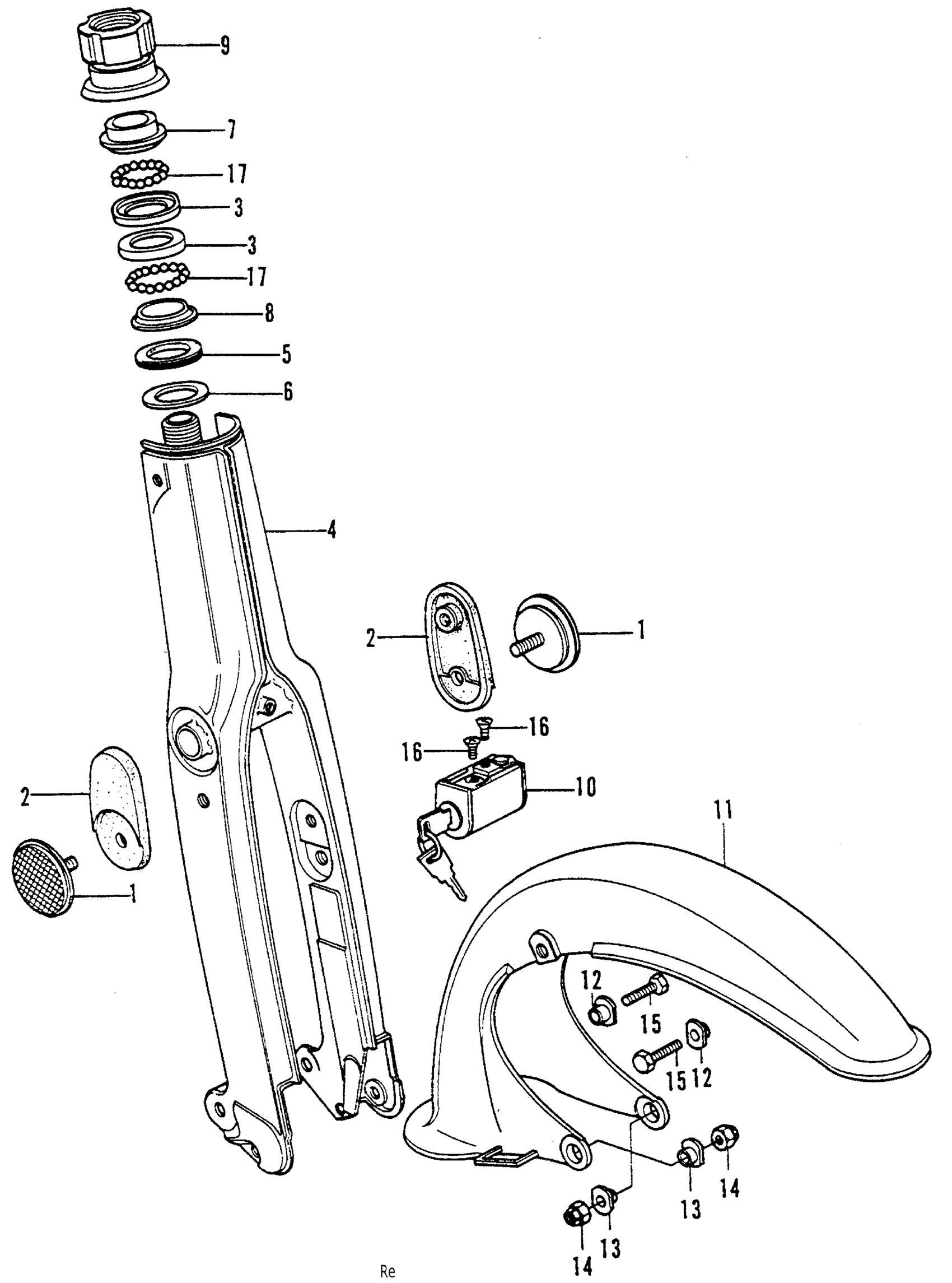

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$32.19

2

BASE, FR. REFLECTOR

33742-092-670

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.13

3

RACE, STEERING TOP BALL

50301-041-010

$11.13

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.13

4

FORK, FR. *PB12M* (STRATO BLUE METALLIC)

51100-092-670FB

Unavailable

4

FORK, FR. *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

51100-092-670FS

Unavailable

4

FORK, FR.

51100-092-670Z

Unavailable

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

6

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

7

RACE, STEERING CONE (UPPER)

53211-030-000

Unavailable

7

RACE, STEERING CONE (UPPER) This part replaces 53216-030-305.

53211-030-000

Unavailable

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.63

9

THREAD, STEERING HEAD TOP

53220-041-010

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

11

FENDER, FR. *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE)

61100-086-000FB

Unavailable

11

FENDER, FR. *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

61100-086-000FS

Unavailable

12

METAL, FR. FENDER FIXING (UPPER)

61117-041-010

Unavailable

13

METAL, FR. FENDER FIXING (LOWER) This part replaces 61142-001-000.

61142-001-010

$2.81

13

METAL, FR. FENDER FIXING (LOWER)

61142-001-010

$2.81

14

NUT, SELF-LOCK (8MM)

90349-001-000

$2.70

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

16

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$0.90

16

SCREW, FLAT (6X12)

93600-06012-0A

$0.90

17

BALL, STEEL (#6) (3/16)

96211-06000

$0.46
