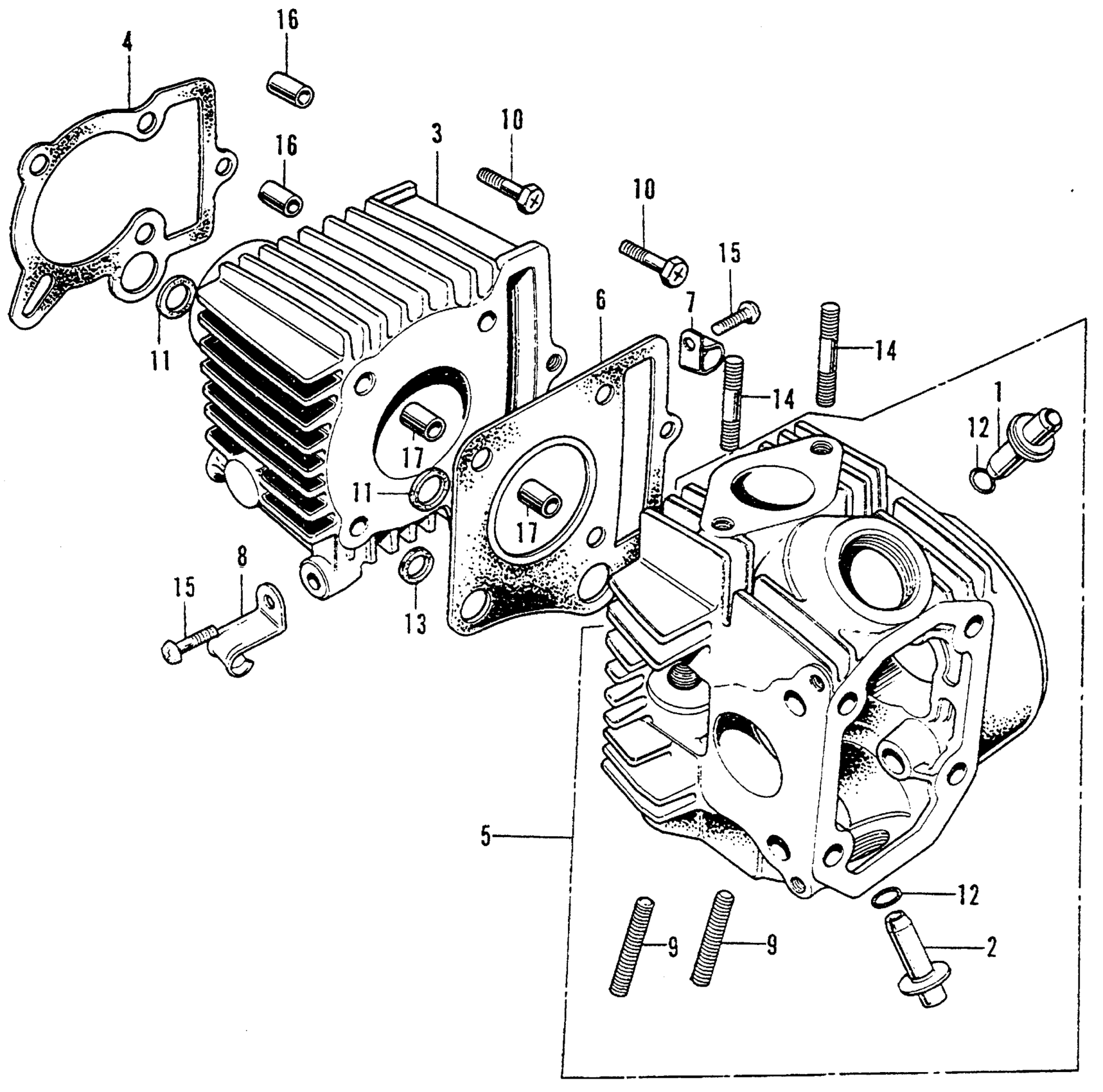

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-035-811.

12023-035-405

Unavailable

1

GUIDE, VALVE

12023-035-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-051-310.

12023-051-320

Unavailable

2

GUIDE, EX. VALVE

12023-051-320

Unavailable

3

CYLINDER

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-087-010.

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-098-670.

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-098-671.

12101-GB0-910

$212.90

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-035-020.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

5

CYLINDER HEAD This part replaces 12200-087-000.

12200-087-305

Unavailable

5

CYLINDER HEAD This part replaces 12200-087-010.

12200-087-305

Unavailable

6

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

7

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

8

CLIP, IGNITION CABLE

32906-061-000

$4.79

9

BOLT, STUD (6X32) This part replaces 90033-041-000.

90033-041-020

$2.25

9

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

9

BOLT, STUD (6X32)

90033-041-020

$2.25

10

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

10

BOLT (6MM)

90082-035-010

$2.39

11

GASKET, RUBBER (16MM)

91303-035-000

$4.87

12

O-RING (9.5X1.6)

91306-028-000

$2.92

13

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

13

GASKET, RUBBER (9MM)

91306-141-000

$4.65

14

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28)

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

15

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

15

SCREW, PAN (6X20)

93500-06020-0A

$1.49

16

PIN A, DOWEL (8X12)

94301-08120

$2.19

17

PIN A, DOWEL (8X14)

94301-08140

$2.25
