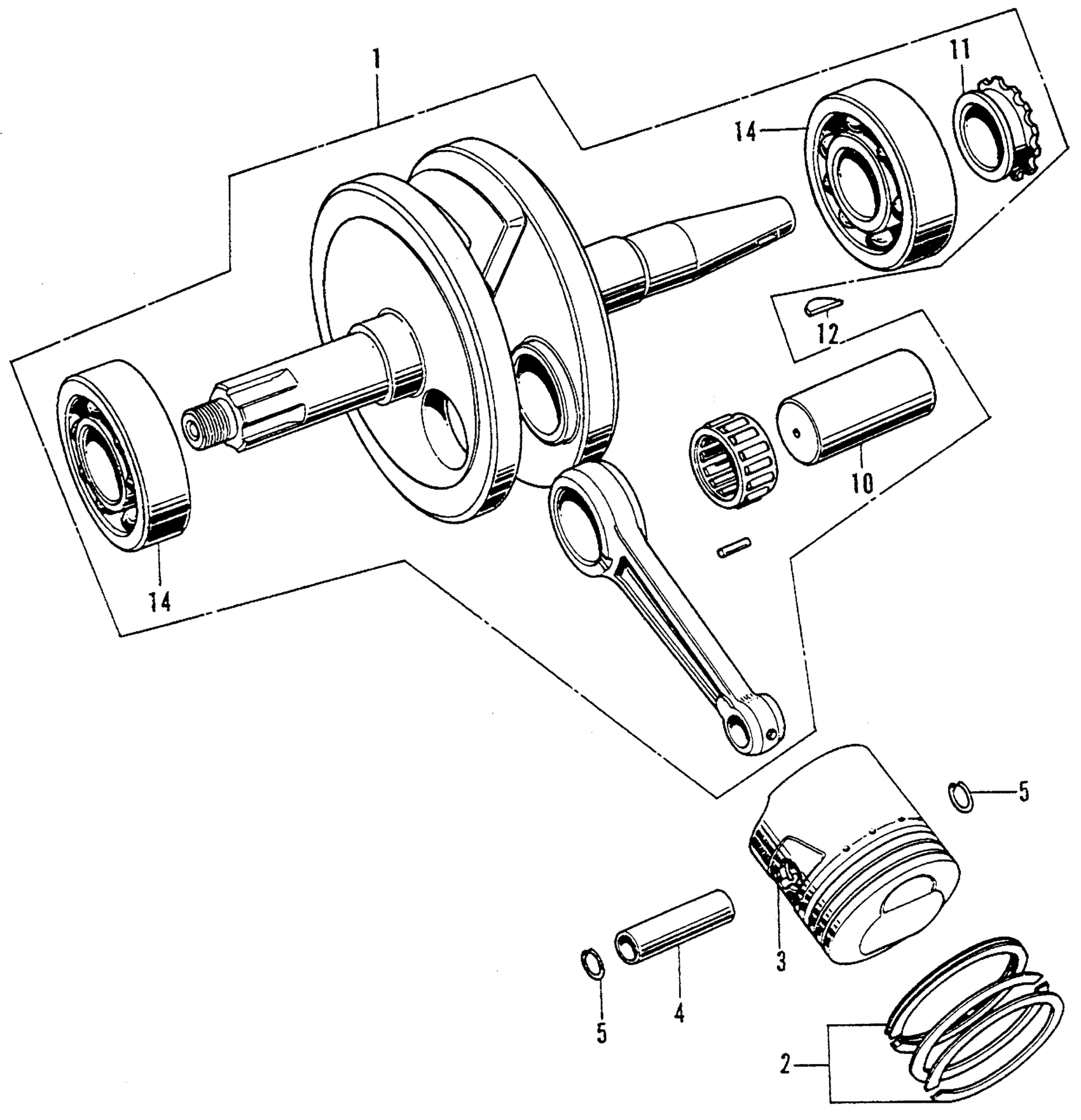

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE) | Use up to Engine SN 2010690 This part replaces 13000-087-790.

13000-087-791

Unavailable

1

CRANKSHAFT (NOT AVAILABLE)

13000-087-791

Unavailable

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-003.

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-004.

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-013.

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-014.

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON)

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13010-087-024.

13010-087-023

$40.20

2

RING SET, PISTON (STD) (NIPPON) This part replaces 13011-087-003.

13010-087-023

$40.20

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-003.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-004.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-013.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-014.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13020-087-024.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 13021-087-003.

13020-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-003.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-004.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-013.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-014.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13030-087-024.

13030-087-023

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 13031-087-003.

13030-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-003.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional). This part replaces 13040-087-013.

13040-087-023

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13040-087-023

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-003.

13050-087-023

$25.35

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-004.

13050-087-023

$25.35

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-013.

13050-087-023

$25.35

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-014.

13050-087-023

$25.35

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13050-087-023

$25.35

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13050-087-024.

13050-087-023

$25.35

3

PISTON (STD) This part replaces 13101-087-000.

13101-087-712

Unavailable

3

PISTON (STD)

13101-087-712

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-087-000.

13102-087-712

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-087-710.

13102-087-712

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-087-711.

13102-087-712

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-087-712

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-087-000.

13103-087-712

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-087-710.

13103-087-712

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-087-712

Unavailable

3

PISTON (0.75) | (Optional). This part replaces 13104-087-000.

13104-087-712

Unavailable

3

PISTON (0.75) | (Optional).

13104-087-712

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-087-000.

13105-087-712

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-087-710.

13105-087-712

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-087-711.

13105-087-712

Unavailable

3

PISTON (1.00) | (Optional).

13105-087-712

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

10

PIN, CRANK

13381-GB1-900

Unavailable

10

PIN, CRANK This part replaces 13381-035-010.

13381-GB1-900

Unavailable

10

PIN, CRANK This part replaces 13381-035-405.

13381-GB1-900

Unavailable

11

SPROCKET, TIMING (14T)

14311-035-000

$19.28

12

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 2010690 This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 2010690

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 2010690 This part replaces 90741-KM1-670.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 2010690 This part replaces 90741-003-000.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 2010690 This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

14

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

14

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
