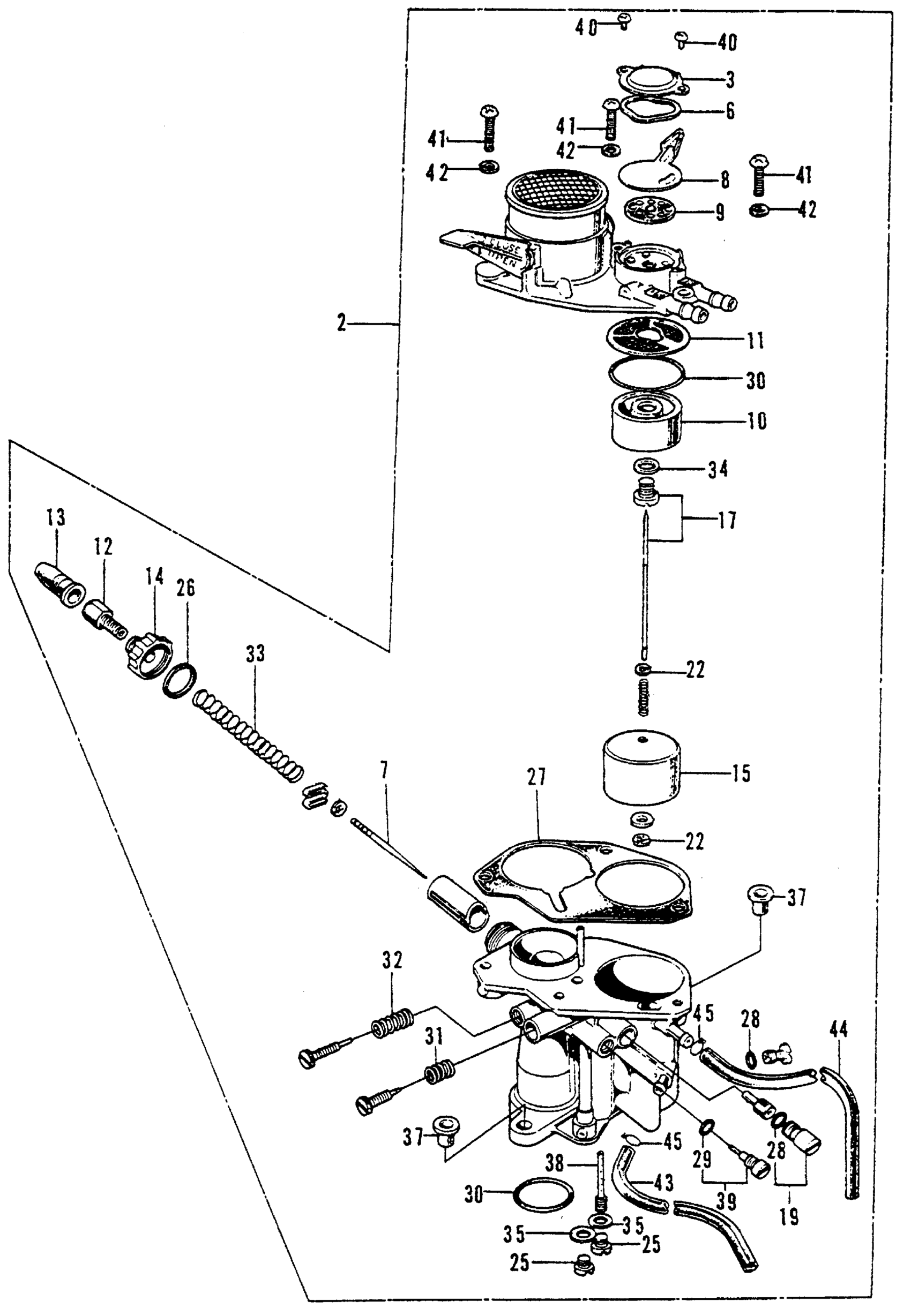

Honda C70K1A MOTORCYCLE, JPN, VIN# C70-2003703 CARBURETOR Diagram

#

Description
Price

2

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-092-000.

16100-092-305

Unavailable

2

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-092-010.

16100-092-305

Unavailable

2

CARBURETOR ASSY. (NOT AVAILABLE)

16100-092-305

Unavailable

3

COVER, VALVE (NOT AVAILABLE)

16111-001-004

Unavailable

6

WASHER, LEVER (NOT AVAILABLE)

16113-001-004

Unavailable

7

NEEDLE, JET (NOT AVAILABLE)

16151-001-004

Unavailable

8

LEVER, VALVE (NOT AVAILABLE)

16114-001-004

Unavailable

9

GASKET, VALVE

16115-001-004

$10.30

10

CAP, FUEL STRAINER

16116-001-004

Unavailable

11

SCREEN, FUEL STRAINER (NOT AVAILABLE)

16117-001-004

Unavailable

12

ADJUSTER, CABLE (NOT AVAILABLE) This part replaces 16118-040-004.

16118-217-004

Unavailable

12

ADJUSTER, CABLE (NOT AVAILABLE)

16118-217-004

Unavailable

13

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

TOP

16119-040-004

Unavailable

15

FLOAT (NOT AVAILABLE)

16122-001-004

Unavailable

17

VALVE SET, FLOAT (NOT AVAILABLE)

16125-040-004

Unavailable

19

HOLDER, NEEDLE JET

16139-040-004

Unavailable

22

CLIP, BAR

16157-259-004

$5.36

25

SCREW, PLUG

16164-259-004

Unavailable

26

WASHER, TOP (NOT AVAILABLE)

16171-040-004

Unavailable

27

GASKET, FLOAT CHAMBER (NOT AVAILABLE)

16172-040-014

Unavailable

28

O-RING (4.5MM)

16175-001-004

Unavailable

29

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

30

O-RING (23X2.4)

16176-001-004

Unavailable

31

SPRING, AIR SCREW (NOT AVAILABLE)

16181-001-004

Unavailable

32

SPRING, AIR SCREW (NOT AVAILABLE)

16181-250-004

Unavailable

33

SPRING, THROTTLE (NOT AVAILABLE)

16185-001-004

Unavailable

34

WASHER, FIBER (7.2X1.1)

16188-001-004

Unavailable

35

WASHER, FIBER (NOT AVAILABLE)

16188-040-004

Unavailable

37

RING, INSULATOR (NOT AVAILABLE)

16196-040-004

Unavailable

38

JET, MAIN (#68)

99114-040-0681

Unavailable

38

JET, MAIN (#70)

99114-040-0701

Unavailable

38

JET, MAIN (#72) (NOT AVAILABLE)

99114-040-0721

Unavailable

38

JET, MAIN (#75) (NOT AVAILABLE)

99114-040-0751

Unavailable

38

JET, MAIN (#78) (NOT AVAILABLE)

99114-040-0781

Unavailable

39

JET, SLOW (#38)

99124-041-0381

Unavailable

39

JET, SLOW (#40)

99124-041-0401

Unavailable

40

SCREW, PAN (3X6)

93500-03006-0A

$1.49

41

SCREW, PAN (5X16)

93500-05016-0A

$1.49

42

WASHER, SPRING (5MM)

94111-05000

$1.49

43

BULK HOSE, FUEL (3.5X3000) (3.5X270)

95001-35003-60M

$20.85

44

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

45

CLIP, TUBE (B7)

95002-02070

$1.80
