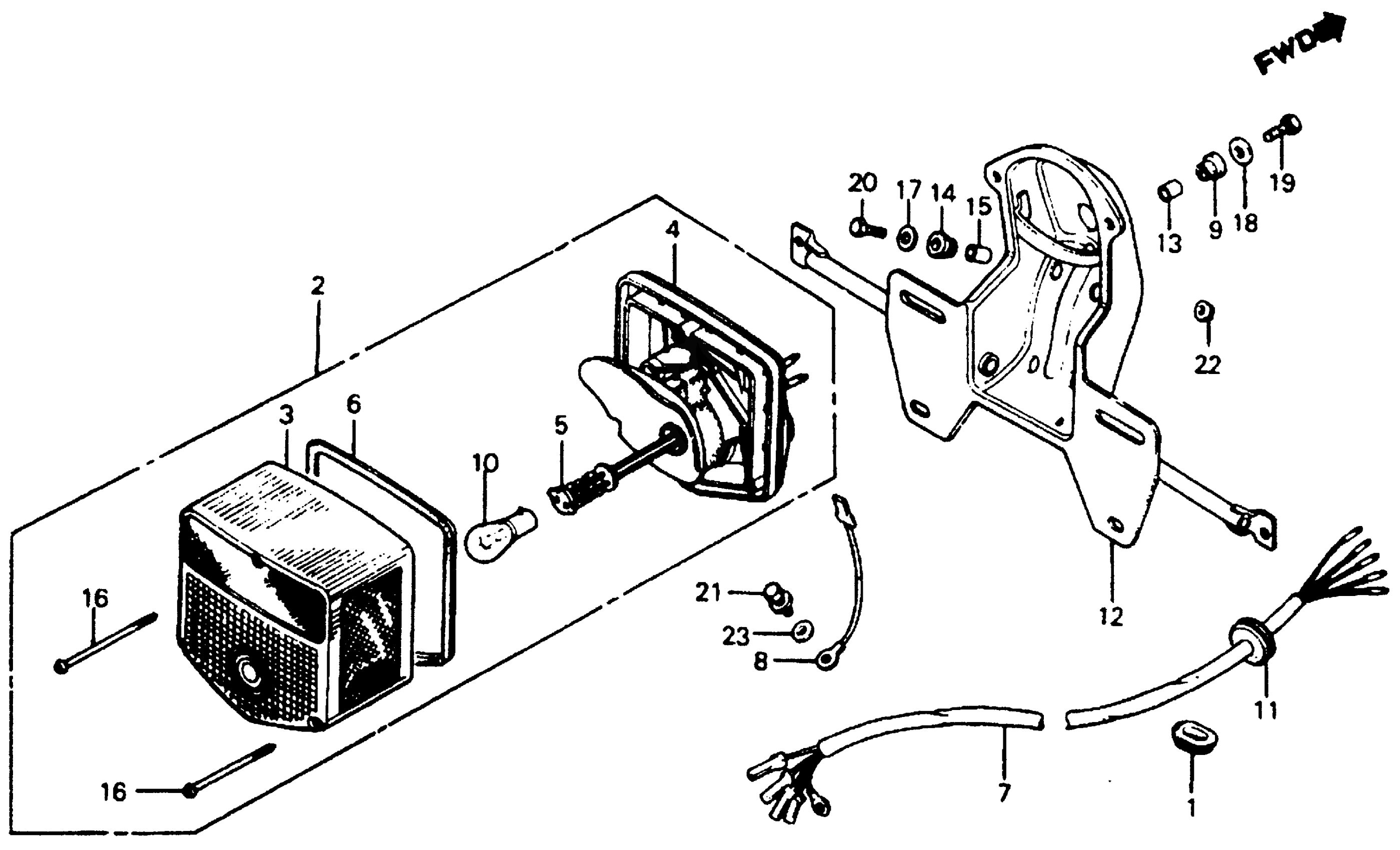

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 TAILLIGHT Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

TAILLIGHT UNIT (12V27/8W) (NOT AVAILABLE)

33701-413-751

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

SOCKET, TAILLIGHT

33703-126-721

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

SUB-WIRE, TAILLIGHT

33711-102-730

Unavailable

8

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

11

GROMMET B, METER CASE

66219-634-000

Unavailable

12

BRACKET, LICENSE PLATE (NOT AVAILABLE)

84700-GB5-670

Unavailable

13

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

14

RUBBER A, LICENSE BRACKET CUSHION

84905-459-670

$3.58

15

COLLAR, LICENSE BRACKET CUSHION

84907-174-670

Unavailable

16

SCREW, TAPPING (4X60)

90147-147-671

$2.70

17

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

18

WASHER (20MM)

90581-310-000

$1.90

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

21

BOLT-WASHER (6X12)

93401-06012-00

$1.55

21

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

21

BOLT-WASHER (6X12) This part replaces 93481-06012.

93401-06012-00

$1.55

21

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

22

NUT-WASHER (6MM)

94070-06080

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49
