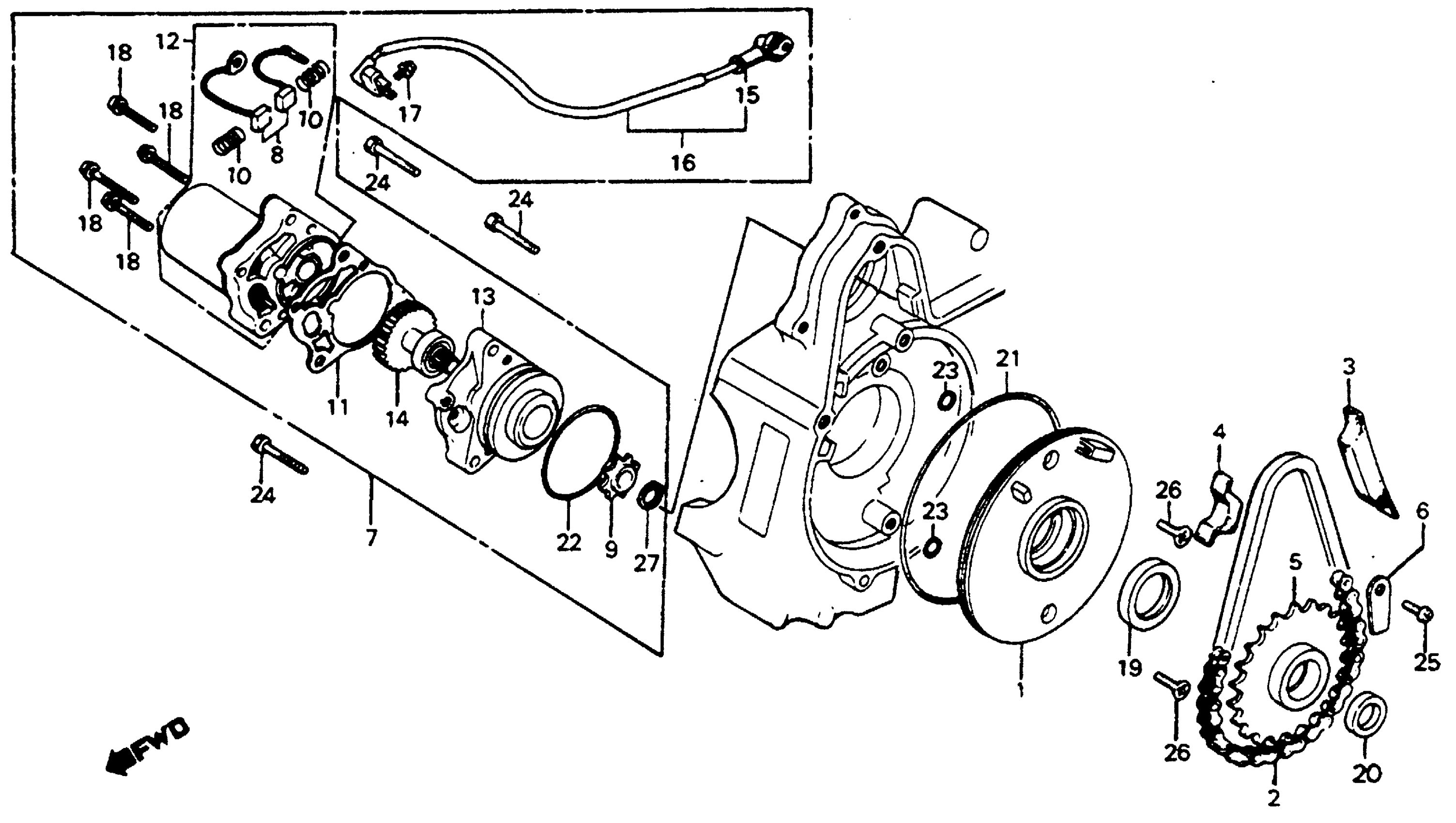

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 STARTER MOTOR Diagram

#

Description
Price

1

PLATE, OIL SEPARATOR

11321-179-710

$7.61

2

CHAIN, STARTER (TSUBAKIMOTO)

28101-GB4-702

Unavailable

3

GUIDE, STARTER CHAIN

28102-GB4-700

$23.20

4

PROTECTOR, STARTER CHAIN

28103-GB4-700

$19.92

5

SPROCKET, STARTER

28110-GB4-700

$103.13

6

PLATE, STARTER SPROCKET SETTING

28117-179-710

$6.08

7

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-GB4-701

Unavailable

8

BRUSH SET

31201-187-701

Unavailable

9

SPROCKET

31202-GB2-700

$31.25

10

SPRING, BRUSH

31204-187-701

$4.54

11

GASKET (NOT AVAILABLE)

31205-GB4-701

Unavailable

12

MOTOR (MITSUBA) (NOT AVAILABLE)

31208-GB4-701

Unavailable

13

CASE A, FR. (NOT AVAILABLE)

31211-GB4-701

Unavailable

14

GEAR, DRIVEN (MITSUBA)

31213-GB4-701

$103.41

15

COVER, TERMINAL

32136-659-000

$5.44

16

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-GB4-701

Unavailable

17

SCREW-WASHER (4X6)

45319-634-003

$2.48

18

SCREW-WASHER (5X30) This part replaces 90115-GB4-700.

93892-05030-08

$2.92

18

SCREW-WASHER (5X30)

93892-05030-08

$2.92

19

OIL SEAL (30X42X4.5) | Use up to Engine SN DS307433 This part replaces 91201-003-000.

91201-179-711

Unavailable

19

OIL SEAL (30X42X4.5) | Use up to Engine SN DS307433

91201-179-711

Unavailable

19

OIL SEAL (30X42X4.5) | Use from Engine SN DS307434

91201-GB4-691

$7.69

20

OIL SEAL (18.9X28X5) (NOK)

91202-GB4-691

Unavailable

20

OIL SEAL (18.9X28X5) (NOK) This part replaces 91202-GK4-731.

91202-GB4-691

Unavailable

20

OIL SEAL (18.9X28X5) (NOK) This part replaces 91202-179-711.

91202-GB4-691

Unavailable

21

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

21

O-RING (107X2)

91301-035-003

$7.05

22

O-RING A

91308-GB4-701

$4.64

23

O-RING (6X1.7)

91317-171-003

$2.92

23

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

24

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

24

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

24

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

25

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

25

SCREW, PAN (6X10)

93500-06010-0A

$1.49

26

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

27

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78
