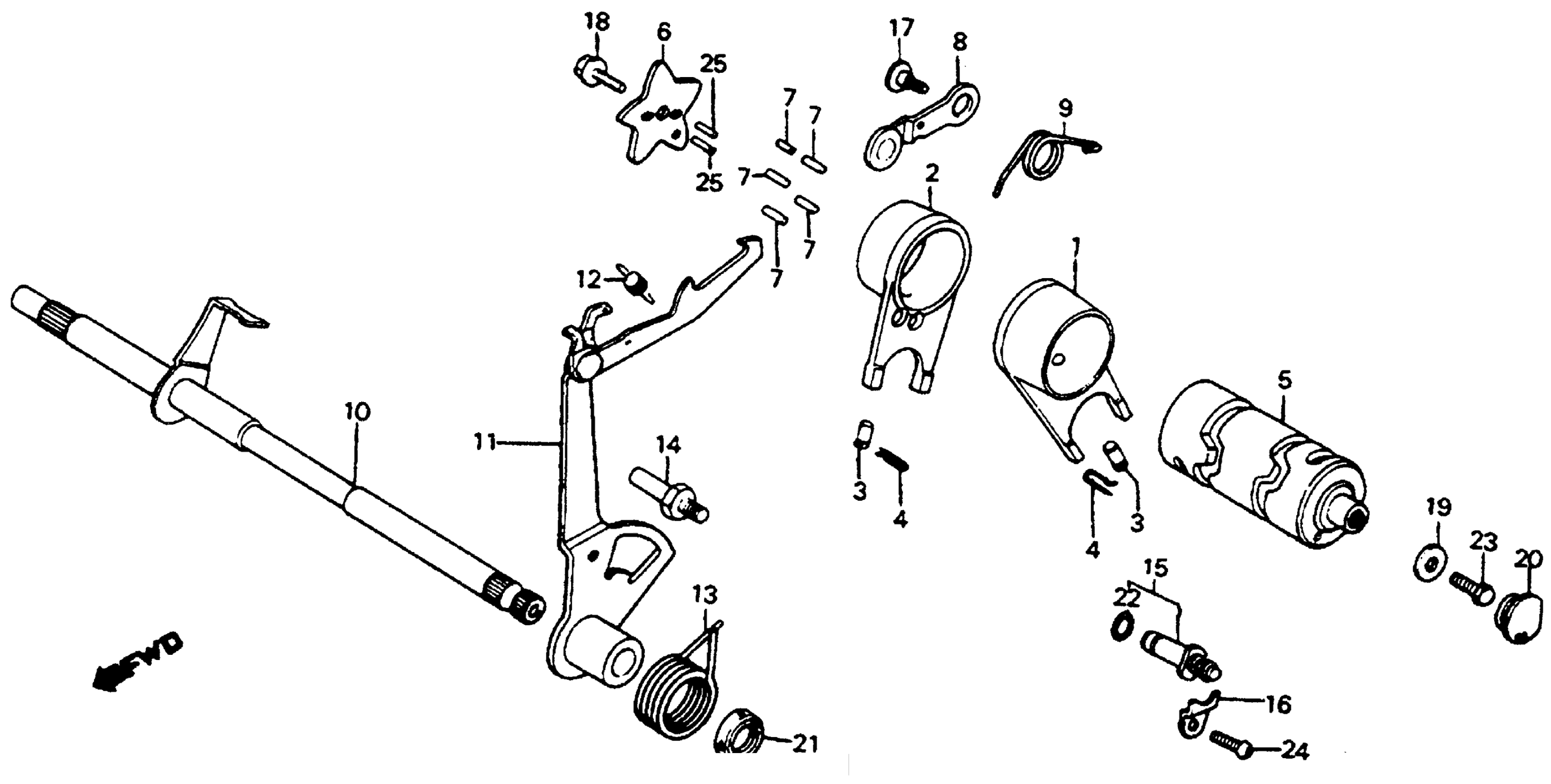

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, L. GEARSHIFT

24211-087-010

$70.77

2

FORK, R. GEARSHIFT

24221-041-010

$84.39

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-174-670

Unavailable

6

PLATE, GEARSHIFT DRUM STOPPER This part replaces 24411-041-050.

24411-041-060

$4.80

7

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

8

ARM, SHIFT DRUM STOPPER This part replaces 24430-GB5-670.

24430-GW8-710

$17.83

8

ARM, SHIFT DRUM STOPPER

24430-GW8-710

$17.83

8

ARM, SHIFT DRUM STOPPER This part replaces 24430-HB2-000.

24430-GW8-710

$17.83

9

SPRING, SHIFT DRUM STOPPER This part replaces 24435-GB5-670.

24435-GB5-671

$3.25

10

SPINDLE, GEARSHIFT

24610-092-670

$58.93

11

ARM, GEARSHIFT This part replaces 24630-GB4-600.

24630-GB4-602

$27.23

11

ARM, GEARSHIFT This part replaces 24630-GB4-601.

24630-GB4-602

$27.23

12

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

13

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

SWITCH ASSY., NEUTRAL (NOT AVAILABLE)

35600-174-671

Unavailable

16

PLATE, CONTACT FIXING

35755-001-020

Unavailable

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

BOLT, DOWEL (6MM)

90071-171-010

$2.39

19

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

20

PLUG, RUBBER (19MM)

90801-035-000

$2.92

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$4.06

21

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

22

O-RING (7X1.7)

91312-107-000

$3.18

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

ROLLER (3X8.5)

96220-30085

$1.49
