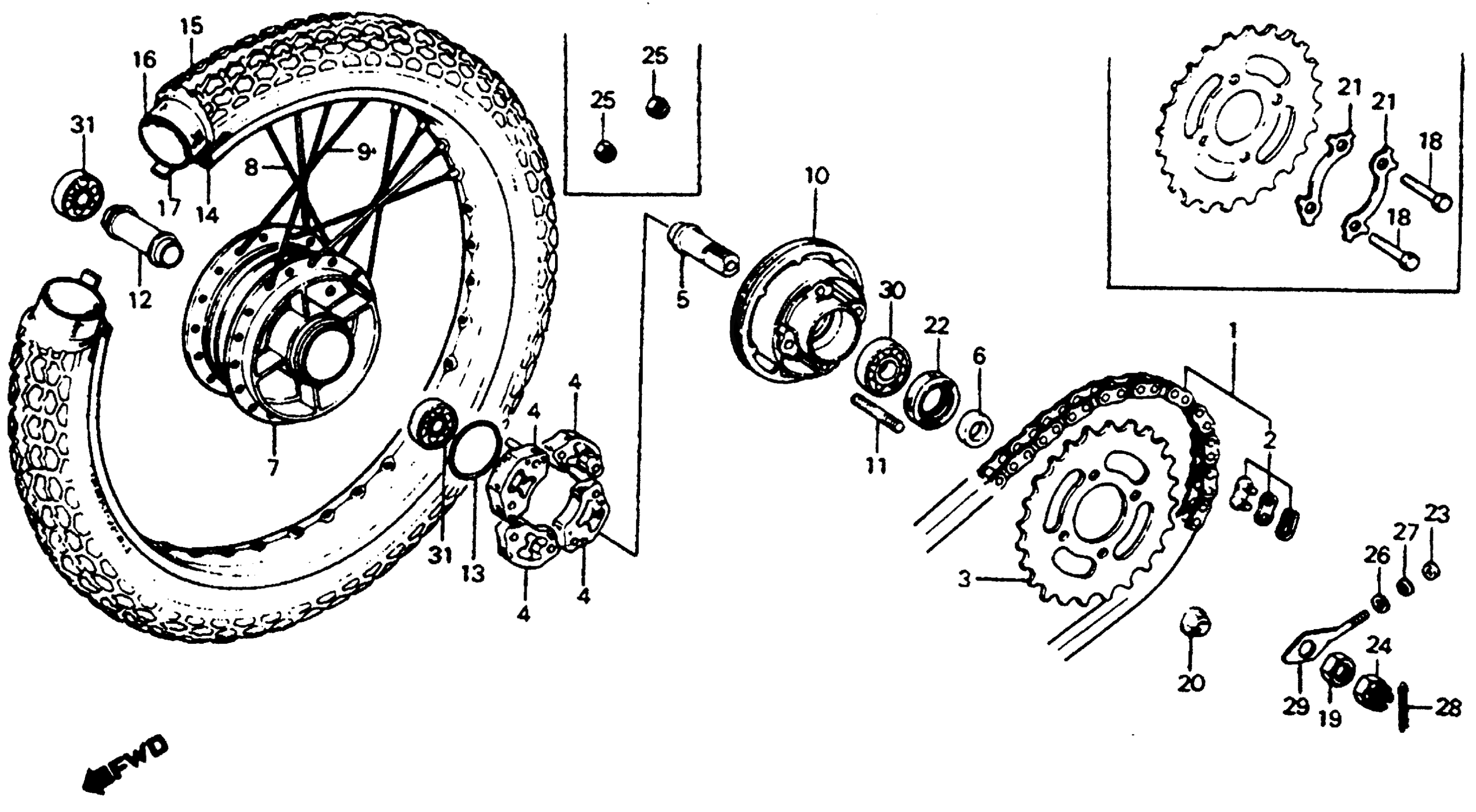

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-092-003.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-092-015.

405W3-179-505

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.49

2

MASTER LINK (DAIDO)

40531-098-003

$3.49

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.49

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.49

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.49

3

SPROCKET, FINAL DRIVEN (36T) This part replaces 41201-GB5-760.

41201-GB5-810

Unavailable

4

DAMPER, RR. WHEEL | Use up to Frame SN DS300163

41241-001-050

$6.80

4

DAMPER, RR. WHEEL | Use from Frame SN DS300164

41241-GB4-770

Unavailable

5

SLEEVE, RR. WHEEL AXLE

42303-041-000

$14.33

6

COLLAR, RR. WHEEL AXLE SLEEVE (NOT AVAILABLE)

42304-029-000

Unavailable

7

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42601-GB4-000ZA

Unavailable

8

SPOKE B (160X10)

42605-171-305

Unavailable

9

SPOKE B (160.5X10)

42606-171-305

Unavailable

10

FLANGE, FINAL DRIVEN

42610-GB6-760

Unavailable

11

BOLT, STUD (8X38.2)

42615-GB6-760

Unavailable

12

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

13

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.17

14

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$70.29

14

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$70.29

15

TIRE, RR. (2.50-17) (6PR) (INOUE)

42711-174-671

Unavailable

15

TIRE, RR. (2.50-17) (6PR) (BS)

42711-174-672

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-044-000.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-044-601.

42712-041-154

Unavailable

16

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

17

FLAP, TIRE (17) (BS) (NOT AVAILABLE)

42713-001-003

Unavailable

17

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.08

17

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-006.

42713-102-005

$6.08

17

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-009.

42713-102-005

$6.08

17

FLAP, TIRE (17) (INOUE) This part replaces 44713-200-000.

42713-102-005

$6.08

19

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

20

NUT, HEX. (8MM)

90309-357-000

$3.16

22

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$7.77

22

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-682.

90753-GK4-003

$7.77

22

OIL SEAL (27X40X6)

90753-GK4-003

$7.77

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

23

NUT, HEX. (6MM)

94001-06200-0S

$1.19

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

24

NUT, CASTLE (12MM)

94011-12000-0S

$1.41

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

WASHER, SPRING (6MM)

94111-06000

$0.86

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

28

PIN, COTTER (3.0X45)

94201-30450

$0.94

29

ADJUSTER, L. CHAIN

95014-10020

$5.15

30

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$7.82

30

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82

31

BEARING, RADIAL BALL (6301U)

96140-63010-10

$13.32
