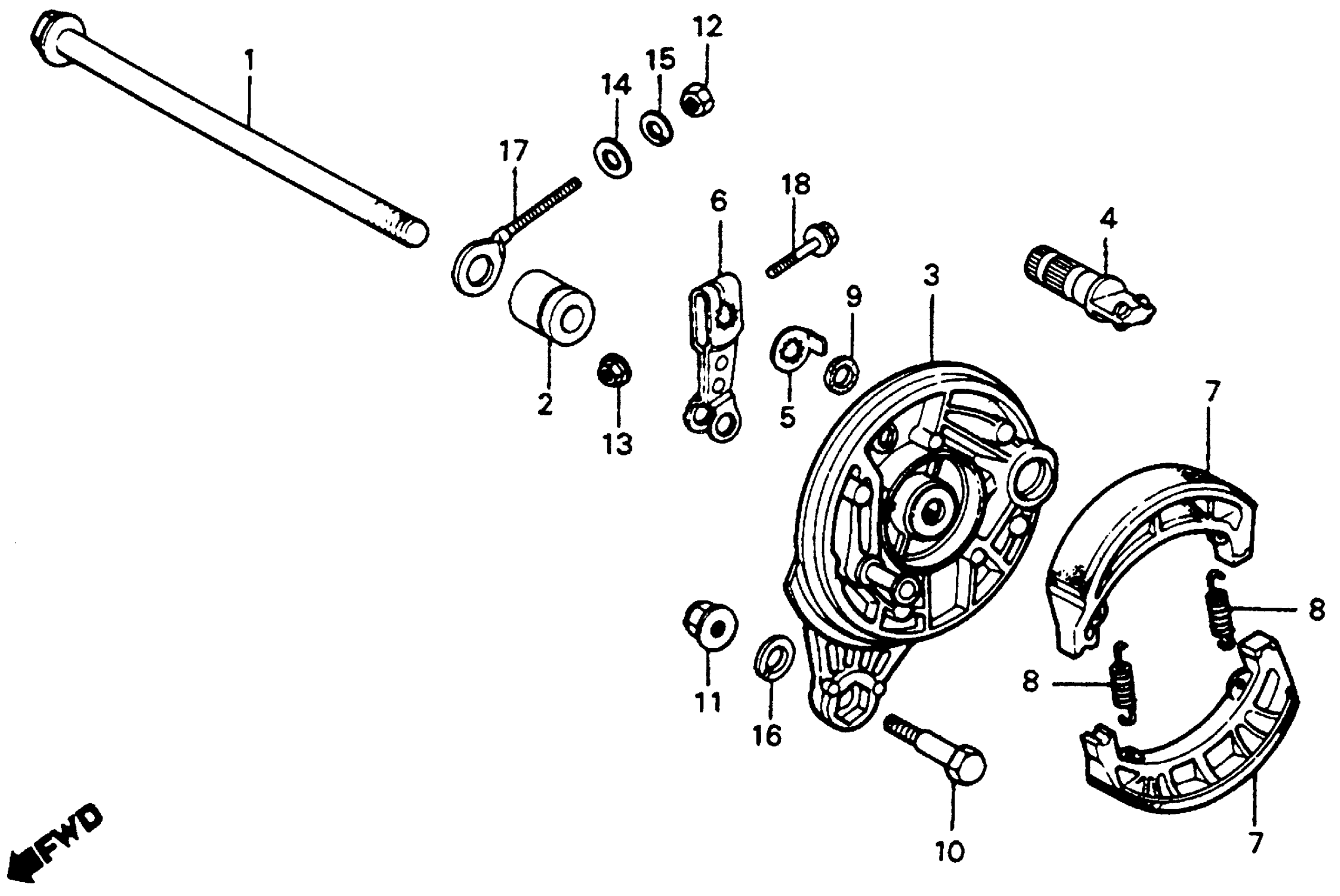

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

1

AXLE, RR. WHEEL

42301-121-760

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE

42313-GBJ-000

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE This part replaces 42313-041-000.

42313-GBJ-000

Unavailable

3

PANEL, RR. BRAKE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

43100-GB4-000ZA

Unavailable

4

CAM, RR. BRAKE

43141-400-010

$23.52

5

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-096-700

Unavailable

6

ARM, RR. BRAKE

43410-086-720

Unavailable

7

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

7

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

8

SPRING, BRAKE SHOE

45133-028-000

$2.03

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE)

90127-GB4-000

Unavailable

11

NUT, FLANGE (8MM)

90309-428-731

$3.35

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, FLANGE (6MM)

94050-06000

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

WASHER, SPRING (8MM)

94111-10000

$1.49

17

ADJUSTER S, R. CHAIN

95014-10010

$4.53

18

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

18

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
