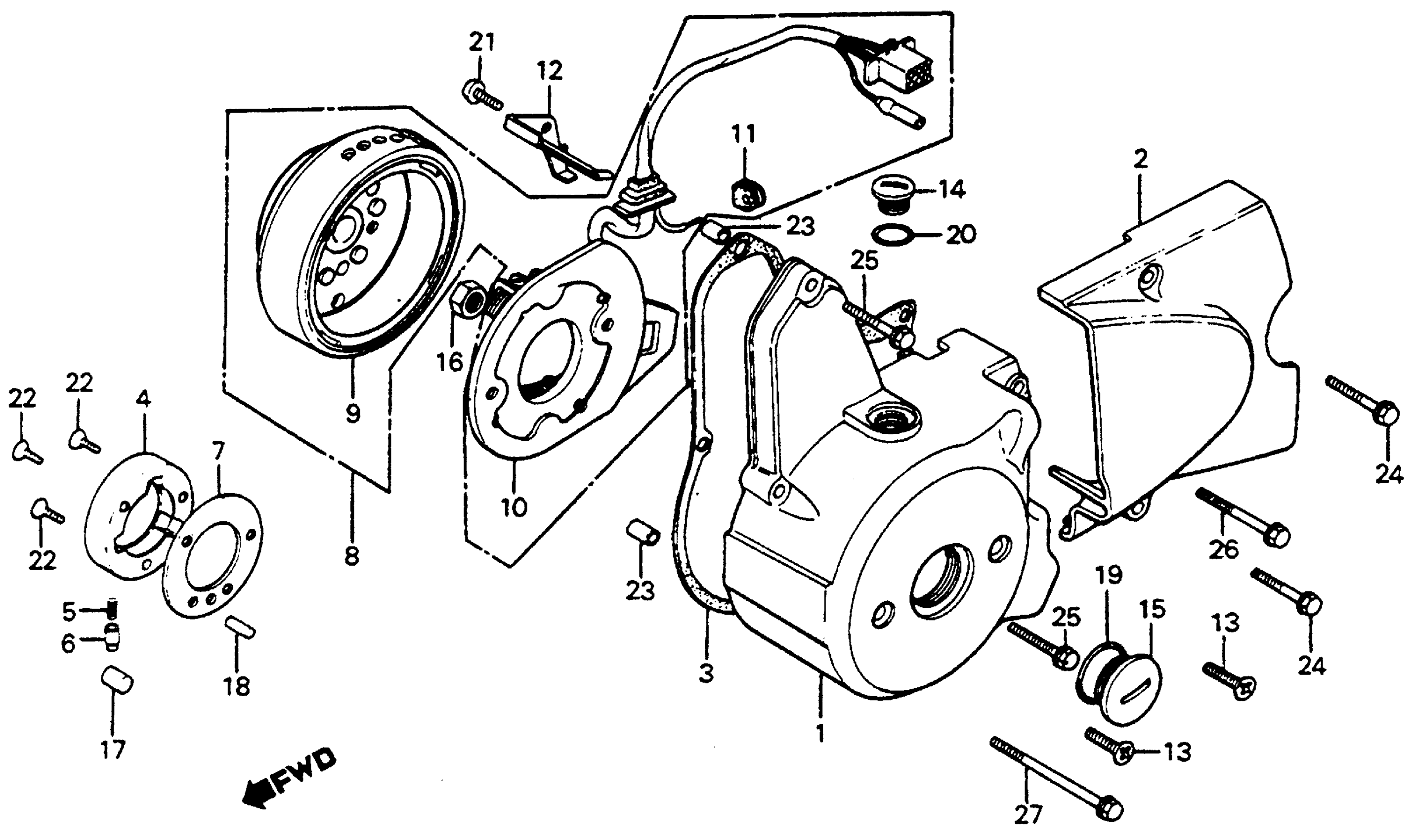

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-GB4-700

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11360-GB4-700

Unavailable

3

GASKET, L. This part replaces 11395-GB4-700.

11395-GB4-306

Unavailable

4

CLUTCH, STARTER (OUTER)

28120-179-710

$93.32

5

SPRING, STARTER CLUTCH ROLLER

28125-179-710

$2.42

6

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.20

7

PLATE, STARTING CLUTCH SIDE

28128-179-710

$11.96

8

ALTERNATOR, FLYWHEEL TYPE (HITACHI) (NOT AVAILABLE)

31100-GB5-671

Unavailable

9

FLYWHEEL (HITACHI)

31110-GB5-671

Unavailable

10

STATOR (HITACHI) (NOT AVAILABLE)

31120-GB5-671

Unavailable

11

GROMMET, NEUTRAL SWITCH CABLE (NOT AVAILABLE) This part replaces 32956-179-700.

32956-179-710

Unavailable

11

GROMMET, NEUTRAL SWITCH CABLE (NOT AVAILABLE)

32956-179-710

Unavailable

12

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32961-GB4-700

Unavailable

13

SCREW, OVAL (6X20) (NOT AVAILABLE)

90080-GB2-003

Unavailable

14

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

14

CAP, ALTERNATOR

90084-471-000

Unavailable

15

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

16

NUT, HEX. (10MM)

90308-357-000

$4.53

17

ROLLER (10X10)

91101-179-710

$3.86

18

ROLLER (5X11.8)

91102-179-711

$2.41

19

O-RING (27X2.0)

91301-028-000

$2.80

19

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.80

19

O-RING (27X2.0)

91305-KF0-003

$2.80

20

O-RING (13.8X2.5)

91303-MG7-003

$2.90

20

O-RING (13.8X2.5)

91303-377-000

$3.18

20

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$2.90

21

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.04

21

SCREW, PAN (6X16)

93500-06016-0A

$1.04

22

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

23

PIN A, DOWEL (8X12)

94301-08120

$2.09

24

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

24

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.28

25

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

26

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$1.97

26

BOLT, FLANGE (6X50)

96001-06050-00

$1.97

27

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.78

27

BOLT, FLANGE (6X70)

96001-06070-00

$1.78
