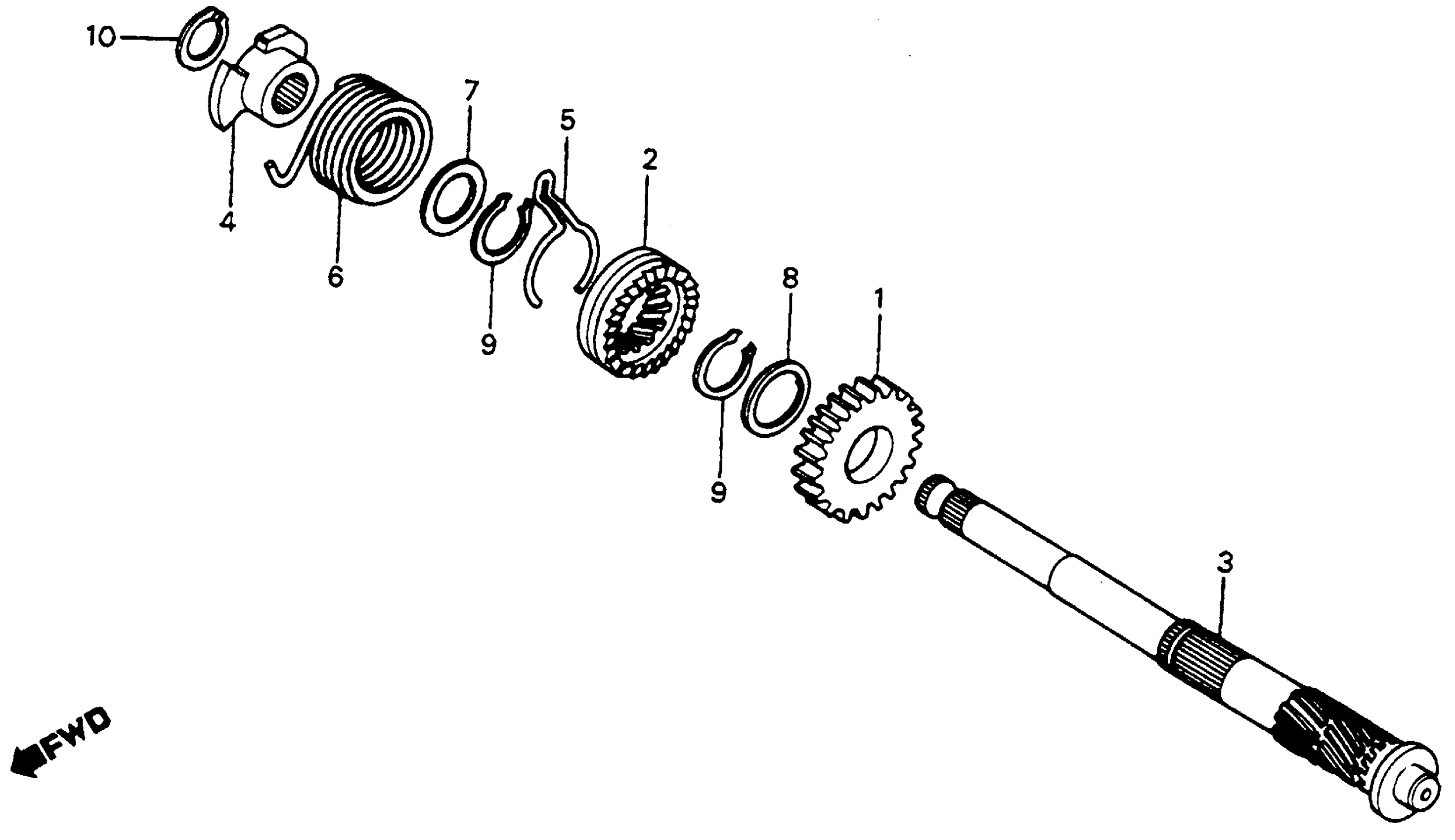

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 KICK STARTER Diagram

#

Description

Price

1

PINION, KICK STARTER (21T)

28211-086-700

$76.37

2

RATCHET, STARTER DRIVE

28221-086-700

$52.25

3

SPINDLE, KICK STARTER

28251-086-701

$87.39

4

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

4

RETAINER, KICK SPRING

28262-041-731

$16.77

5

SPRING, STARTER PINION FRICTION

28271-121-690

$4.17

6

SPRING, KICK STARTER (CHUO HATSUJO)

28281-035-018

$10.10

7

WASHER (17MM)

90452-115-000

$2.20

8

WASHER, THRUST (20MM)

90454-107-000

$1.80

9

SET-RING (20MM)

90605-200-000

$2.92

10

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49
