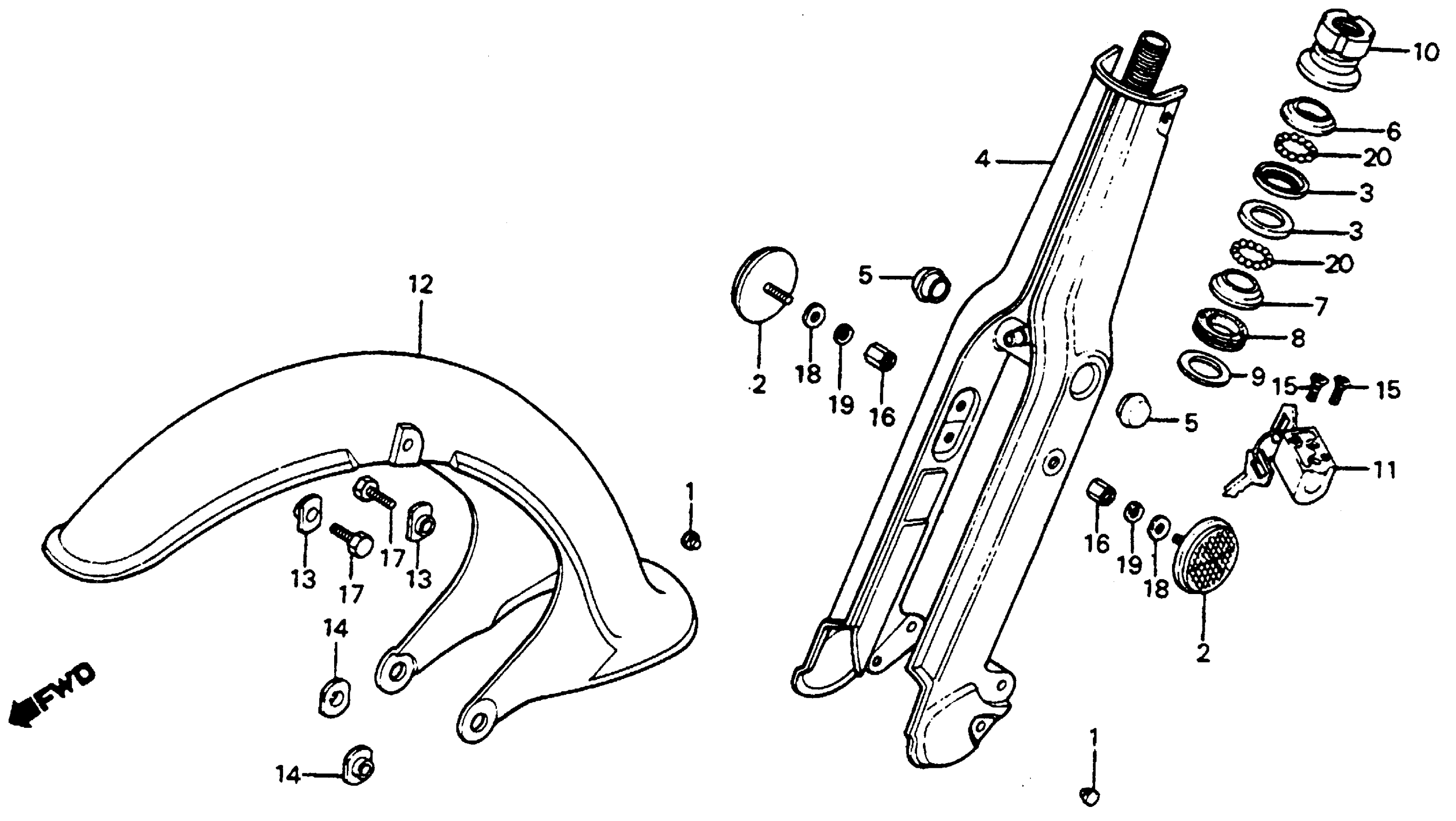

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

GROMMET B, RR. TURN SIGNAL WIRE

33666-053-000

$2.92

2

REFLECTOR, FR. REFLEX (NOT AVAILABLE)

33741-179-003

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

FORK, FR. *R110* (MONZA RED) This part replaces 51100-GB4-000ZJ.

51100-GB4-305YC

Unavailable

4

FORK, FR. *R110* (MONZA RED) This part replaces 51100-GB4-010ZJ.

51100-GB4-305YC

Unavailable

4

FORK, FR. *R110* (MONZA RED)

51100-GB4-305YC

Unavailable

4

FORK, FR. *PB121MS* This part replaces 51100-GB4-000ZR.

51100-GB4-315ZV

Unavailable

4

FORK, FR. *NH44MS* (SPECIAL SILVER METALLIC) This part replaces 51100-GB4-000ZT.

51100-GB4-305ZW

Unavailable

4

FORK, FR. *NH44MS* (SPECIAL SILVER METALLIC)

51100-GB4-305ZW

Unavailable

5

CAP, FORK SIDE *NH24* (CERAMIC WHITE) This part replaces 51341-001-000WF.

51341-001-000ZD

Unavailable

5

CAP, FORK SIDE *NH24* (CERAMIC WHITE)

51341-001-000ZD

Unavailable

6

RACE, STEERING CONE (UPPER)

53211-030-000

Unavailable

7

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

9

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

10

THREAD, STEERING HEAD TOP

53220-041-010

Unavailable

11

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

12

FENDER, FR. *R110* (MONZA RED)

61100-086-000ZN

Unavailable

12

FENDER, FR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61100-086-000YB

Unavailable

12

FENDER, FR. *PB121MS* (SHUTTLE BLUE METALLIC-S) (NOT AVAILABLE)

61100-086-000YC

Unavailable

13

METAL, FR. FENDER FIXING (UPPER)

61117-041-010

Unavailable

14

METAL, FR. FENDER FIXING (LOWER)

61142-001-010

$3.03

15

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

16

NUT, LOCK (6MM) (NOT AVAILABLE)

90301-086-000

$2.39

17

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
