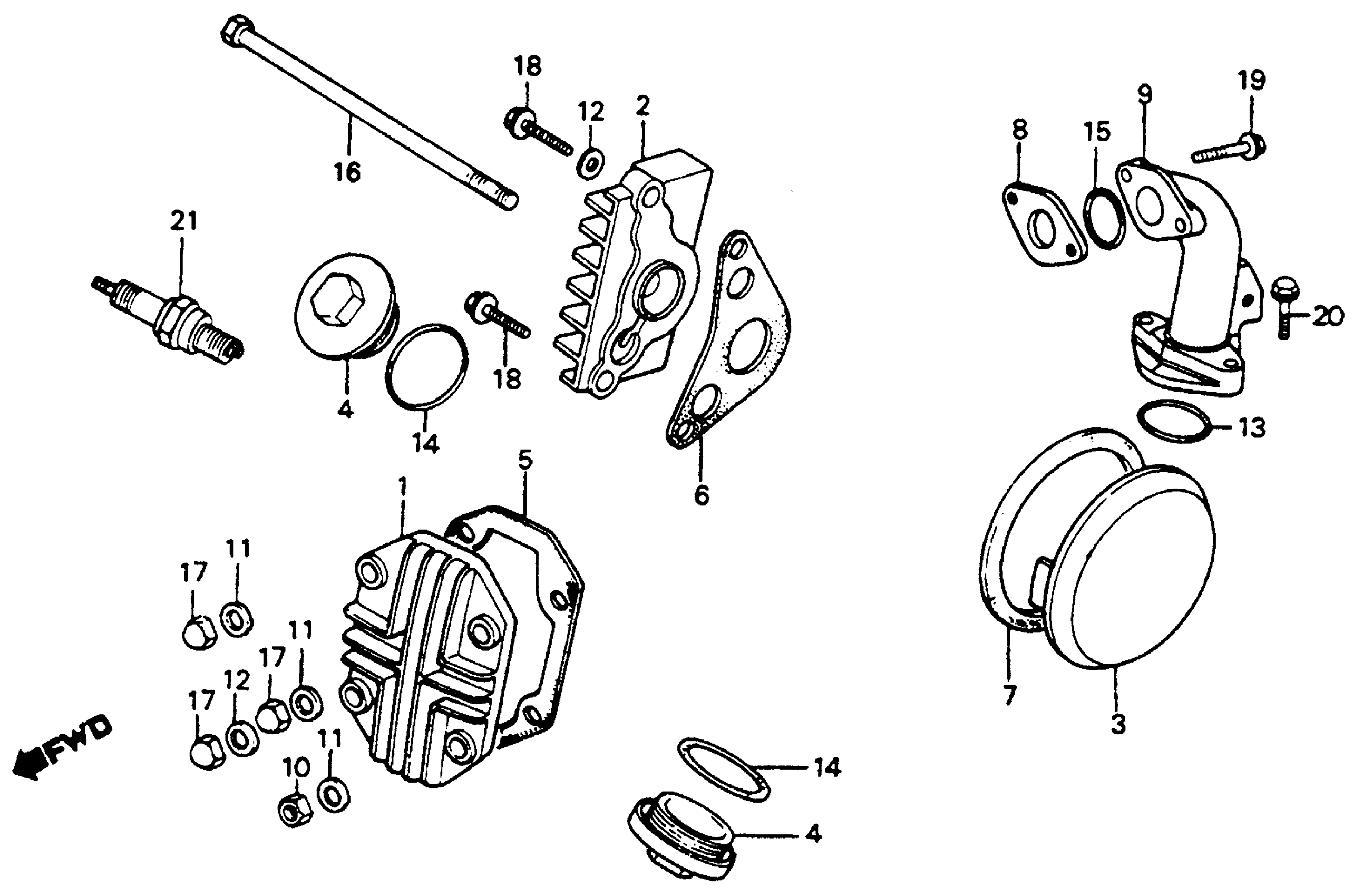

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12301-086-000

$28.23

2

COVER, R. CYLINDER HEAD SIDE

12331-GB0-910

$29.36

3

COVER, L. CYLINDER HEAD SIDE

12341-040-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GB2-003.

12391-KVM-C20

$4.15

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GB2-306.

12391-KVM-C20

$4.15

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680.

12391-KVM-C20

$4.15

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GB0-910.

12394-GW8-682

$4.17

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GB4-306.

12394-GW8-682

$4.17

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GB4-680.

12394-GW8-682

$4.17

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-680.

12394-GW8-682

$4.17

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GB2-000.

12395-GW8-682

$4.94

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GB2-003.

12395-GW8-682

$4.94

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GB2-306.

12395-GW8-682

$4.94

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680.

12395-GW8-682

$4.94

8

INSULATOR, CARBURETOR This part replaces 16212-GB0-910.

16212-GB0-911

Unavailable

8

INSULATOR, CARBURETOR

16212-GB0-911

Unavailable

9

PIPE, INLET (NOT AVAILABLE)

17111-GB5-670

Unavailable

10

NUT, HEX. (6MM)

90230-087-000

$1.80

11

WASHER, SEALING (6MM)

90442-035-000

$2.21

12

WASHER A, SEALING (6MM)

90443-035-000

$3.65

13

O-RING (27X2.0)

91301-028-000

$2.92

13

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

13

O-RING (27X2.0)

91305-KF0-003

$2.92

14

O-RING (30.8MM)

91302-001-020

$3.75

15

O-RING (20.6X1.9)

91304-GB0-910

$3.77

16

BOLT, HEX. (6X111) This part replaces 92000-06111.

92101-06111-0A

Unavailable

16

BOLT, HEX. (6X111) This part replaces 92000-06111-0A.

92101-06111-0A

Unavailable

16

BOLT, HEX. (6X111)

92101-06111-0A

Unavailable

17

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

17

NUT, CAP (6MM)

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

18

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

18

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

19

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

20

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

21

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.62

21

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

21

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.62

21

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

21

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.62

21

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
