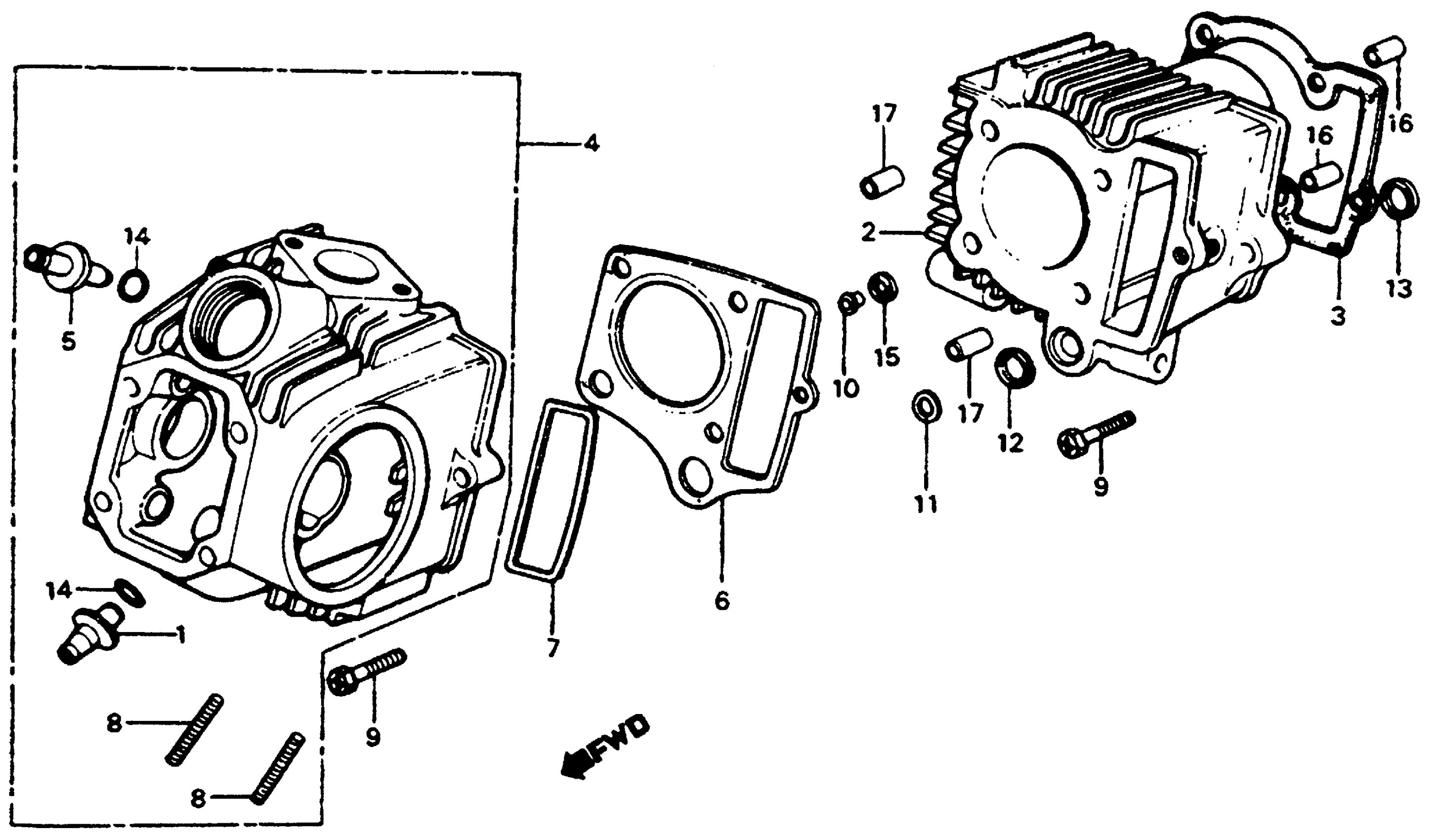

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, EX. VALVE

12023-051-330

Unavailable

1

GUIDE, EX. VALVE This part replaces 12245-051-305.

12023-051-330

Unavailable

2

CYLINDER

12101-GB0-910

$212.90

3

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

4

CYLINDER HEAD This part replaces 12200-GB1-901.

12200-GB1-902

Unavailable

4

CYLINDER HEAD

12200-GB1-902

Unavailable

5

GUIDE, IN VALVE This part replaces 12231-178-315.

12231-178-405

Unavailable

5

GUIDE, IN VALVE

12231-178-405

Unavailable

5

GUIDE, IN VALVE This part replaces 12237-178-305.

12231-178-405

Unavailable

6

GASKET, CYLINDER HEAD

12251-GB0-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-GB0-911.

12251-GB0-306

Unavailable

7

SEAL, CAM CHAIN CHAMBER

12255-GB0-911

Unavailable

8

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM)

90082-035-010

$2.39

10

COLLAR (9.5MM) This part replaces 90602-GB0-910.

90602-GB0-911

Unavailable

10

COLLAR (9.5MM)

90602-GB0-911

Unavailable

11

COLLAR (14.8MM) This part replaces 90603-GB0-910.

90603-GB0-911

$3.10

11

COLLAR (14.8MM)

90603-GB0-911

$3.10

12

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

12

O-RING (14.5MM)

91301-GF6-003

$6.69

13

GASKET, RUBBER (16MM)

91303-035-000

$4.87

14

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

14

O-RING (9X1.6)

91305-028-900

$2.92

15

GASKET, RUBBER (9MM)

91306-141-000

$4.65

16

PIN A, DOWEL (8X12)

94301-08120

$2.19

17

PIN A, DOWEL (8X14)

94301-08140

$2.25
