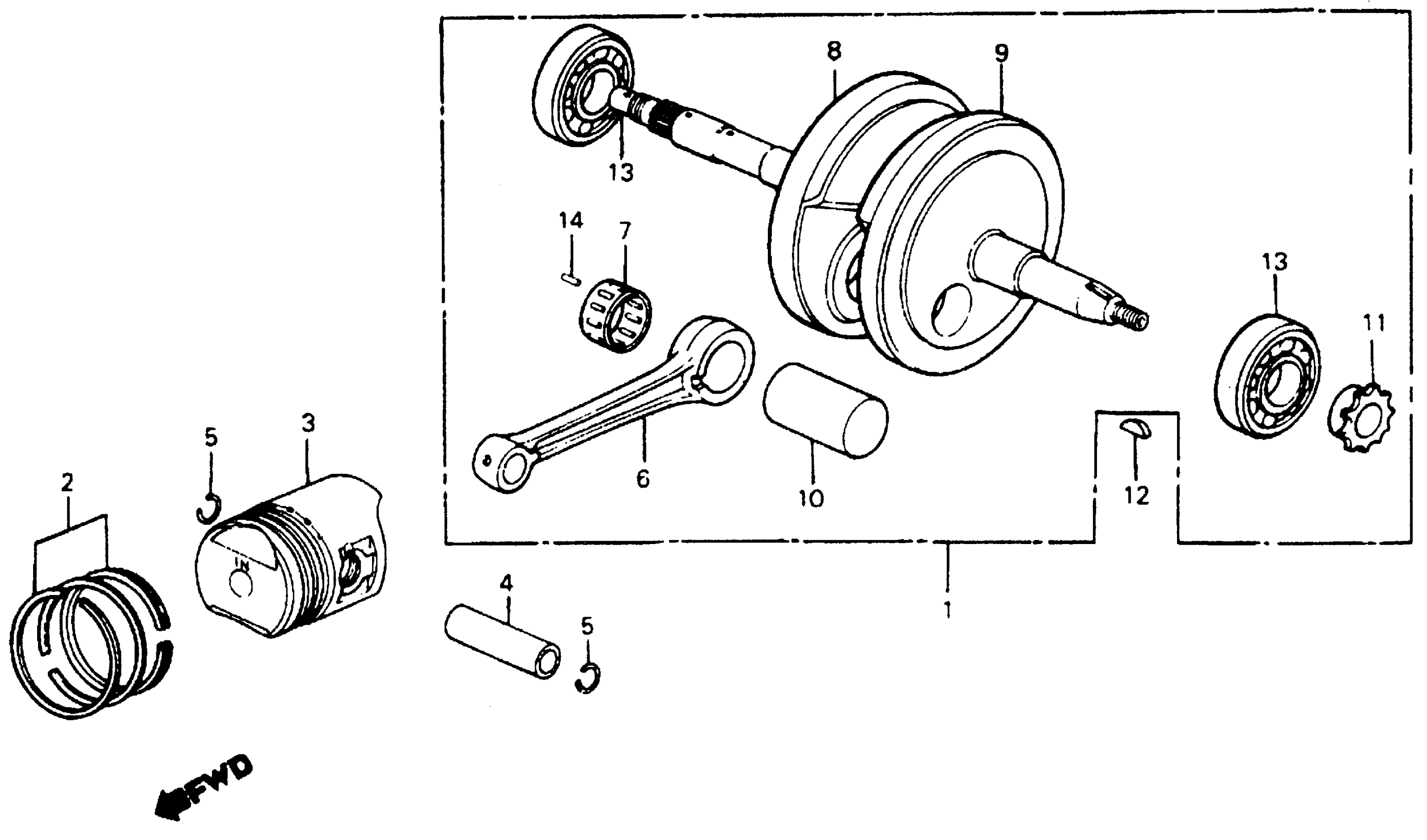

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-GB5-670

Unavailable

2

RING SET, PISTON (STD) (RIKEN)

13011-126-751

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-126-752.

13011-126-751

Unavailable

2

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional).

13021-126-751

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13021-126-752

Unavailable

2

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional).

13031-126-751

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13031-126-752

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-126-751

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13041-126-752

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-126-751

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) | (Optional).

13051-126-752

Unavailable

3

PISTON (STD)

13101-126-750

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-126-750

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-126-750

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-126-750

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-126-750

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-GB2-300

Unavailable

7

BEARING, CONNECTING ROD

13211-035-000

Unavailable

8

CRANKSHAFT, R.

13311-GB3-710

Unavailable

9

CRANKSHAFT, L.

13321-GB2-300

Unavailable

10

PIN, CRANK

13381-GB1-900

Unavailable

10

PIN, CRANK This part replaces 13381-178-300.

13381-GB1-900

Unavailable

11

SPROCKET, TIMING (14T)

14311-035-000

$19.28

12

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

12

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

13

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

13

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

14

ROLLER, ROD (2.5X10)

91101-001-030

$2.92
