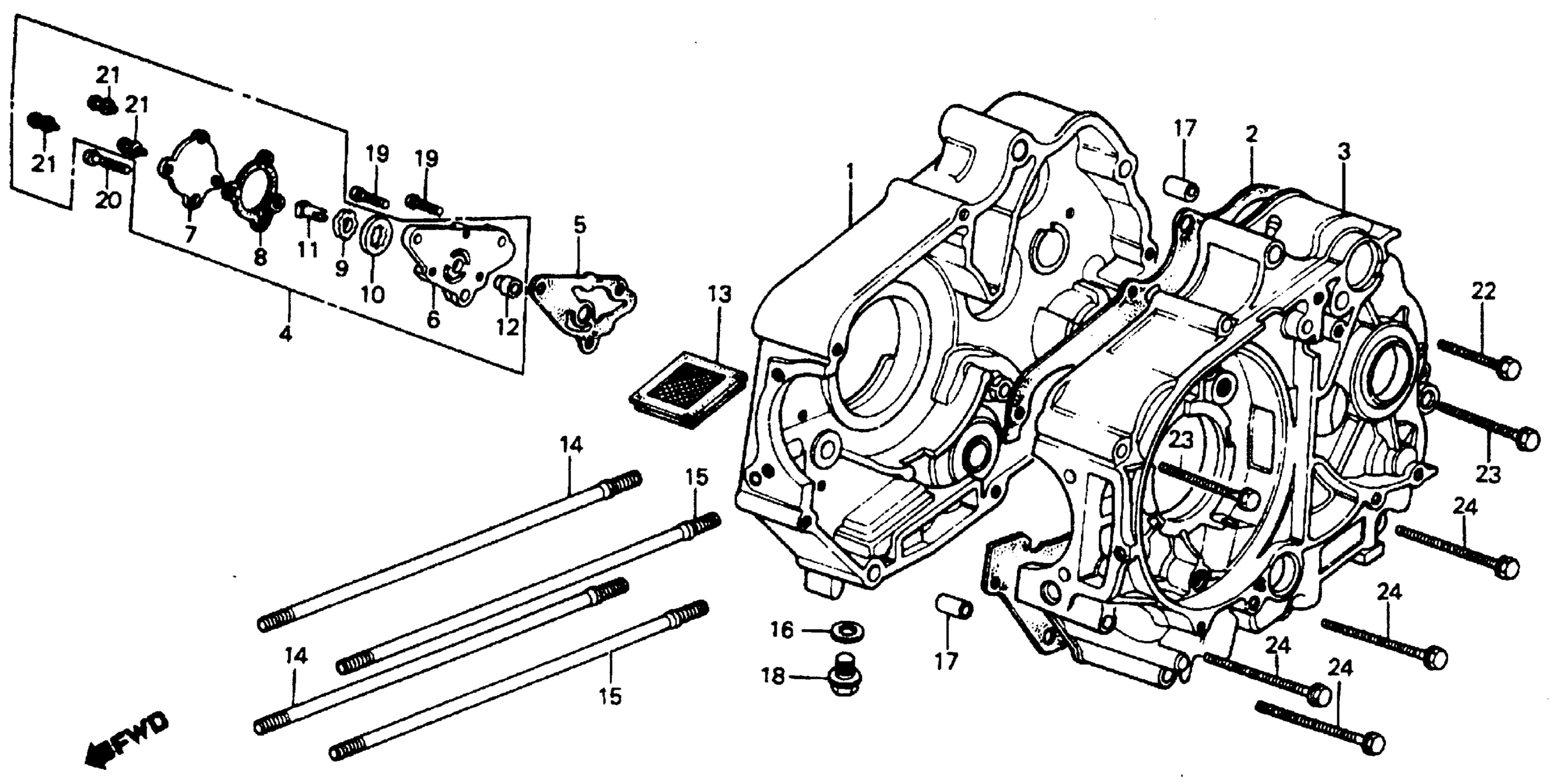

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-GB4-000.

11100-GEL-A80

$276.26

1

CRANKCASE, R. This part replaces 11100-GB4-010.

11100-GEL-A80

$276.26

2

GASKET, CRANKCASE This part replaces 11191-GB4-000.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GB4-306.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L. This part replaces 11200-GB4-700.

11200-GB4-701

Unavailable

3

CRANKCASE, L.

11200-GB4-701

Unavailable

4

PUMP ASSY., OIL

15100-178-000

Unavailable

5

GASKET, OIL PUMP BODY

15119-178-000

$3.85

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-178-000

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-003

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER)

15331-107-000

Unavailable

10

ROTOR, OIL PUMP (OUTER)

15332-107-000

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-178-000

Unavailable

12

PIN, OIL PUMP KNOCK (NOT AVAILABLE)

15383-178-300

Unavailable

13

SCREEN, OIL FILTER

15421-035-010

$3.80

14

BOLT A, CYLINDER STUD

90031-035-010

$5.46

15

BOLT B, CYLINDER STUD

90032-035-000

$5.46

16

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

16

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

17

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

19

SCREW, PAN (6X16)

93500-06016-0A

$1.49

20

SCREW, PAN (6X22)

93500-06022-0A

$1.49

21

SCREW-WASHER (5X10)

93892-05010-00

$1.49

22

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

22

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

23

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

23

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

24

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

24

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
