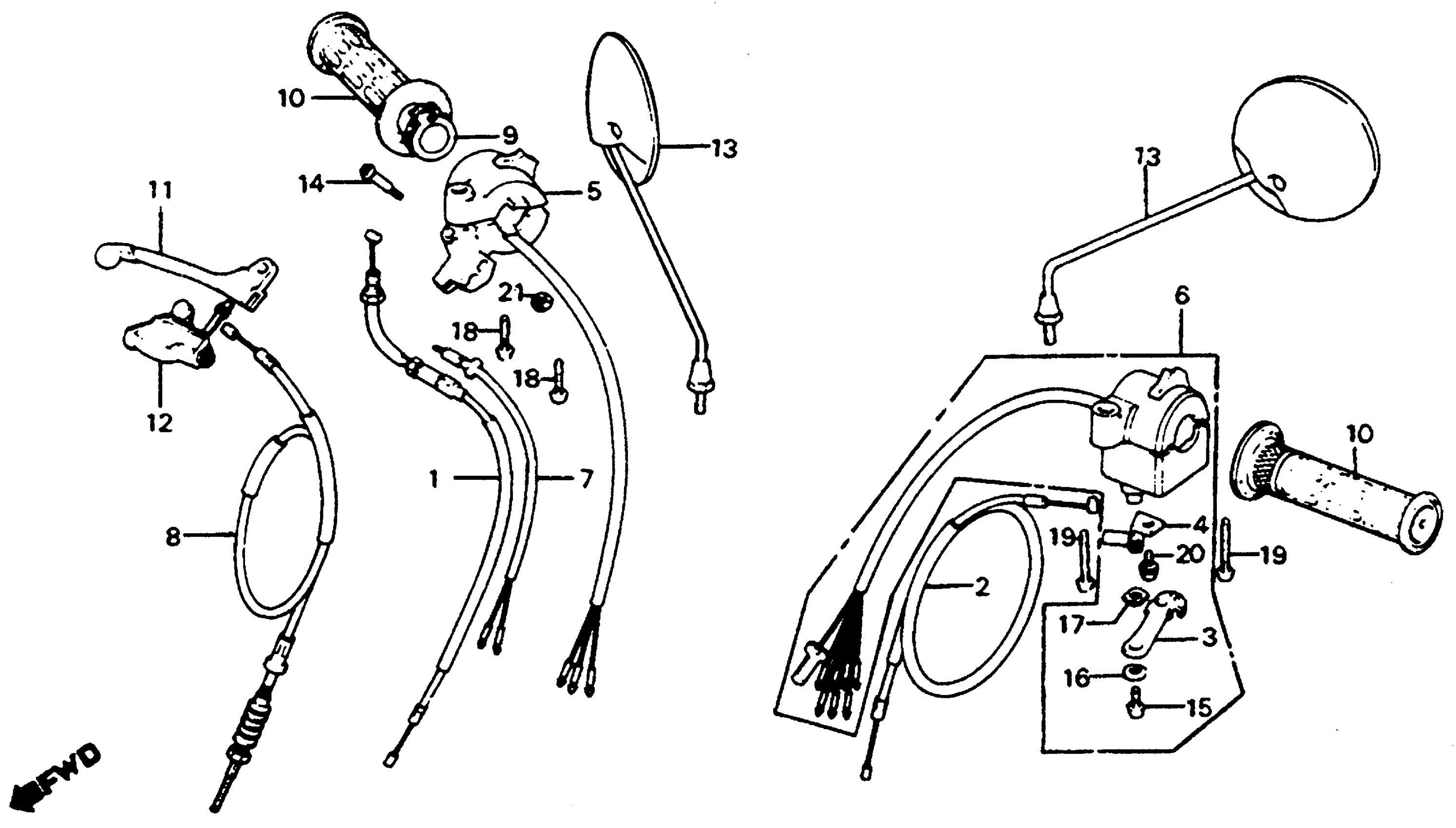

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-GB4-000.

17910-126-900

Unavailable

1

CABLE, THROTTLE

17910-126-900

Unavailable

2

CABLE, CHOKE This part replaces 17950-GB4-000.

17950-GB4-770

Unavailable

2

CABLE, CHOKE

17950-GB4-770

Unavailable

3

LEVER, CHOKE

17961-GB5-671

Unavailable

4

STOPPER, CABLE

17962-GB4-003

Unavailable

5

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35150-GB5-672

Unavailable

6

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-GB5-671

Unavailable

7

SWITCH ASSY., FR. STOP This part replaces 35340-GJ5-000.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-GJ5-010.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-086-721.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

8

CABLE, FR. BRAKE

45450-GB4-600

$25.43

8

CABLE, FR. BRAKE This part replaces 45450-GB5-670.

45450-GB4-600

$25.43

9

PIPE, THROTTLE GRIP This part replaces 53141-179-700.

53141-179-701

Unavailable

9

PIPE, THROTTLE GRIP

53141-179-701

Unavailable

10

GRIP, HANDLEBAR

53165-172-000

$12.63

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GF0-000.

53175-GGA-305

$12.88

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-670.

53175-GGA-305

$12.88

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-174-670.

53175-GGA-305

$12.88

12

COVER, R. HANDLE LEVER This part replaces 53176-179-701.

53176-179-702

Unavailable

12

COVER, R. HANDLE LEVER

53176-179-702

Unavailable

13

MIRROR COMP. This part replaces 88110-GB4-000.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88110-GK8-405.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88110-GN2-000.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88210-GBJ-505.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88210-GK8-505.

88210-GN2-000

$29.10

14

SCREW, HANDLE LEVER PIVOT

90115-170-700

$3.74

15

SCREW, PAN (5MM) (NOT AVAILABLE)

90116-147-000

Unavailable

16

WASHER (NOT AVAILABLE)

90441-147-000

$1.49

17

WASHER, WAVE

90442-147-000

Unavailable

18

SCREW, PAN (5X25) | Use up to Frame SN DS305434

93500-05025-0A

$1.49

18

SCREW, PAN (5X28) | Use from Frame SN DS305435

93500-05028-0A

$1.49

19

SCREW, PAN (5X40)

93500-05040-0A

$1.49

20

SCREW-WASHER (5X10)

93892-05010-08

$1.49

21

NUT, HEX. (5MM)

94001-05000-0S

$2.74
