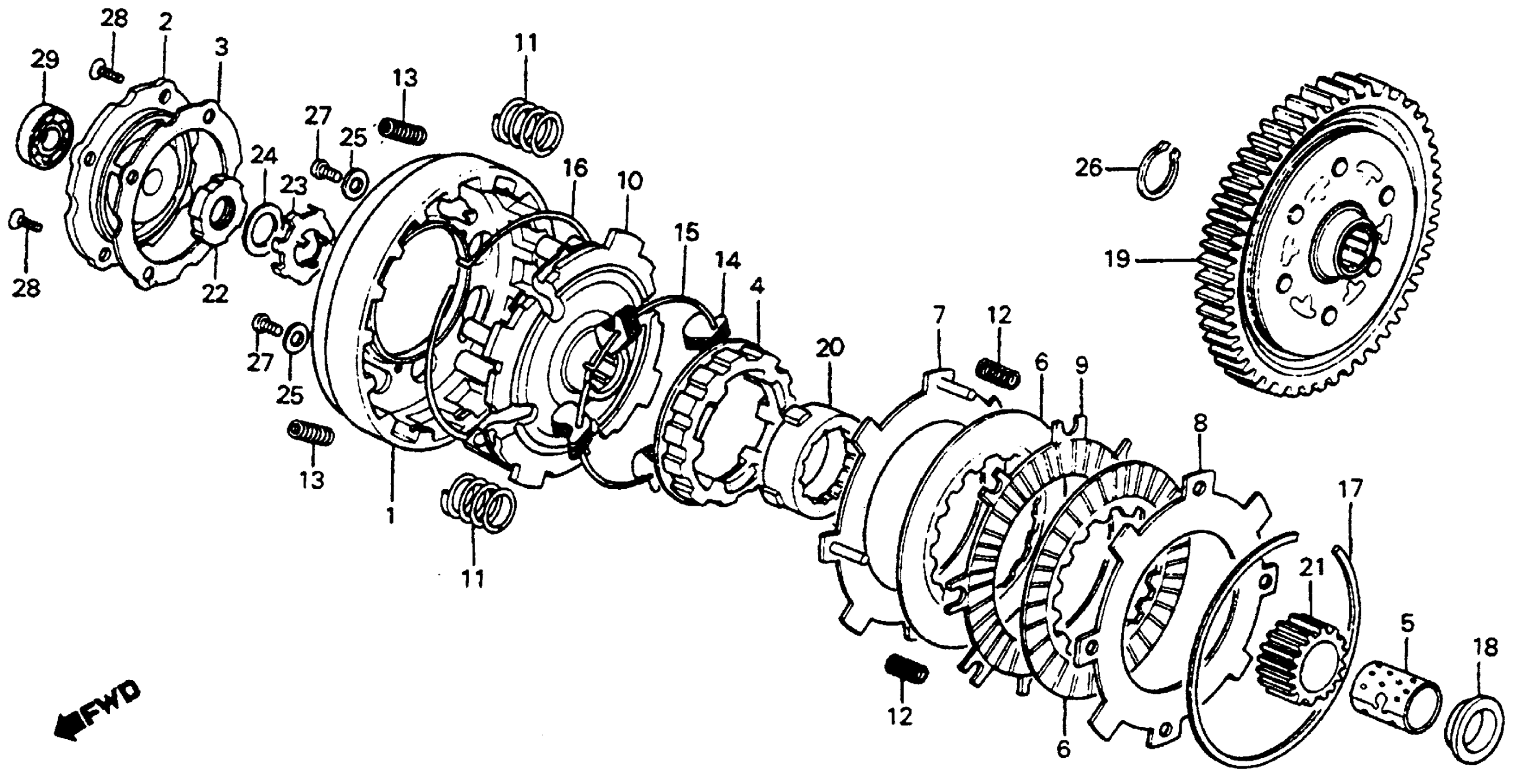

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-178-000

$48.77

2

COVER, CLUTCH (OUTER) This part replaces 22111-178-000.

22111-178-010

$10.00

2

COVER, CLUTCH (OUTER)

22111-178-010

$10.00

3

GASKET, CLUTCH COVER (SOURCE: VINTAGE PARTS INC.) This part replaces 22119-178-000.

22119-178-306

Unavailable

3

GASKET, CLUTCH COVER

22119-178-306

Unavailable

4

CENTER, CLUTCH (17T)

22120-040-030

$65.68

5

GUIDE, CLUTCH CENTER

22131-035-030

$19.70

6

DISK A, CLUTCH FRICTION

22201-GW8-681

$9.03

6

DISK A, CLUTCH FRICTION This part replaces 22201-086-010.

22201-GW8-681

$9.03

6

DISK A, CLUTCH FRICTION This part replaces 22201-092-000.

22201-GW8-681

$9.03

6

DISK A, CLUTCH FRICTION This part replaces 22201-092-306.

22201-GW8-681

$9.03

7

PLATE A, CLUTCH

22310-GB0-910

$13.09

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$8.83

8

PLATE B, CLUTCH

22321-046-020

$8.83

9

DISK B, CLUTCH FRICTION

22331-GW8-681

$9.03

9

DISK B, CLUTCH FRICTION This part replaces 22331-086-000.

22331-GW8-681

$9.03

9

DISK B, CLUTCH FRICTION This part replaces 22331-126-900.

22331-GW8-681

$9.03

10

PLATE, DRIVE

22351-178-020

$68.61

11

SPRING, CLUTCH

22401-092-900

$2.42

12

SPRING, CLUTCH FREE

22411-178-000

$2.19

13

SPRING, CLUTCH DAMPER

22421-040-000

$1.86

14

WEIGHT, CLUTCH

22531-178-000

$1.13

15

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.06

16

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.06

17

SET-RING (101.5MM)

22901-001-000

$3.65

18

COLLAR (17MM)

22911-GB4-680

$6.13

18

COLLAR (17MM) This part replaces 22911-035-010.

22911-GB4-680

$6.13

19

GEAR, PRIMARY DRIVEN (69T) This part replaces 23110-086-020.

23110-086-030

$121.26

19

GEAR, PRIMARY DRIVEN (69T)

23110-086-030

$121.26

20

OUTER, DRIVE GEAR

23112-GB0-910

$26.25

21

GEAR, PRIMARY DRIVE (17T)

23120-086-020

$44.13

22

NUT, LOCK (14MM) This part replaces 90231-087-000.

90231-087-010

$3.54

22

NUT, LOCK (14MM)

90231-087-010

$3.54

23

WASHER, LOCK (14MM)

90431-086-000

$2.81

24

WASHER B, LOCK

90432-086-000

$4.12

25

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.75

26

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

27

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

28

SCREW, FLAT (5X10)

93600-05010-0A

$0.71

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
