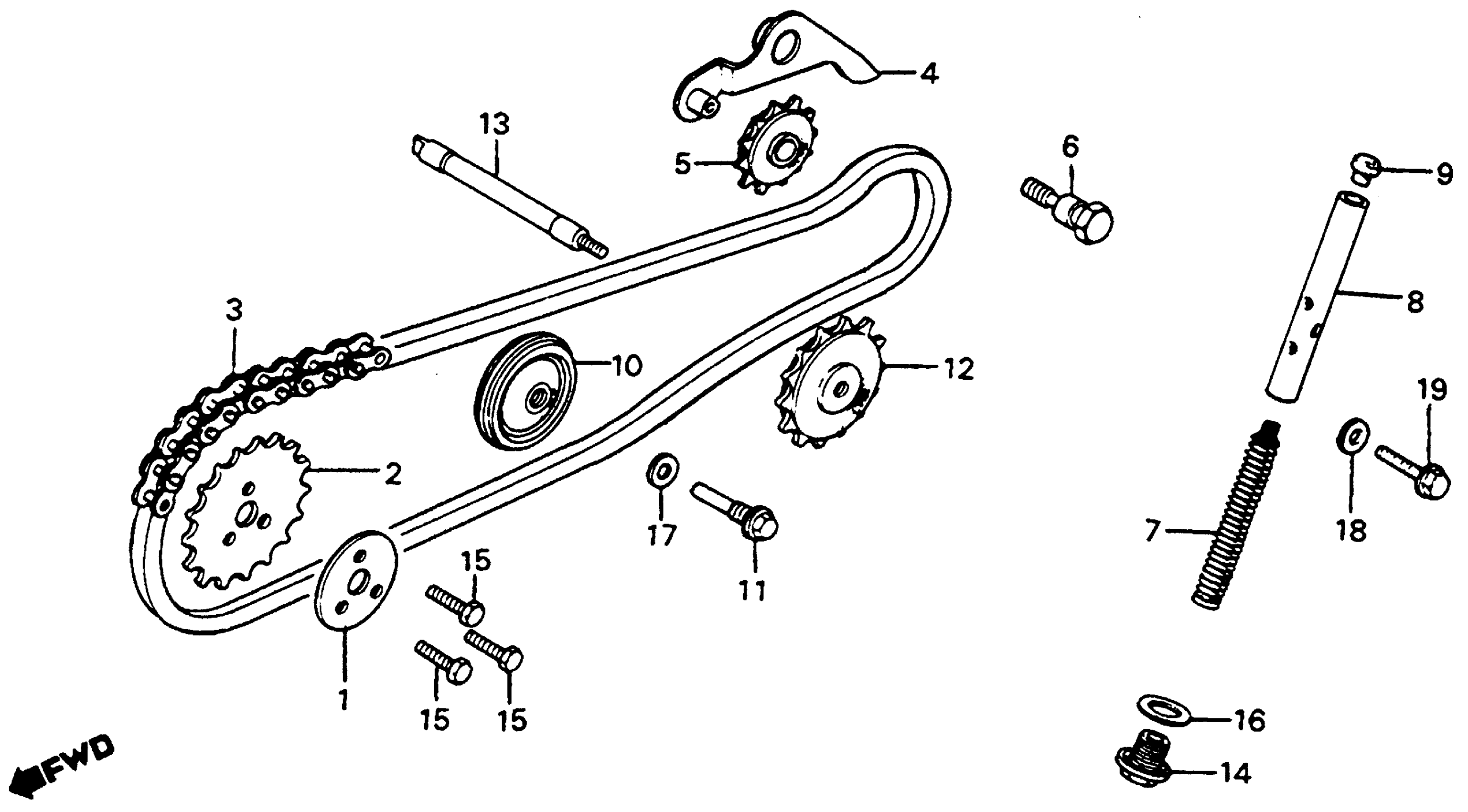

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

WASHER, CAMSHAFT

14105-957-000

Unavailable

2

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

2

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

2

SPROCKET, CAM (28T)

14321-035-700

$17.46

3

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

4

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

5

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33

6

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

7

SPRING, CAM CHAIN TENSIONER This part replaces 14541-GB0-910.

14541-GB4-681

$4.75

7

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

8

ROD, CAM CHAIN TENSIONER PUSH This part replaces 14550-GB0-910.

14550-GB0-911

$21.35

8

ROD, CAM CHAIN TENSIONER PUSH

14550-GB0-911

$21.35

9

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

10

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$20.24

10

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

11

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

11

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

12

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

13

SPINDLE, CAM CHAIN GUIDE SPROCKET (NOT AVAILABLE)

14675-GB0-910

Unavailable

14

BOLT, SEALING (14MM)

90081-035-000

$4.24

15

BOLT, KNOCK (5MM)

90083-035-010

$2.07

16

WASHER, SEALING (14MM)

90441-035-000

$2.39

17

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

18

WASHER (8MM)

90481-035-000

$1.87

19

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

19

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
