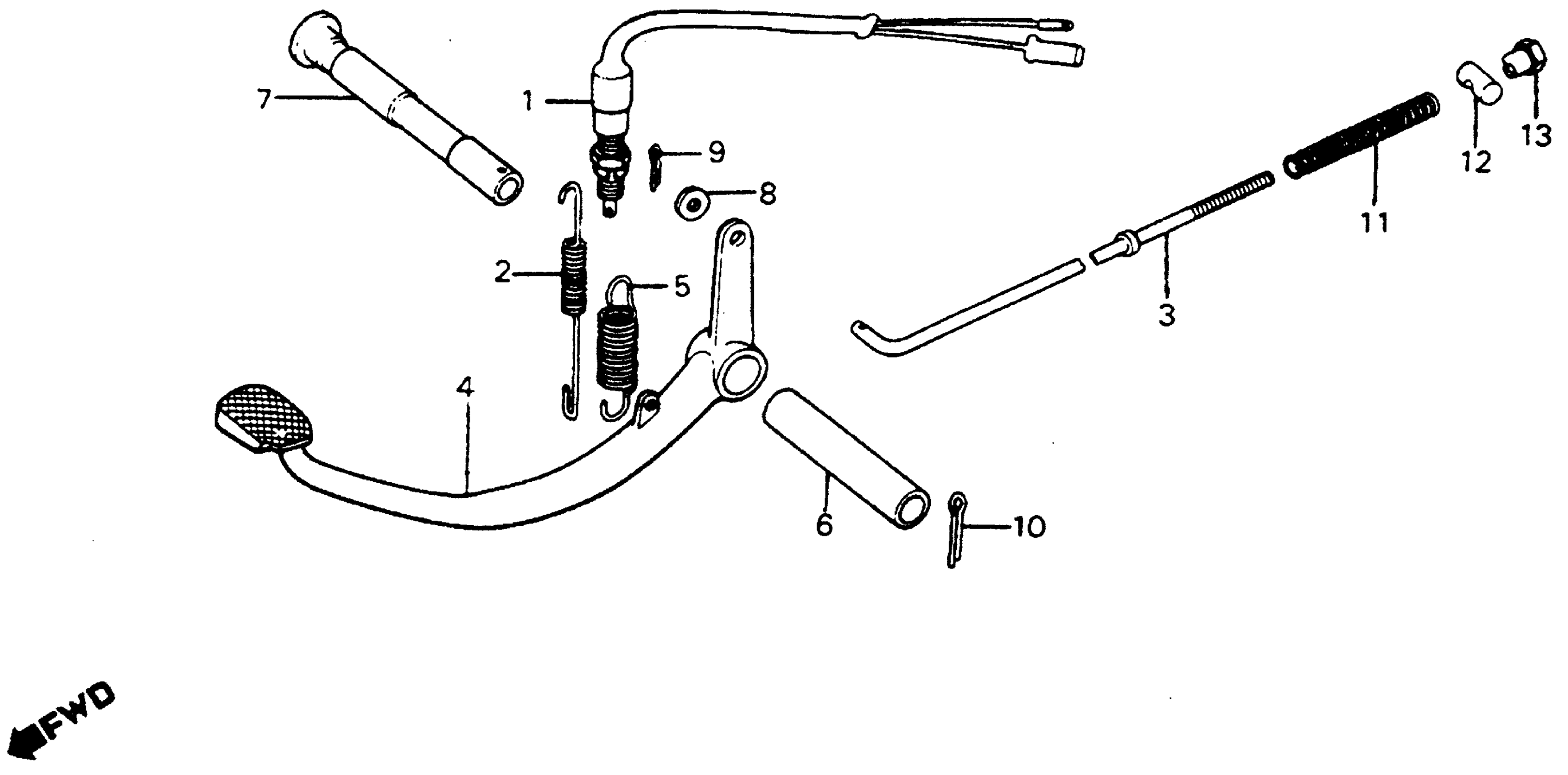

Honda C70A (83) PASSPORT, JPN, VIN# JH2DA010-DS300004 TO JH2DA010-DS308543 BRAKE PEDAL Diagram

SWITCH ASSY., RR. STOP This part replaces 35350-086-721.

35350-GB2-505

Unavailable

SPRING, STOP SWITCH

35357-041-000

Unavailable

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

ROD, RR. BRAKE

43451-397-000

$7.34

PEDAL, BRAKE

46500-086-720

Unavailable

SPRING, BRAKE PEDAL

46514-086-720

$6.87

COLLAR, RR. BRAKE PIVOT (NOT AVAILABLE)

50250-174-670

Unavailable

SHAFT, RR. BRAKE PIVOT

50512-GB4-680

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
