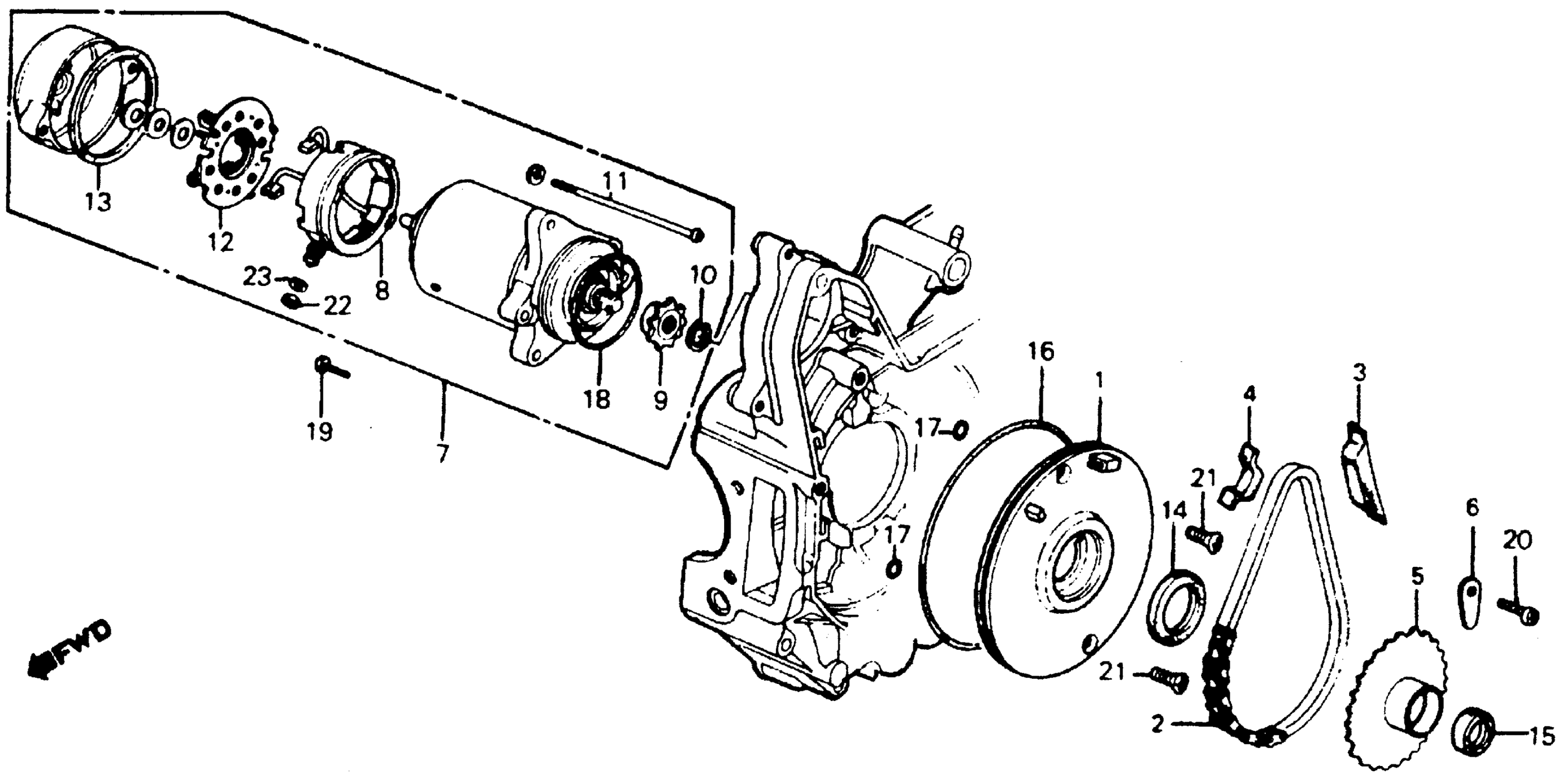

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 STARTING MOTOR Diagram

PLATE, OIL SEPARATE

11321-179-710

$7.61

CHAIN, STARTING (NOT AVAILABLE)

28101-179-711

Unavailable

GUIDE, STARTER CHAIN (NOT AVAILABLE)

28102-179-710

Unavailable

PROTECTOR, STARTER CHAIN (NOT AVAILABLE)

28103-179-710

Unavailable

SPROCKET, STARTING (NOT AVAILABLE)

28110-179-710

Unavailable

PLATE, STARTING SPROCKET SETTING

28117-179-710

$6.08

STARTER MOTOR ASSY. This part replaces 31200-179-712.

31200-179-405

Unavailable

TERMINAL SET, BRUSH (NOT AVAILABLE)

31201-179-711

Unavailable

SPROCKET (16T) (NOT AVAILABLE)

31202-179-711

Unavailable

CLIP, STARTING SPROCKET (NOT AVAILABLE)

31203-003-006

Unavailable

SCREW, STARTER MOTOR COVER SETTING (NOT AVAILABLE)

31205-179-711

Unavailable

HOLDER SET, BRUSH (NOT AVAILABLE)

31206-179-711

Unavailable

RING, SEAL

31207-179-711

$4.22

OIL SEAL (30X42X4.5)

91201-179-711

Unavailable

OIL SEAL (18.9X28X5) (NOK)

91202-GB4-691

Unavailable

OIL SEAL (18.9X28X5) (NOK) This part replaces 91202-GK4-731.

91202-GB4-691

Unavailable

OIL SEAL (18.9X28X5) (NOK) This part replaces 91202-179-711.

91202-GB4-691

Unavailable

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

O-RING (107X2) (ARAI)

91301-035-003

$7.05

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

O-RING (53.5X2) (NOT AVAILABLE)

91354-179-710

Unavailable

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
