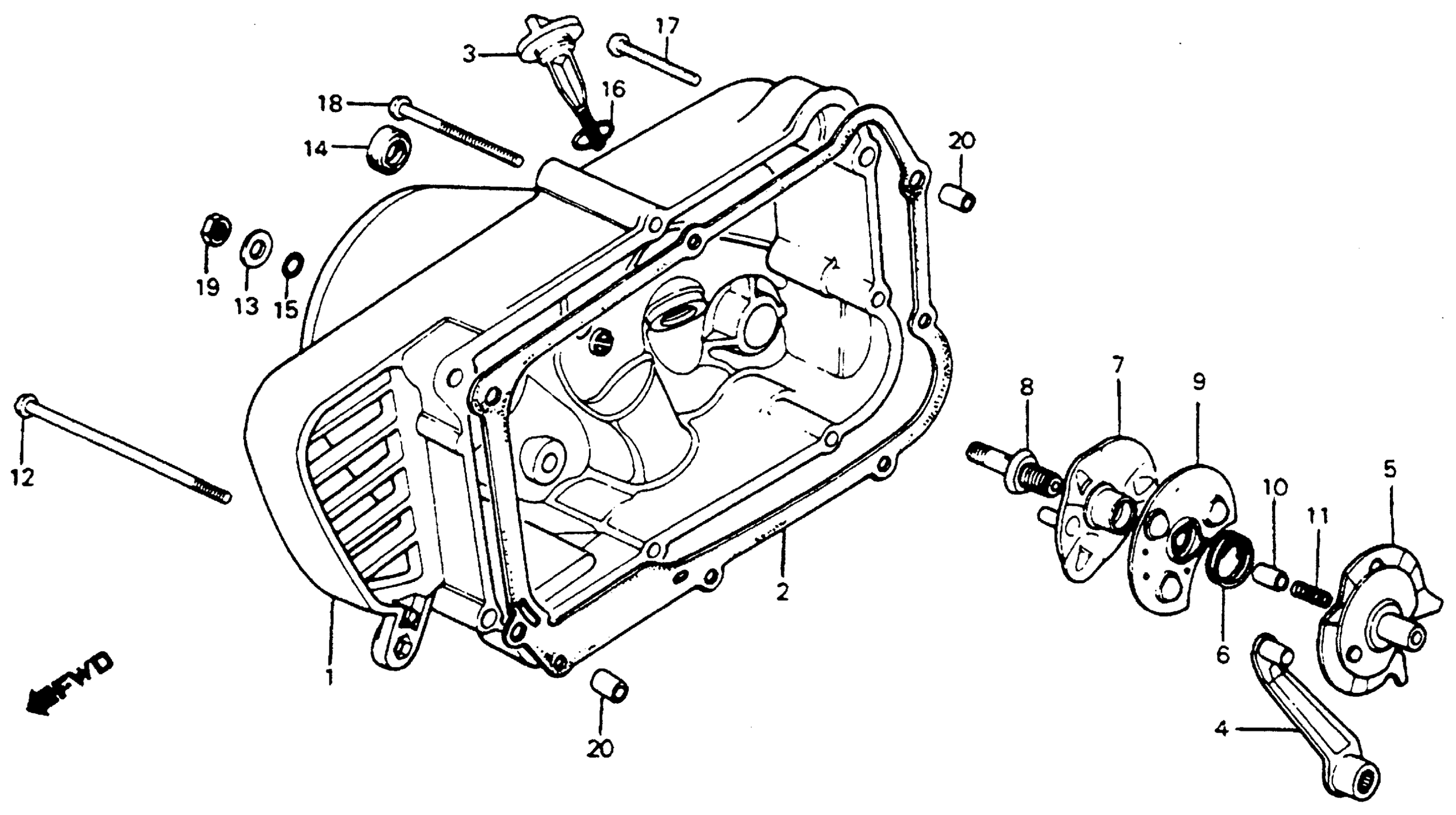

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-086-020

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-681.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$13.57

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$13.57

3

DIPSTICK, OIL

15650-KA9-680

$7.78

3

DIPSTICK, OIL This part replaces 15650-086-000.

15650-KA9-680

$7.78

4

LEVER, CLUTCH

22811-040-020

$32.34

5

PLATE, CLUTCH CAM This part replaces 22820-918-000.

22820-918-020

$20.42

5

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

5

PLATE, CLUTCH CAM

22820-918-020

$20.42

6

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

7

PLATE, CLUTCH LIFTER

22830-041-000

$11.73

8

BOLT, CLUTCH ADJUSTING

22846-040-010

$6.30

9

RETAINER, CLUTCH BALL

22860-046-000

$7.04

10

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

10

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

11

SPRING, OIL THROUGH

25555-065-000

$1.63

12

SCREW, PAN (6X113) (NOT AVAILABLE)

90084-086-790

Unavailable

13

WASHER (8MM)

90485-040-000

$1.77

14

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

14

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

15

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

15

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

16

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

16

O-RING (18X3)

91307-035-000

$2.92

17

SCREW, PAN (6X40) | Use up to Engine SN BS113252 This part replaces 93500-06040.

93500-06040-0A

$1.49

17

SCREW, PAN (6X40) | Use up to Engine SN BS113252

93500-06040-0A

$1.49

17

BOLT, FLANGE (6X40) | Use from Engine SN BS113253 This part replaces 96000-06040-00.

96001-06040-00

$2.16

17

BOLT, FLANGE (6X40) | Use from Engine SN BS113253

96001-06040-00

$2.16

18

SCREW, PAN (6X70) | Use up to Engine SN BS113252 This part replaces 93500-06070.

93500-06070-0A

$1.49

18

SCREW, PAN (6X70) | Use up to Engine SN BS113252

93500-06070-0A

$1.49

18

BOLT, FLANGE (6X70) | Use from Engine SN BS113253 This part replaces 96000-06070-00.

96001-06070-00

$1.95

18

BOLT, FLANGE (6X70) | Use from Engine SN BS113253

96001-06070-00

$1.95

19

NUT, HEX. (8MM)

94030-08000

$1.49

20

PIN A, DOWEL (8X12)

94301-08120

$2.19
