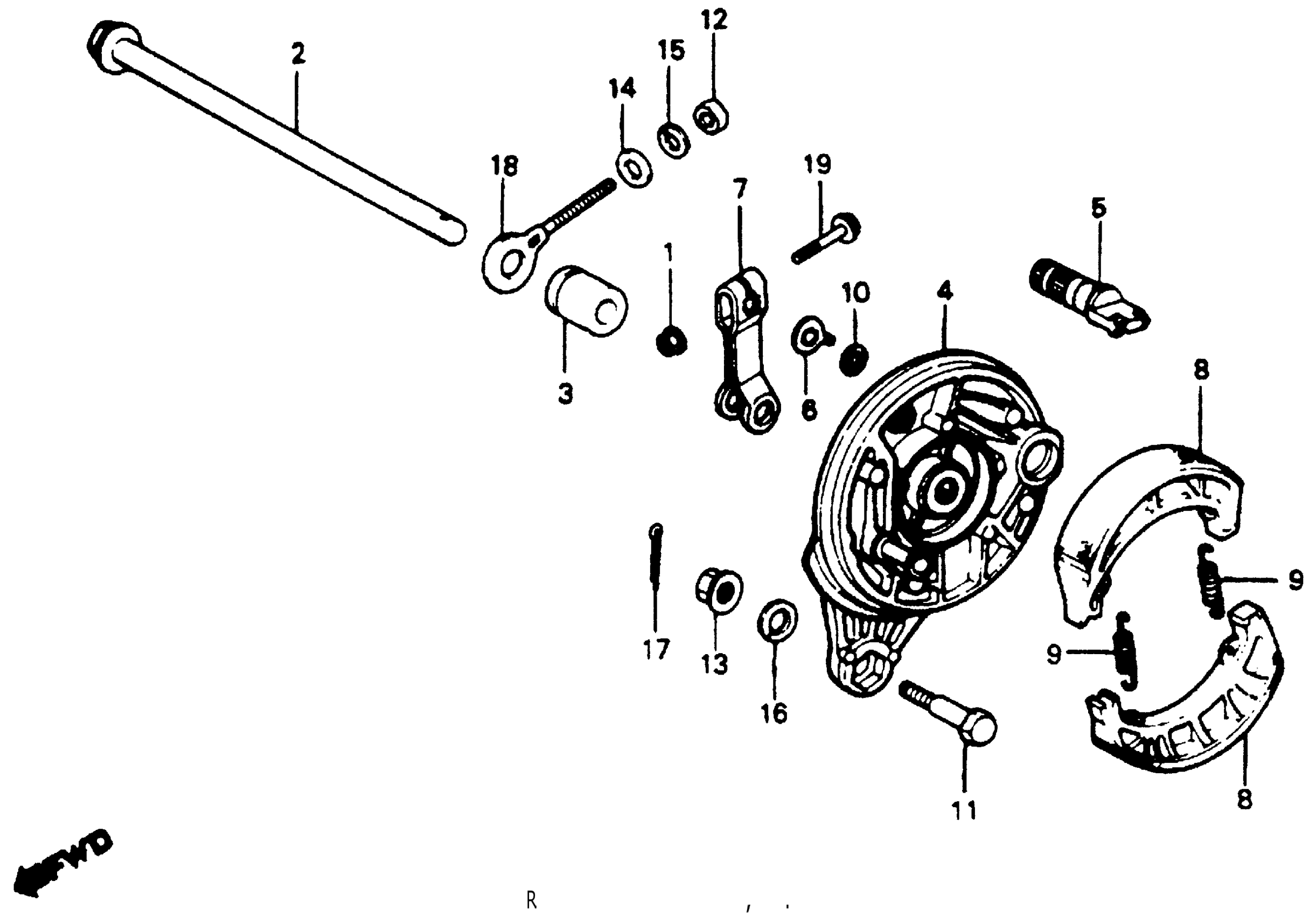

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

2

AXLE, RR. WHEEL

42301-121-760

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-GBJ-000

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE This part replaces 42313-041-000.

42313-GBJ-000

Unavailable

4

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-171-000

Unavailable

5

CAM, RR. BRAKE

43141-400-010

$23.52

6

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-096-700

Unavailable

7

ARM, RR. BRAKE

43410-GAN-670

Unavailable

7

ARM, RR. BRAKE This part replaces 43410-171-000.

43410-GAN-670

Unavailable

8

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

8

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

9

SPRING, BRAKE SHOE

45133-028-000

$2.03

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

NUT, FLANGE (8MM)

94050-08000

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

WASHER, SPRING (10MM)

94111-10000

$1.49

17

PIN, SPLIT (2.0X15)

94201-20150

$1.49

18

ADJUSTER S, R. CHAIN

95014-10010

$4.53

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
