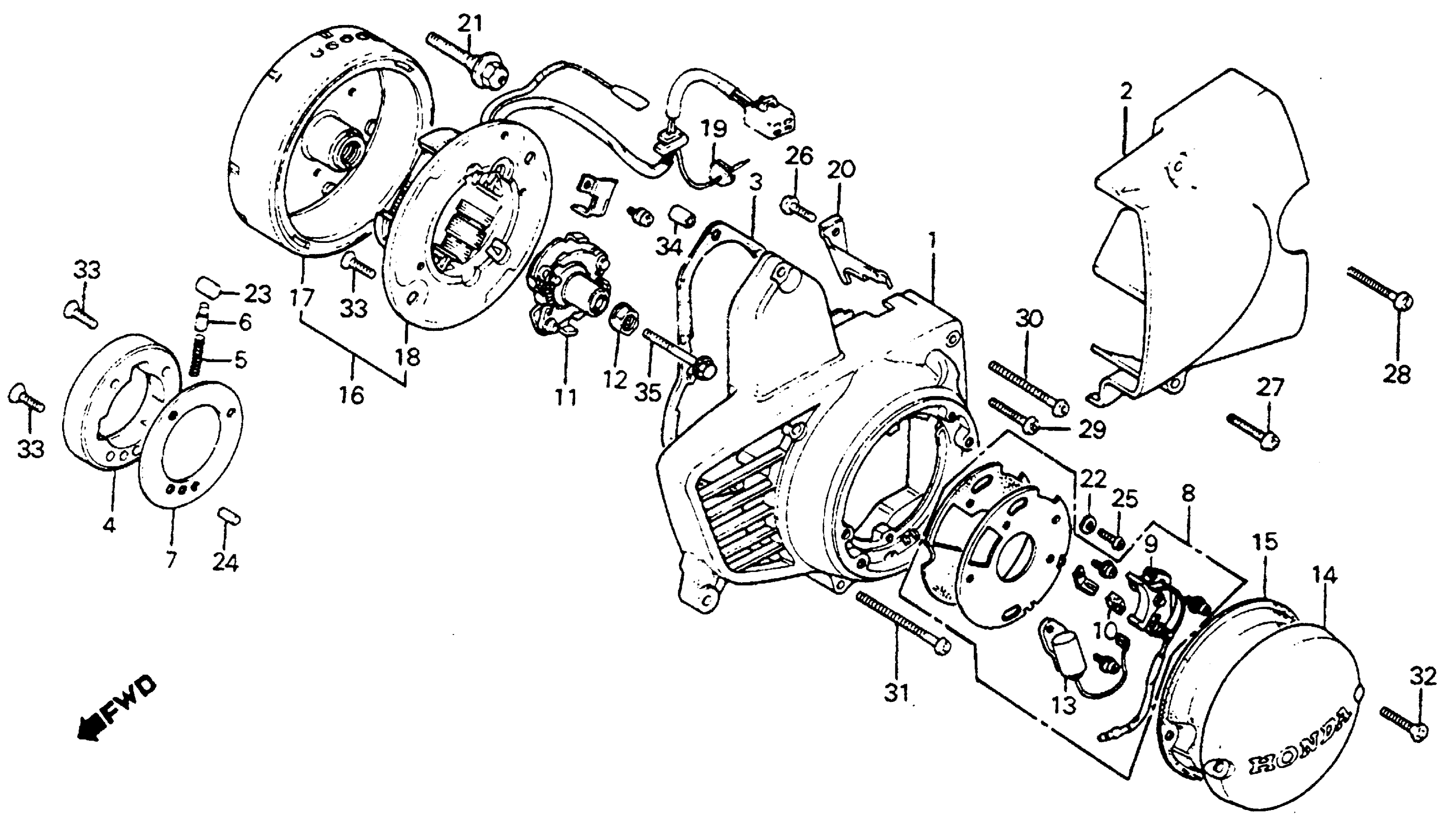

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 LEFT CRANKCASE COVER ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-179-710

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-086-791

Unavailable

3

GSK,L CASE COVER This part replaces 11395-179-710.

11395-179-405

Unavailable

4

CLUTCH OUTER, STARTING

28120-179-710

$102.49

5

SPRING, STARTING CLUTCH ROLLER

28125-179-710

$2.66

6

CAP, STARTING CLUTCH ROLLER SPRING

28126-253-030

$4.53

7

PLATE, STARTING CLUTCH SIDE

28128-179-710

$13.13

8

POINTS ASSY. (NOT AVAILABLE)

30200-174-671

Unavailable

9

POINTS (TOYO)

30202-174-671

Unavailable

10

FELT, OIL (TOYO)

30205-300-154

Unavailable

11

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-174-671

Unavailable

12

WASHER, ADVANCER SPECIAL

30233-179-710

Unavailable

13

CONDENSER (TOYO)

30250-174-671

Unavailable

14

COVER, POINTS (NOT AVAILABLE)

30371-003-000

Unavailable

15

GASKET, POINTS COVER (NOT AVAILABLE) This part replaces 30391-030-010.

30391-030-000

Unavailable

16

ALTERNATOR (HITACHI) (NOT AVAILABLE)

31100-174-673

Unavailable

16

ALTERNATOR (HITACHI) (NOT AVAILABLE) This part replaces 31100-174-674.

31100-174-673

Unavailable

17

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31121-174-673

Unavailable

17

FLYWHEEL (HITACHI) (NOT AVAILABLE) This part replaces 31121-174-674.

31121-174-673

Unavailable

18

STATOR (HITACHI) (NOT AVAILABLE)

31141-174-673

Unavailable

18

STATOR (HITACHI) (NOT AVAILABLE) This part replaces 31141-174-674.

31141-174-673

Unavailable

19

GROMMET, NEUTRAL SWITCH CABLE (NOT AVAILABLE)

32956-179-710

Unavailable

20

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32961-179-710

Unavailable

21

BOLT, ROTOR SETTING (NOT AVAILABLE)

90030-179-710

Unavailable

22

WASHER (5MM)

90482-028-000

$2.09

23

ROLLER (10X10)

91101-179-710

$4.23

24

ROLLER (5X11.8)

91102-179-711

$2.64

25

SCREW, PAN (5X12)

93500-05012-0A

$1.49

26

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

26

SCREW, PAN (6X12)

93500-06012-0A

$1.49

26

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

27

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

27

SCREW, PAN (6X20)

93500-06020-0A

$1.49

28

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

28

SCREW, PAN (6X25)

93500-06025-0A

$1.49

29

SCREW, PAN (6X28) | Use up to Engine SN BS113252 This part replaces 93500-06028.

93500-06028-0A

$1.49

29

SCREW, PAN (6X28) | Use up to Engine SN BS113252

93500-06028-0A

$1.49

29

BOLT, FLANGE (6X28) | Use from Engine SN BS113253 This part replaces 96000-06028-00.

96001-06028-00

$2.06

29

BOLT, FLANGE (6X28) | Use from Engine SN BS113253

96001-06028-00

$2.06

30

SCREW, PAN (6X50) | Use up to Engine SN BS113252 This part replaces 93500-06050.

93500-06050-0A

$1.49

30

SCREW, PAN (6X50) | Use up to Engine SN BS113252

93500-06050-0A

$1.49

30

BOLT, FLANGE (6X50) | Use from Engine SN BS113253 This part replaces 96000-06050-00.

96001-06050-00

$2.16

30

BOLT, FLANGE (6X50) | Use from Engine SN BS113253

96001-06050-00

$2.16

31

SCREW, PAN (6X60) | Use up to Engine SN BS113252 This part replaces 93500-06060.

93500-06060-0A

$1.49

31

SCREW, PAN (6X60) | Use up to Engine SN BS113252

93500-06060-0A

$1.49

31

BOLT, FLANGE (6X60) | Use from Engine SN BS113253 This part replaces 96000-06060-00.

96001-06060-00

$2.06

31

BOLT, FLANGE (6X60) | Use from Engine SN BS113253

96001-06060-00

$2.06

32

SCREW, FLAT (5X20)

93600-05020-0A

$1.49

33

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

33

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

34

PIN A, DOWEL (8X12)

94301-08120

$2.19

35

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

35

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
