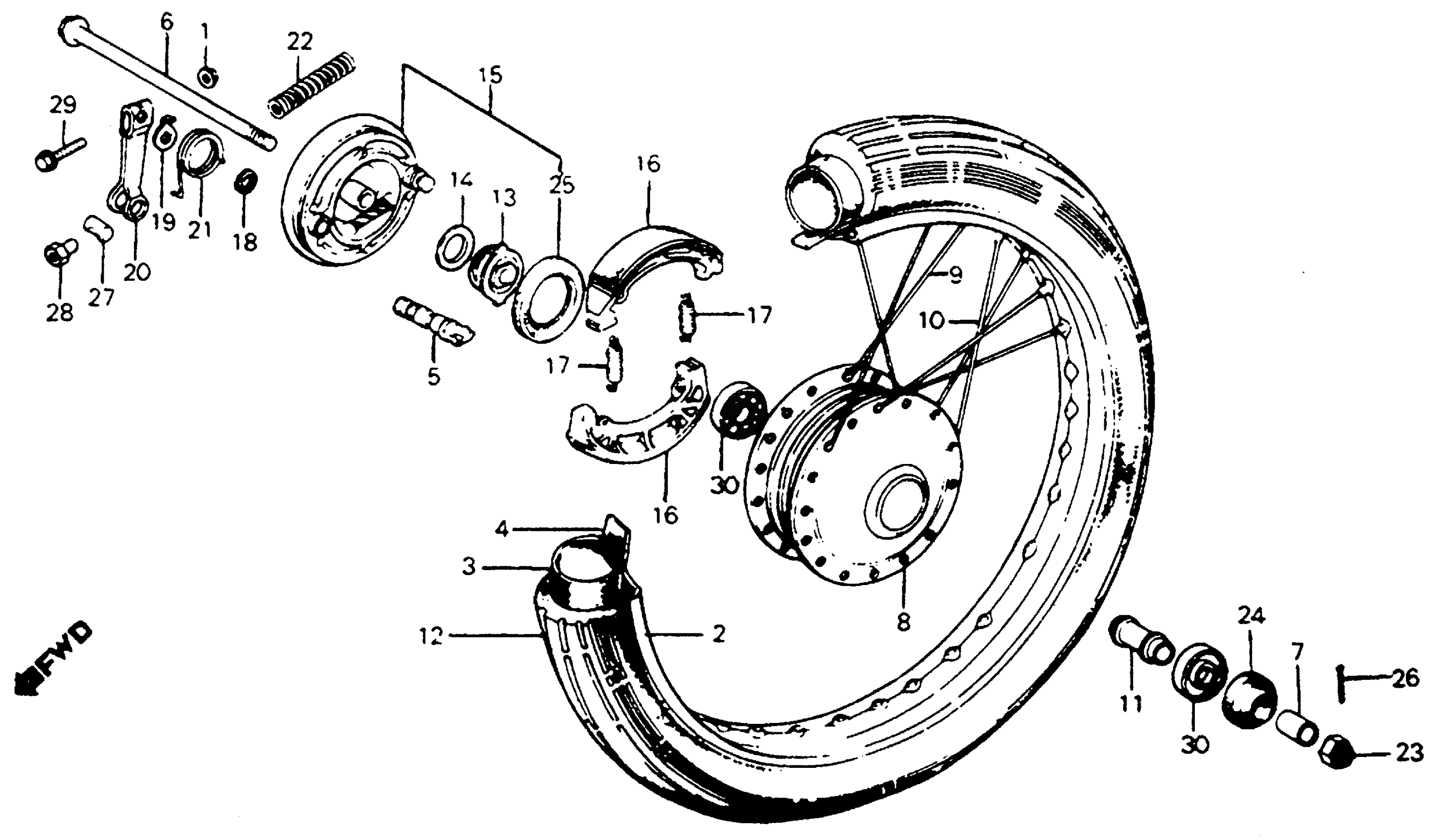

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 FRONT WHEEL + FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

2

RIM, WHEEL

42701-001-073

Unavailable

2

RIM, WHEEL This part replaces 42701-041-010.

42701-001-073

Unavailable

2

RIM, WHEEL This part replaces 42701-041-020.

42701-001-073

Unavailable

2

RIM, WHEEL This part replaces 44701-174-670.

42701-001-073

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-044-000.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-044-601.

42712-041-154

Unavailable

3

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

4

FLAP, TIRE (17) (IRC)

42713-102-005

$6.54

4

FLAP, TIRE (17) (BS) (NOT AVAILABLE)

44713-001-003

Unavailable

5

CAM, RR. BRAKE

43141-400-010

$23.52

6

AXLE, FR. WHEEL

44301-GAC-000

Unavailable

6

AXLE, FR. WHEEL This part replaces 44301-041-680.

44301-GAC-000

Unavailable

7

COLLAR, FR. WHEEL SIDE

44311-041-000

Unavailable

8

HUB, FR. WHEEL (NOT AVAILABLE)

44601-171-000

Unavailable

9

SPOKE A (12X159.5) This part replaces 44605-171-000.

44605-171-305

Unavailable

9

SPOKE A (12X159.5)

44605-171-305

Unavailable

10

SPOKE A (12X159) This part replaces 44606-171-000.

44606-171-305

$3.28

10

SPOKE A (12X159)

44606-171-305

$3.28

11

COLLAR, FR. AXLE DISTANCE

44620-171-000

Unavailable

12

TIRE, FR. (2.25-17) (6PR) (INOUE)

44711-174-671

Unavailable

12

TIRE, FR. (2.25-17) (4PR) (BS) (NOT AVAILABLE)

44711-174-672

Unavailable

13

GEAR, SPEEDOMETER (NOT AVAILABLE)

44804-096-650

Unavailable

14

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.34

15

SUB-PANEL, FR. (NOT AVAILABLE)

45010-171-000

Unavailable

16

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

16

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

16

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

16

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

17

SPRING, BRAKE SHOE

45133-028-000

$2.03

18

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

19

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-096-650

$4.03

20

ARM, FR. BRAKE (NOT AVAILABLE)

45410-096-650

Unavailable

21

SPRING, FR. BRAKE ARM RETURN

45411-087-820

Unavailable

22

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

23

NUT, FR. WHEEL AXLE

90305-041-000

$4.83

24

OIL SEAL (21X35X7)

90752-035-003

$6.41

25

OIL SEAL (47X60X7) (ARAI)

91251-GK4-003

$9.19

25

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

25

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

25

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-005.

91251-GK4-003

$9.19

26

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30)

94201-25300

$1.49

27

JOINT B, BRAKE ARM

95015-32001

$1.49

28

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

29

BOLT, FLANGE (6X28) This part replaces 95700-06028.

95700-06028-00

$1.73

29

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

BEARING, RADIAL BALL (6300U)

96140-63000-10

Unavailable
