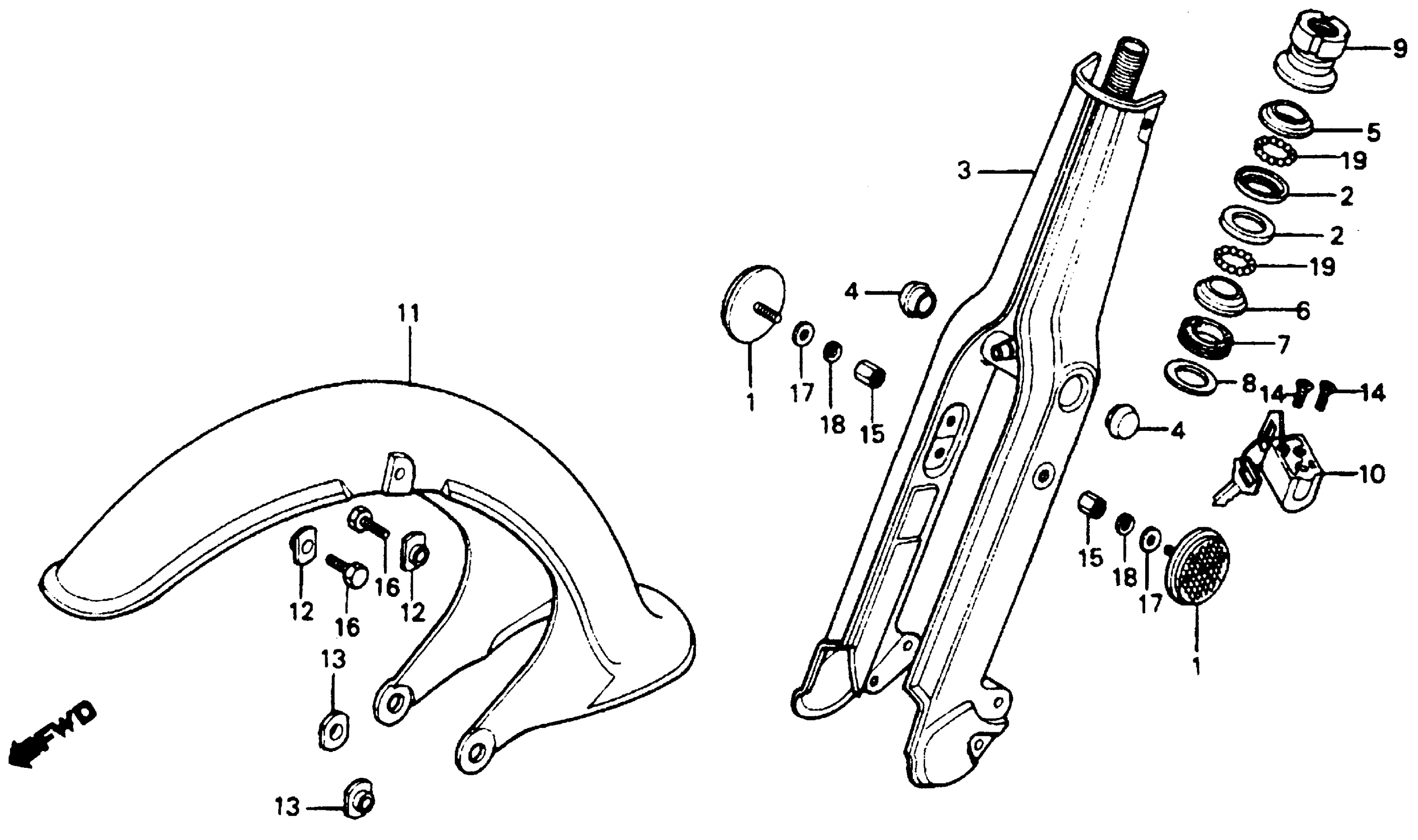

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-179-003

Unavailable

2

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

2

RACE, STEERING BALL

50301-041-010

$12.39

3

FORK, FR. *Y31* (PARAKEET YELLOW)

51100-GB1-305ZR

Unavailable

3

FORK, FR. *Y31* (PARAKEET YELLOW) This part replaces 51100-172-010ZR.

51100-GB1-305ZR

Unavailable

3

FORK, FR. *PB31* This part replaces 51100-172-010ZS.

51100-GB1-305ZS

Unavailable

3

FORK, FR. *R110* This part replaces 51100-172-010ZW.

51100-GB1-305ZD

Unavailable

3

FORK, FR. *R110* This part replaces 51100-172-020ZN.

51100-GB1-305ZD

Unavailable

4

CAP, FORK SIDE *NH24* (CERAMIC WHITE) This part replaces 51341-001-000WF.

51341-001-000ZD

Unavailable

4

CAP, FORK SIDE *NH24* (CERAMIC WHITE)

51341-001-000ZD

Unavailable

5

RACE, STEERING CONE (UPPER)

53211-030-000

Unavailable

6

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

7

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

8

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

9

THREAD, STEERING HEAD TOP

53220-041-010

Unavailable

10

LOCK, HANDLEBAR

53600-086-007

$47.89

11

FENDER, FR. *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

61100-086-000ZH

Unavailable

11

FENDER, FR. *PB31* (ANGEL BLUE) (NOT AVAILABLE)

61100-086-000ZJ

Unavailable

11

FENDER, FR. *R110* (MONZA RED)

61100-086-000ZN

Unavailable

12

METAL, FR. FENDER FIXING (UPPER) (NOT AVAILABLE)

61117-041-010

Unavailable

13

METAL, FR. FENDER FIXING (LOWER) This part replaces 61142-001-000.

61142-001-010

$3.03

13

METAL, FR. FENDER FIXING (LOWER)

61142-001-010

$3.03

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

15

NUT, LOCK (6MM)

90301-086-000

$2.39

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
