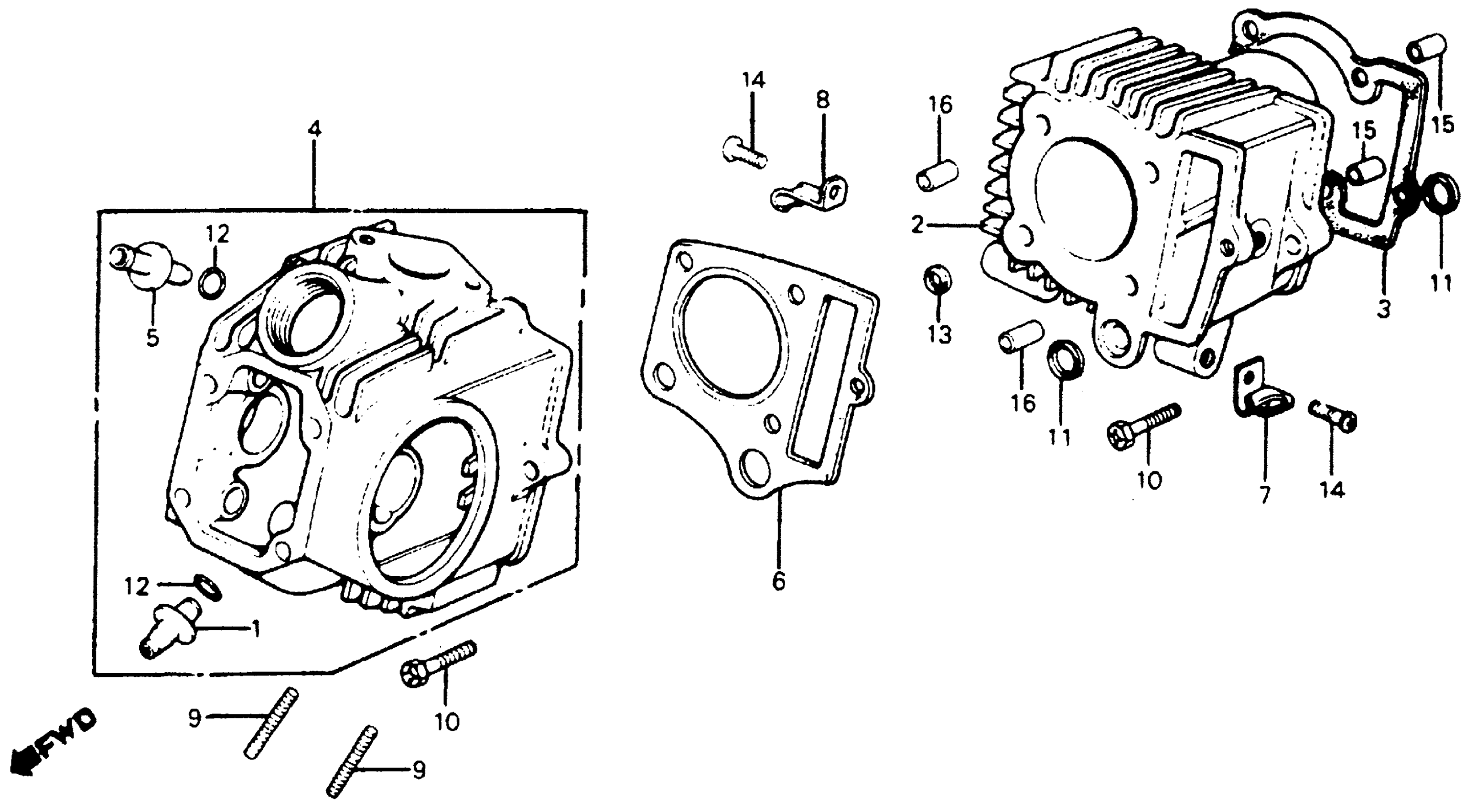

Honda C70A (81) PASSPORT, JPN, VIN# JH2DA010-BS100003 TO JH2DA010-BS136772 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, EX. VALVE | (Optional).

12023-051-320

Unavailable

2

CYLINDER

12101-GB0-910

$212.90

2

CYLINDER This part replaces 12101-087-010.

12101-GB0-910

$212.90

3

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-GW8-682.

12191-GW8-683

$8.88

3

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-178-000.

12200-178-305

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-178-305

Unavailable

5

GUIDE, IN./EX. VALVE | (Optional). This part replaces 12023-051-405.

12021-128-405

$17.91

5

GUIDE, IN./EX. VALVE | (Optional). This part replaces 12231-178-305.

12021-128-405

$17.91

6

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

7

CLAMP B, BREATHER TUBE

17236-174-770

Unavailable

8

CLIP, IGNITION WIRE

32906-061-000

$4.79

9

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

9

BOLT, STUD (6X32)

90033-041-020

$2.25

10

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

10

BOLT (6MM)

90082-035-010

$2.39

11

GASKET, RUBBER (16MM)

91303-035-000

$4.87

12

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

12

O-RING (9X1.6) (ARAI)

91305-028-900

$2.92

13

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

13

GASKET, RUBBER (9MM)

91306-141-000

$4.65

14

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

14

SCREW, PAN (6X20)

93500-06020-0A

$1.49

14

BOLT, FLANGE (6X20) | Use from Engine SN BS113253 This part replaces 96000-06020-00.

96001-06020-00

$1.49

14

BOLT, FLANGE (6X20) | Use from Engine SN BS113253

96001-06020-00

$1.49

15

PIN A, DOWEL (8X12)

94301-08120

$2.19

16

PIN, DOWEL (8X14)

94301-08140

$2.25
