Description

Price

1

CLAMP, FUEL TUBE (NOT AVAILABLE)

17505-174-670

Unavailable

2

COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30500-179-711.

30500-179-712

Unavailable

2

COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE)

30500-179-712

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

5

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

6

BRACKET, SELENIUM RECTIFIER (NOT AVAILABLE)

31701-086-000

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-174-670

Unavailable

8

SUB-WIRE HARNESS, SILICON (NOT AVAILABLE)

32105-086-000

Unavailable

9

CASE, FUSE CONNECTOR

32111-230-000

$4.28

10

CONNECTOR, FUSE

32112-230-000

$3.64

11

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

11

BAND A3, WIRE

95014-61300

$1.97

12

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-179-710

Unavailable

13

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-179-710

Unavailable

14

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-179-710.

32601-179-711

Unavailable

14

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-179-711

Unavailable

15

GROMMET, WIRE

32985-300-000

$3.35

16

LOCK SET (NOT AVAILABLE) This part replaces 35010-174-670.

35010-174-671

Unavailable

16

LOCK SET (NOT AVAILABLE)

35010-174-671

Unavailable

17

SWITCH ASSY., COMBINATION (NOT AVAILABLE) This part replaces 35100-172-017.

35100-172-027

Unavailable

17

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-172-027

Unavailable

18

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-179-711

Unavailable

19

COLLAR, STARTING MAGNETIC SWITCH SETTING (NOT AVAILABLE)

35852-179-710

Unavailable

20

HORN ASSY. This part replaces 38110-086-721.

38110-179-701

Unavailable

20

HORN

38110-179-701

Unavailable

21

BRACKET, HORN (NOT AVAILABLE)

38110-174-670

Unavailable

22

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

23

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

24

RUBBER, BATTERY STAY (NOT AVAILABLE)

50326-003-000

Unavailable

25

BAND, BATTERY NH1 (BLACK) (NOT AVAILABLE)

50373-086-690B

Unavailable

26

HOLDER, CONNECTOR (NOT AVAILABLE)

50374-086-690

Unavailable

27

RUBBER, NUMBER BRACKET CUSHION

84705-292-000

$2.79

28

BOLT, RECESSED (6X12) This part replaces 92300-06012.

92301-06012-0A

$1.49

28

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

92301-06012-0A

$1.49

28

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

29

BOLT-WASHER (6X12)

93402-06012-00

$1.69

29

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

29

BOLT-WASHER (6X12) This part replaces 93482-06012.

93402-06012-00

$1.69

29

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

30

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

93403-06016-00

$1.55

30

BOLT-WASHER (6X16) This part replaces 93483-06016.

93403-06016-00

$1.55

30

BOLT-WASHER (6X16) This part replaces 93483-06016-00.

93403-06016-00

$1.55

31

BOLT-WASHER (6X20)

93401-06020-00

$1.55

31

BOLT-WASHER (6X20) This part replaces 93491-06020-00.

93401-06020-00

$1.55

32

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

32

SCREW, PAN (6X12)

93500-06012-0A

$1.49

32

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

33

SCREW-WASHER (6X22) (NOT AVAILABLE)

93891-06022-00

Unavailable

34

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

34

NUT, HEX. (6MM)

94002-06080-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

WASHER, SPRING (6MM)

94111-06800

$1.49

37

PIN, SPLIT (3.0X35)

94201-30350

$1.49

38

BAND A3, WIRE

95014-61300

$1.97

39

FUSE (15A)

98200-11500

$1.49

40

BATTERY (6N11-2D) This part replaces 31500-174-505.

31500-174-505AH

Unavailable

40

BATTERY (6N11-2D)

31500-174-505AH

Unavailable

40

BATTERY (6N11-2D) This part replaces 31500-174-777.

31500-174-505AH

Unavailable

40

BATTERY (6N11-2D) This part replaces 98203-64210.

31500-174-505AH

Unavailable

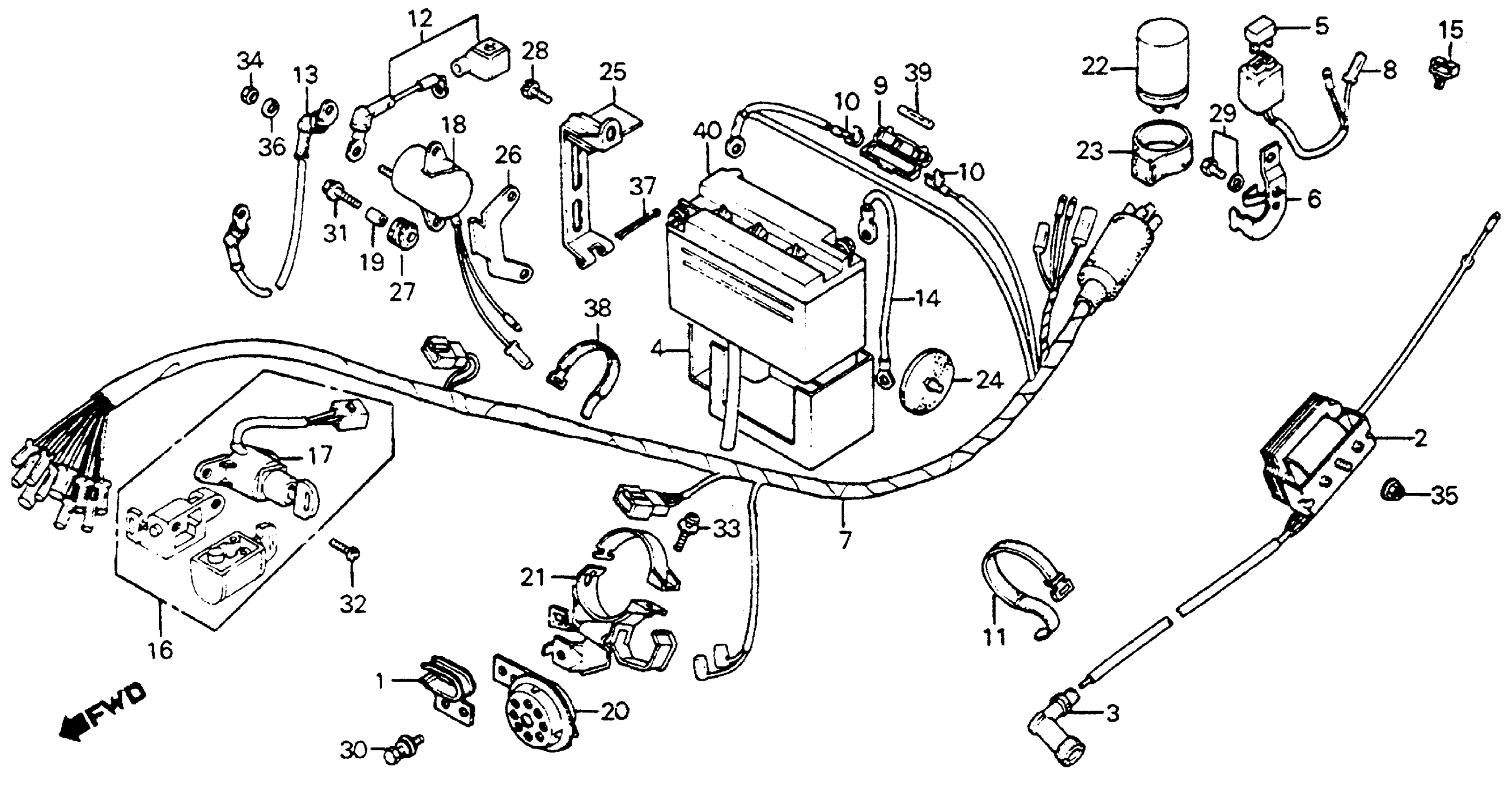

Honda C70A (80) PASSPORT, JPN, VIN# DA01-1000014 TO DA01-1012613 WIRE HARNESS + HORN Diagram

CLAMP, FUEL TUBE (NOT AVAILABLE)

COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30500-179-711.

COIL ASSY., A.C. IGNITION (TOYO) (NOT AVAILABLE)

CAP ASSY., NOISE SUPPRESSOR

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

RECTIFIER ASSY., SILICON (SHINDENGEN)

BRACKET, SELENIUM RECTIFIER (NOT AVAILABLE)

WIRE HARNESS (NOT AVAILABLE)

SUB-WIRE HARNESS, SILICON (NOT AVAILABLE)

CASE, FUSE CONNECTOR

CONNECTOR, FUSE

BAND A3, WIRE This part replaces 32161-001-000.

BAND A3, WIRE

CABLE, STARTER BATTERY (NOT AVAILABLE)

CABLE, STARTER MOTOR (NOT AVAILABLE)

CABLE, BATTERY GROUND (NOT AVAILABLE) This part replaces 32601-179-710.

CABLE, BATTERY GROUND (NOT AVAILABLE)

GROMMET, WIRE

LOCK SET (NOT AVAILABLE) This part replaces 35010-174-670.

LOCK SET (NOT AVAILABLE)

SWITCH ASSY., COMBINATION (NOT AVAILABLE) This part replaces 35100-172-017.

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

COLLAR, STARTING MAGNETIC SWITCH SETTING (NOT AVAILABLE)

HORN ASSY. This part replaces 38110-086-721.

HORN

BRACKET, HORN (NOT AVAILABLE)

RELAY ASSY., TURN SIGNAL

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

SUSPENSION, TURN SIGNAL RELAY

RUBBER, BATTERY STAY (NOT AVAILABLE)

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

HOLDER, CONNECTOR (NOT AVAILABLE)

RUBBER, NUMBER BRACKET CUSHION

BOLT, RECESSED (6X12) This part replaces 92300-06012.

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

BOLT, RECESSED (6X12)

BOLT-WASHER (6X12)

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

BOLT-WASHER (6X12) This part replaces 93482-06012.

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

BOLT-WASHER (6X16) This part replaces 93483-06016.

BOLT-WASHER (6X16) This part replaces 93483-06016-00.

BOLT-WASHER (6X20)

BOLT-WASHER (6X20) This part replaces 93491-06020-00.

SCREW, PAN (6X12) This part replaces 93500-06012.

SCREW, PAN (6X12)

SCREW, PAN (6X12) This part replaces 93500-06012-00.

SCREW-WASHER (6X22) (NOT AVAILABLE)

NUT, HEX. (6MM) This part replaces 94002-06080.

NUT, HEX. (6MM)

NUT, HEX. (6MM) This part replaces 94002-06080-00.

NUT, HEX. (6MM) This part replaces 94002-06080-05.

NUT, FLANGE (6MM)

WASHER, SPRING (6MM)

PIN, SPLIT (3.0X35)

BAND A3, WIRE

FUSE (15A)

BATTERY (6N11-2D) This part replaces 31500-174-505.

BATTERY (6N11-2D)

BATTERY (6N11-2D) This part replaces 31500-174-777.

BATTERY (6N11-2D) This part replaces 98203-64210.

BAND, BATTERY NH1 (BLACK) (NOT AVAILABLE)
