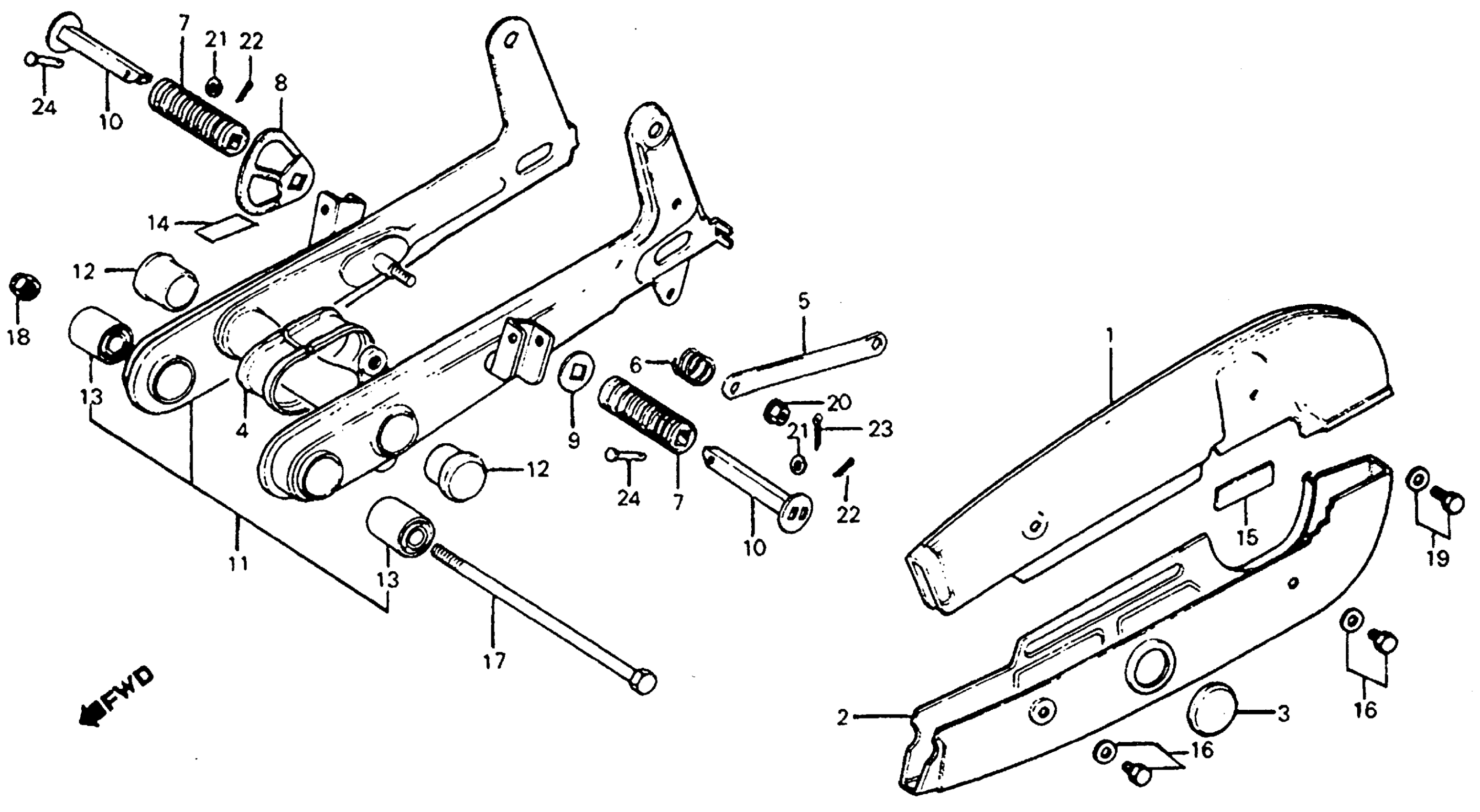

Honda C70A (80) PASSPORT, JPN, VIN# DA01-1000014 TO DA01-1012613 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (UPPER) *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

40510-001-020ZP

Unavailable

1

CASE, DRIVE CHAIN (UPPER) *PB31* (ANGEL BLUE) (NOT AVAILABLE)

40510-001-020ZQ

Unavailable

2

CASE, DRIVE CHAIN (LOWER) *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

40520-001-030ZP

Unavailable

2

CASE, DRIVE CHAIN (LOWER) *PB31* (ANGEL BLUE) (NOT AVAILABLE)

40520-001-030ZQ

Unavailable

3

CAP, CHAIN CASE PEEP HOLE

40545-001-000

$3.67

3

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000B.

40545-001-000

$3.67

3

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000ZC.

40545-001-000

$3.67

3

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-141-000.

40545-001-000

$3.67

4

GASKET, DRIVE CHAIN CASE

40591-041-000

Unavailable

5

LINK, RR. BRAKE TORQUE

43431-086-720

Unavailable

6

SPRING, STOPPER ARM

43434-250-000

$2.00

7

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

7

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

8

WASHER, PILLION STEP (NOT AVAILABLE)

50712-174-670

Unavailable

9

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

10

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

10

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

11

SWINGARM, RR. *PB31* This part replaces 52000-GB6-306ZE.

52000-GB5-307ZA

Unavailable

11

SWINGARM ASSY., RR. *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

52000-174-670ZA

Unavailable

11

SWINGARM, RR. *PB31* This part replaces 52000-174-670ZB.

52000-GB5-307ZA

Unavailable

12

CAP, CROSSMEMBER SIDE

52161-051-000

$2.33

12

CAP, CROSSMEMBER SIDE This part replaces 52161-051-000B.

52161-051-000

$2.33

13

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

14

MARK, MUFFLER CAUTION

87504-028-670

$2.92

15

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-174-670

Unavailable

16

BOLT-WASHER (6X6)

90118-383-000

Unavailable

17

BOLT, SWINGARM PIVOT

90120-046-810

Unavailable

18

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

19

BOLT-WASHER (6X16)

93401-06016-00

$1.55

19

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.55

19

BOLT-WASHER (6X16) This part replaces 93481-06016.

93401-06016-00

$1.55

19

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.55

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

PIN, SPLIT (1.6X12)

94201-16120

$1.49

23

PIN, SPLIT (2.0X15)

94201-20150

$1.49

24

PIN A, PILLION STEP

95015-81000

$2.21
