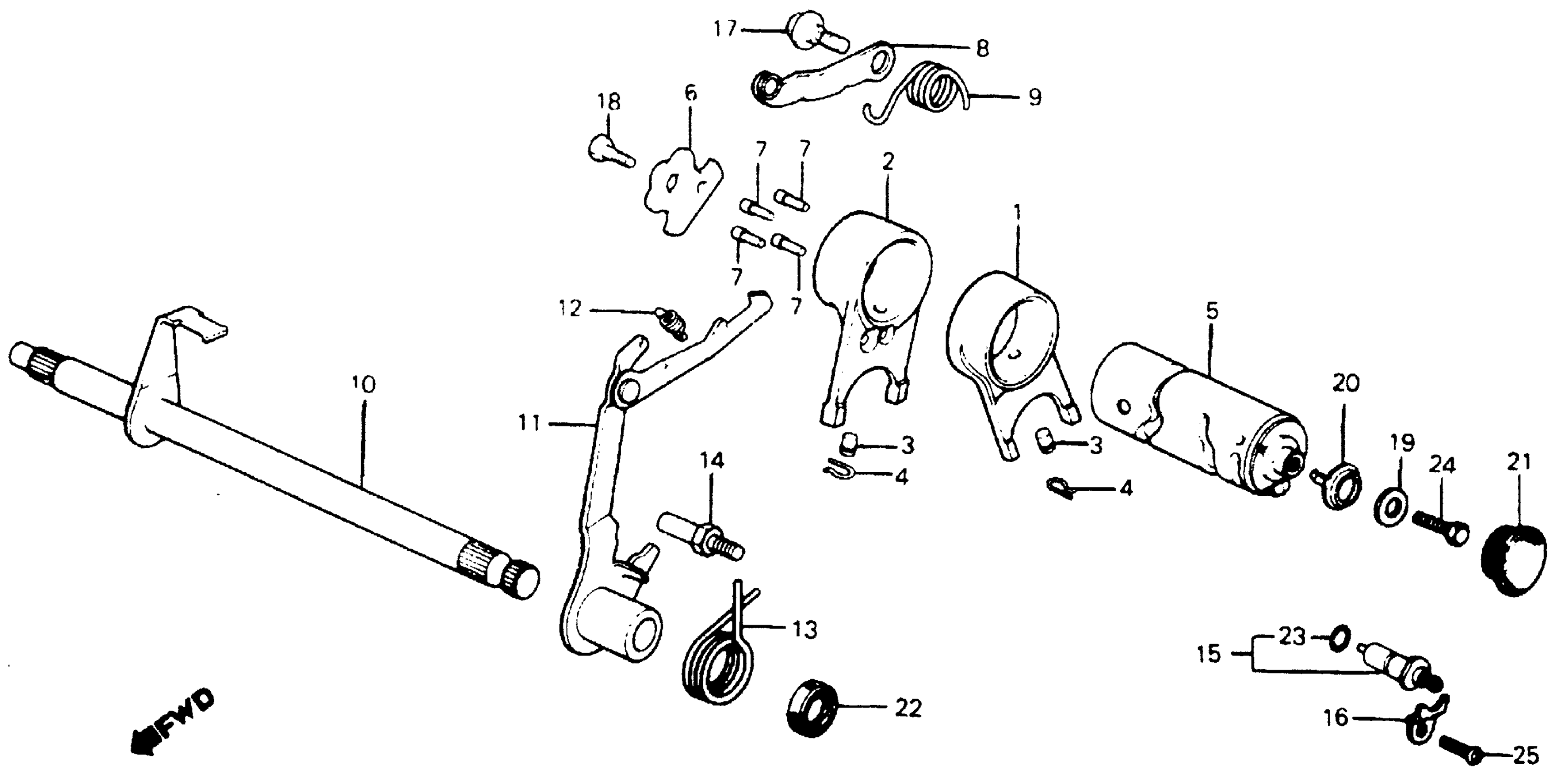

Honda C70A (80) PASSPORT, JPN, VIN# DA01-1000014 TO DA01-1012613 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, L. GEARSHIFT This part replaces 24211-087-000.

24211-087-010

$70.77

1

FORK, L. GEARSHIFT

24211-087-010

$70.77

2

FORK, R. GEARSHIFT This part replaces 24221-041-000.

24221-041-010

$84.39

2

FORK, R. GEARSHIFT

24221-041-010

$84.39

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE PIN

24263-028-000

$2.66

5

DRUM, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 1002653 This part replaces 24300-174-670.

24310-174-670

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE) This part replaces 24300-174-671.

24310-174-670

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-174-670

Unavailable

6

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24411-041-040

Unavailable

7

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

8

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

10

SPINDLE, GEARSHIFT

24610-092-670

$58.93

11

ARM, GEARSHIFT This part replaces 24630-086-000.

24630-086-030

Unavailable

11

ARM, GEARSHIFT This part replaces 24630-086-010.

24630-086-030

Unavailable

12

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

13

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

SWITCH ASSY., NEUTRAL (NOT AVAILABLE)

35600-174-671

Unavailable

16

PLATE, CONTACT FIXING

35755-001-020

Unavailable

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

BOLT, KNOCK (6MM) | Use up to Engine SN 1001613 This part replaces 90071-171-000.

90071-171-010

$2.39

18

BOLT, KNOCK (6MM) | Use up to Engine SN 1001613

90071-171-010

$2.39

18

BOLT, KNOCK (6MM)

90071-171-010

$2.39

19

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

20

WASHER (13.2MM)

90484-045-010

$4.00

21

PLUG, RUBBER (19MM)

90801-035-000

$2.92

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

23

O-RING (7X1.7)

91312-107-000

$3.18

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49
