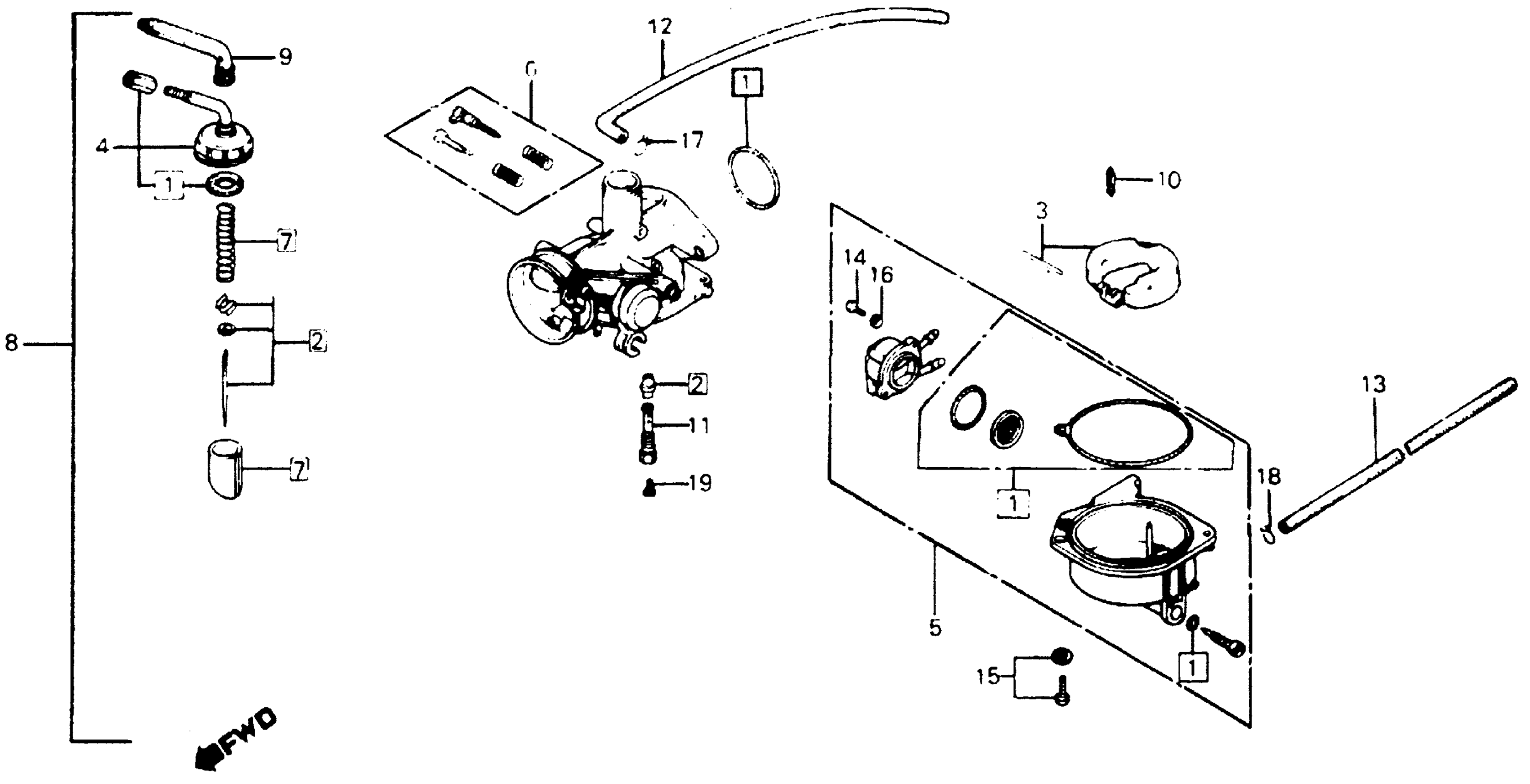

Honda C70A (80) PASSPORT, JPN, VIN# DA01-1000014 TO DA01-1012613 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-086-701.

16010-957-305

$30.20

1

GASKET SET

16010-957-305

$30.20

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-174-671

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

TOP SET

16014-086-305

Unavailable

4

TOP SET This part replaces 16014-086-700.

16014-086-305

Unavailable

4

TOP SET This part replaces 16014-141-841.

16014-086-305

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-174-671

Unavailable

6

SCREW SET (NOT AVAILABLE)

16016-174-671

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-173-004

Unavailable

8

CARBURETOR ASSY. (NOT AVAILABLE)

16100-174-673

Unavailable

9

CAP, RUBBER

16118-121-014

Unavailable

10

VALVE, FLOAT

16155-883-005

$20.11

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-174-671

Unavailable

12

TUBE, FUEL

16199-KG4-405

$9.49

12

TUBE, FUEL This part replaces 16199-092-700.

16199-KG4-405

$9.49

13

TUBE, AIR VENT This part replaces 16199-GB4-003.

16199-943-003

Unavailable

13

TUBE, AIR VENT This part replaces 16199-092-901.

16199-943-003

Unavailable

13

TUBE, AIR VENT

16199-943-003

Unavailable

14

SCREW, PAN (3X12)

93500-03012-0H

$1.49

15

SCREW-WASHER (4X14)

93892-04014-08

$1.49

16

WASHER, SPRING (3MM)

94111-03000

$1.49

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLIP, TUBE (B6.5)

95002-02650

$1.49

19

JET, MAIN (#90) This part replaces 99101-116-0900.

99102-GHB-0900

$9.46

19

JET, MAIN (#90)

99102-GHB-0900

$9.46
