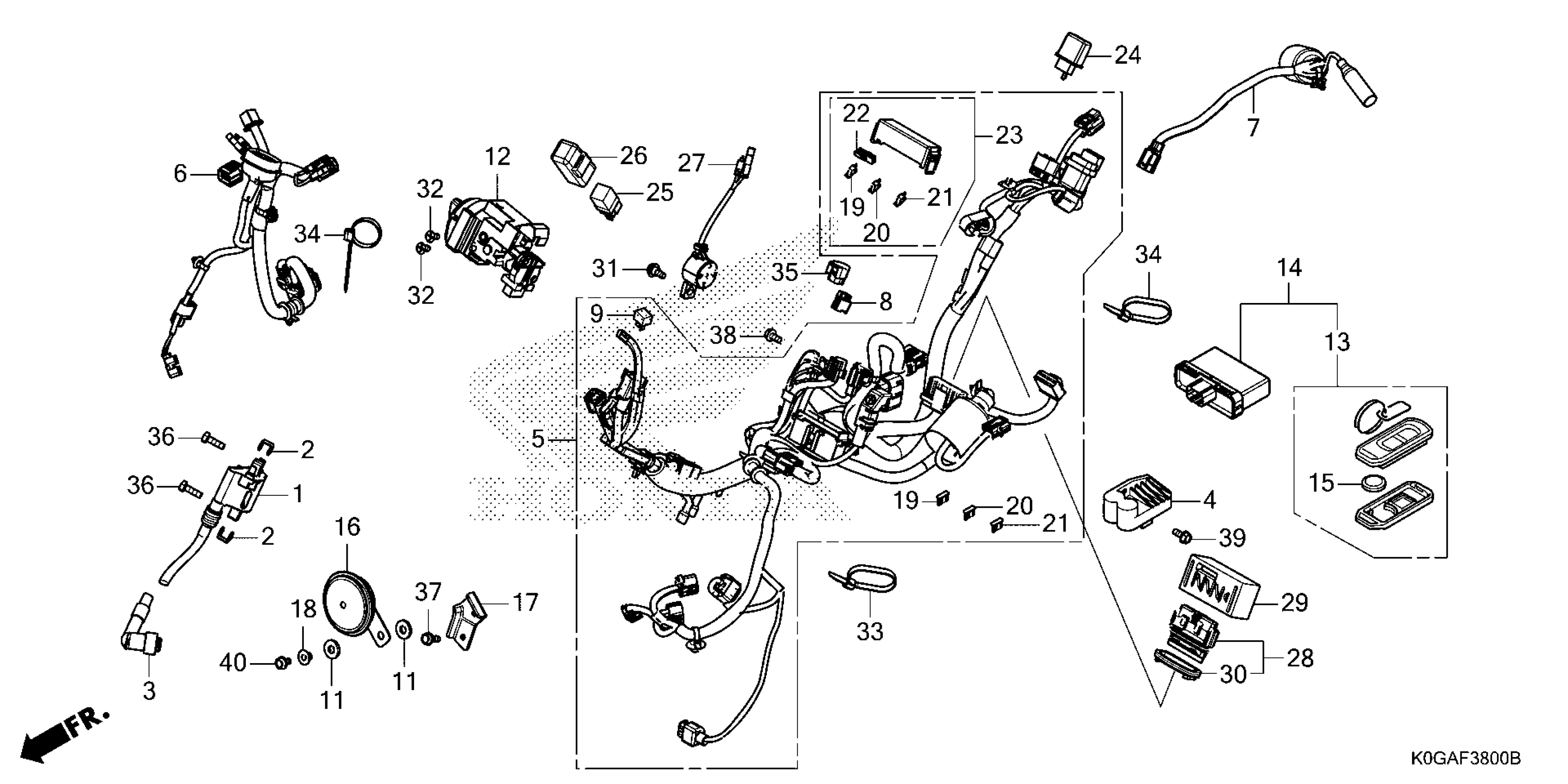

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 WIRE HARNESS Diagram

COIL, IGNITION

30510-K0G-T21

$22.61

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-K0G-901

$11.95

RECTIFIER, REGULATE (SHINDENGEN)

31600-K2E-T01

$123.64

WIRE HARNESS

32100-K0G-A20

$560.46

SUB-HARNESS, FR.

32101-K0G-A20

$69.74

SUB-HARNESS, RR.

32108-K0G-T20

$29.20

DUMMY, CONNECTOR (WPC 3P 090 F)

32144-MKC-A00

$4.02

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

SLIDER

32160-K76-T61

$18.89

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SWITCH, HANDLE LOCK

35100-K0G-A21

$249.05

FOB ASSY.

35121-K0G-A20

$132.05

CONTROL UNIT SET

35141-K0G-A20

$242.38

BATTERY (CR2032)

35148-K1W-D00

$5.90

HORN (HIGH)

38110-K44-J01

$24.56

STAY, HORN

38111-K0G-900

$6.77

COLLAR, HORN SETTING

38117-KYZ-T00

$1.49

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

PULLER, MINI FUSE

38235-SNA-A01

$3.84

COVER, FUSE BOX

38255-K0G-D21

$25.69

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

RELAY, STARTER (HONDALOCK)

38501-KVB-901

$22.10

SUSPENSION, STARTER RELAY (HONDALOCK)

38506-KWW-711

$4.39

BUZZER ASSY.

38720-K0W-T01

$18.46

PGM-FI UNIT

38770-K0G-A22

$137.02

SUSPENSION, ENGINE CONTROL UNIT

38771-K76-T60

$3.07

SEAL, RING

38775-K76-T61

$164.95

BOLT, SPECIAL (6MM)

90107-KVB-900

$1.49

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
