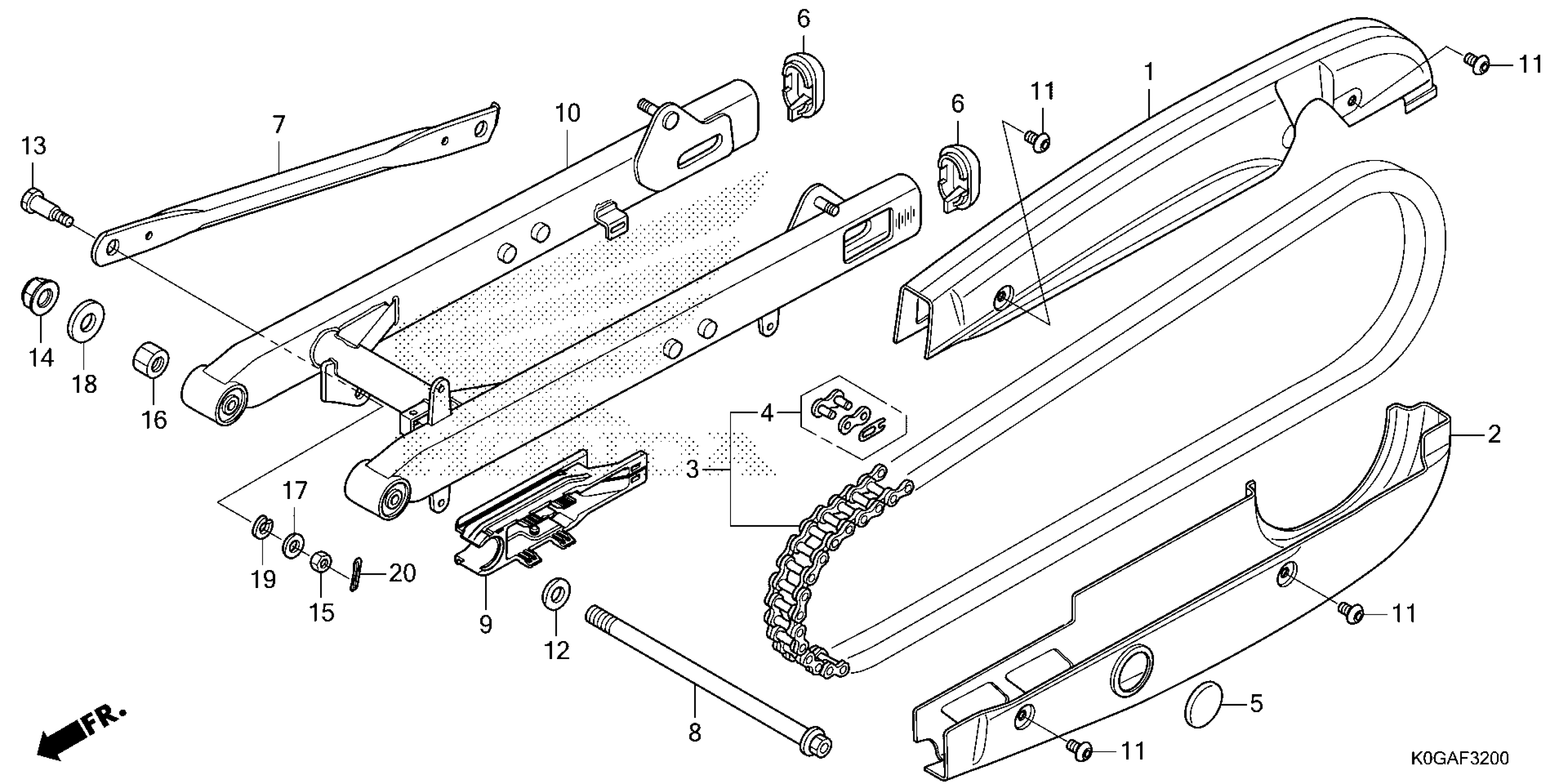

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 SWINGARM@CHAIN CASE Diagram

CASE, HALF DRIVE CHAIN (UPPER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

40510-K0G-900ZA

$68.03

CASE, HALF DRIVE CHAIN (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

40520-K0G-900ZA

$64.66

CHAIN, DRIVE

40530-K0G-T21

$12.90

MASTER LINK

40531-KWB-601

$5.18

MASTER LINK SET (RK EXCEL)

40531-K0G-901

$1.67

CAP, CHAIN CASE PEEP HOLE

40545-001-000

$3.67

CAP, SWINGARM END

40546-K0G-900

$10.14

ARM, RR. BRAKE STOPPER

43431-K0G-900

$16.00

BOLT, SWINGARM PIVOT

52101-K0G-900

$7.10

SLIDER, CHAIN

52170-K0G-900

$19.02

SWINGARM SUB-ASSY., RR. *PB415P* (PEARL NILTAVA BLUE)

52200-K0G-900ZB

$170.03

SWINGARM SUB*NHB95P*

52200-K0G-900ZD

$155.77

SCREW, PAN (6X6)

90005-KYJ-900

$1.49

WASHER, PIVOT BOLT

90122-KWB-600

$1.49

BOLT A, STOPPER ARM

90126-KWB-600

$1.49

NUT, U (12MM)

90306-KWN-701

$4.17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (12MM) (NOT AVAILABLE)

94031-12000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (12MM)

94101-12000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
