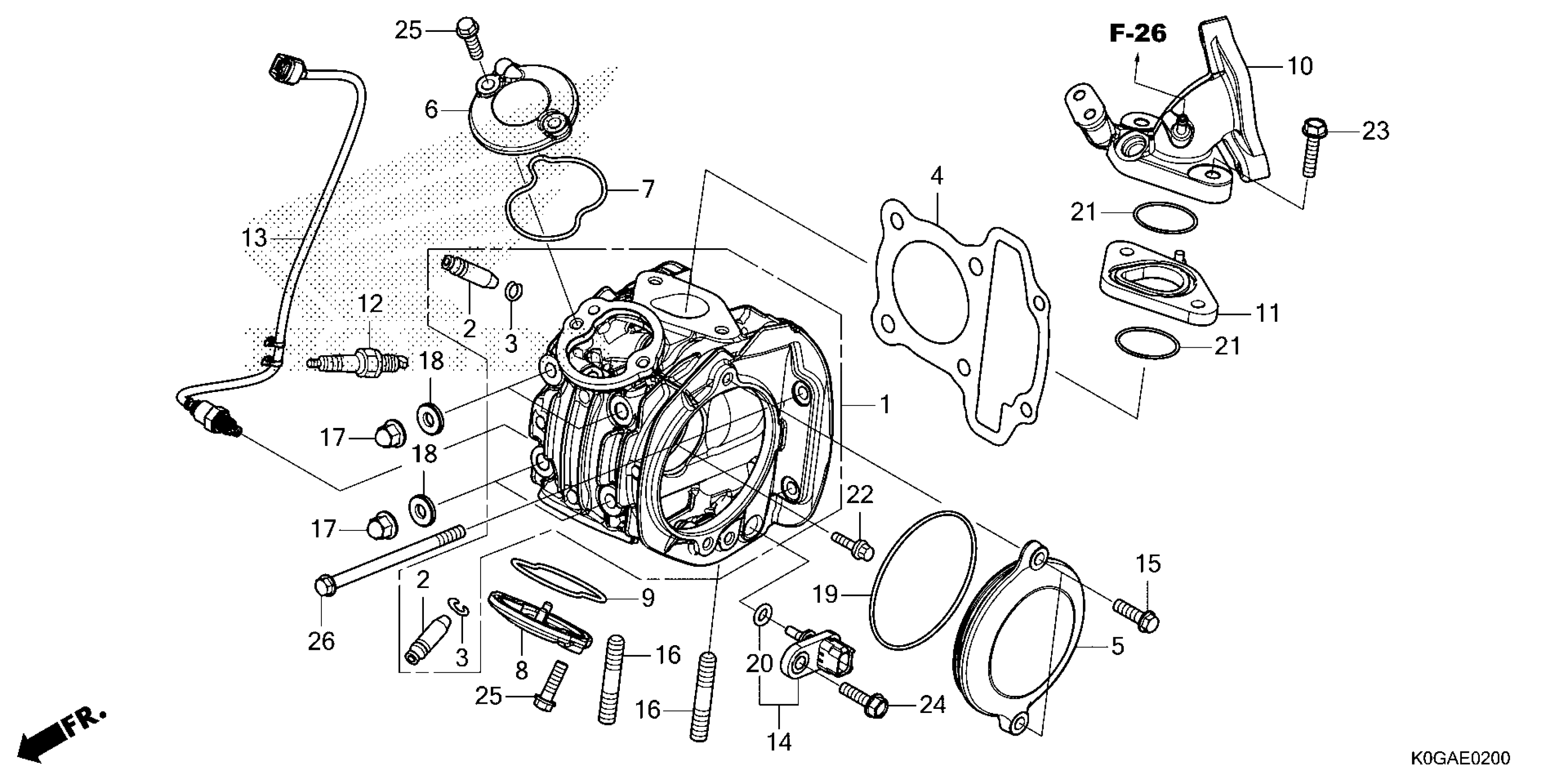

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-K0G-T20

$172.16

2

GUIDE, VALVE (OVER SIZE)

12204-K0J-P00

$47.79

3

CLIP, VALVE GUIDE

12206-K0J-N00

$1.49

4

GASKET, CYLINDER HEAD

12251-K26-G01

$2.77

5

CVR, L. CYL HD SIDE

12341-K0G-T20

$38.23

6

CVR, IN. TAPPET HOLE

12361-K0G-T20

$23.54

7

GASKET, IN. TAPPET HOLE COVER

12365-K1M-T00

$1.67

8

CVR, EX. TAPPET HOLE

12371-K0G-T20

$22.84

9

GASKET, EX. TAPPET HOLE COVER

12375-K1M-T00

$1.67

10

PIPE, INLET

17110-K0G-D20

$136.80

11

INSULATOR, IN. PIPE

17119-K26-G00

$5.44

12

SPARK PLUG (CPR7EA-9S) (NGK)

31917-KWB-601

$3.98

13

SENSOR, OXYGEN

36532-K0G-T21

$42.02

14

SENSOR ASSY.

37750-K1A-N01

$6.72

15

BOLT, FLANGE (6X20)

90002-K0G-T20

$1.49

16

BOLT, STUD (8X32)

90004-K1M-T00

$1.49

17

NUT, CAP (7MM)

90201-K1M-T00

$1.49

18

WASHER A, SEALING

90443-GGN-J00

$1.49

19

O-RING (74.5X2.5)

91301-K73-V81

$1.49

20

O-RING (6.3X2.5)

91304-K1A-N01

$1.49

21

O-RING (31.5X2.4)

91304-K1M-T00

$1.56

22

BOLT-WASHER (6X12)

93404-06012-00

$1.55

23

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

26

BOLT, FLANGE (6X95) (NOT AVAILABLE)

96001-06095-00

$2.64
