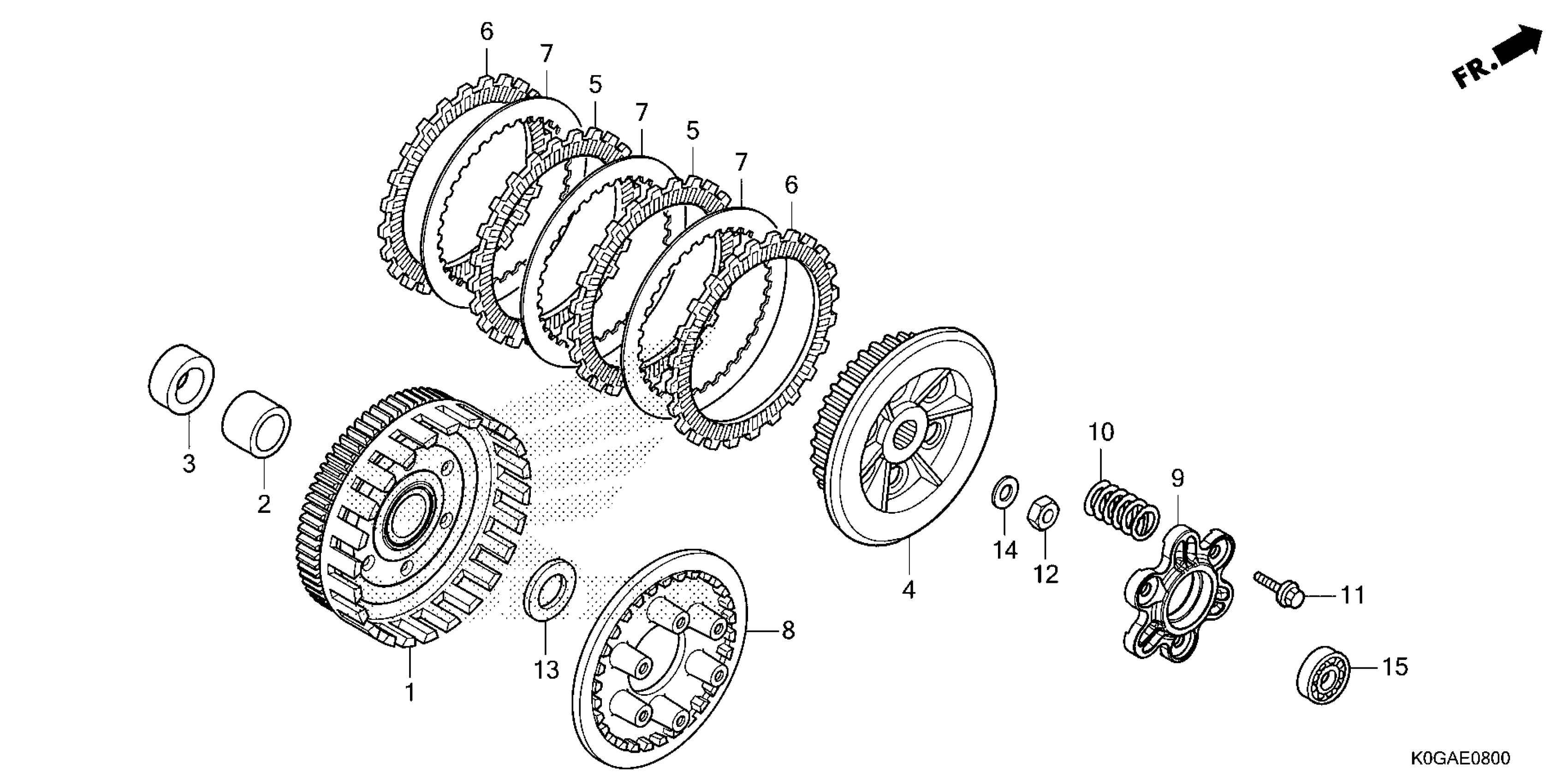

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 CLUTCH Diagram

CLUTCH OUTER

22100-K0G-T21

$192.94

GUIDE, CLUTCH (OUTER)

22115-KPH-900

$1.75

COLR, CLUTCH (OUTER)

22116-K1M-T00

$1.75

CENTER, CLUTCH (34T)

22121-K0G-T21

$18.45

DISK, CL FRICTION

22201-K0G-T21

$8.13

DISK, CL FRICTION

22201-K1M-T01

$5.91

PLATE, CLUTCH

22321-KE8-000

$11.41

PLATE, CLUTCH PRESSURE

22350-KPH-900

Unavailable

PLATE, CLUTCH LIFTER

22361-K1M-T01

$5.09

SPRING, CLUTCH

22401-K0G-T21

$1.42

BOLT, SPECIAL FLANGE (6X20)

90050-KPH-900

$0.93

NUT, HEX. (14MM)

90204-KYJ-900

$1.87

WASHER, THRUST (17MM)

90403-KPH-900

$0.94

WASHER (14.2X26X3)

90432-KPT-A00

$1.64

BEARING, RADIAL BALL (6200)

96100-62000-00

$7.83
