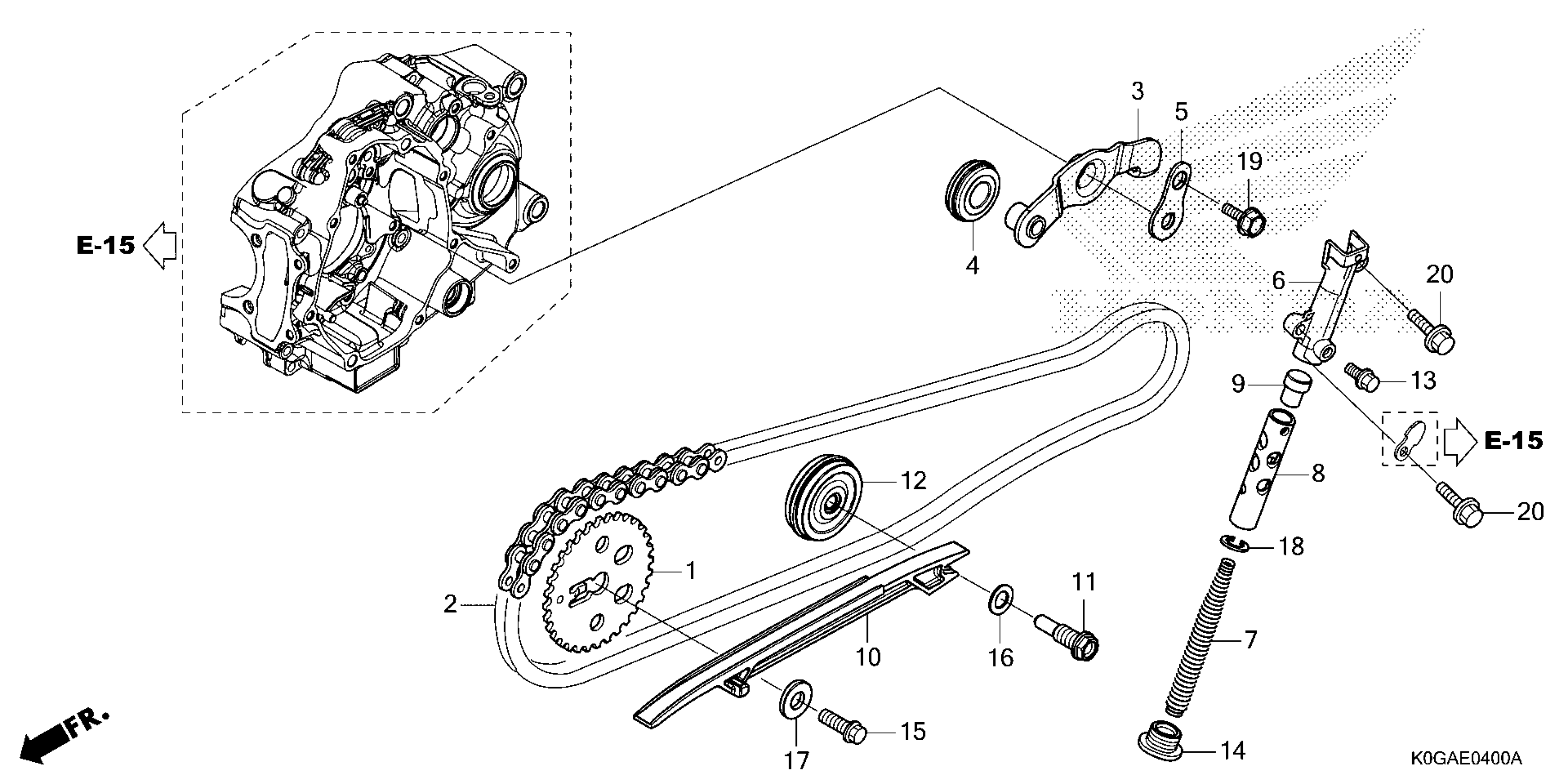

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (32T)

14321-K1M-T00

$9.94

CHAIN, CAM (25HDS-90LE) (RK-M)

14401-K1M-T01

$7.89

ARM, CAM CHAIN TENSIONER

14500-K1M-T00

$9.38

ROLLER, CAM CHAIN TENSIONER

14510-K1M-T01

$8.73

PLATE, TENSIONER ARM SETTING

14515-K1M-T00

$1.49

TENSIONER

14521-K1M-T01

$22.43

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, TENSIONER PUSH

14550-K1M-T01

$16.18

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

GUIDE, CAM CHAIN

14611-K1M-T00

$5.76

PIN, GUIDE ROLLER

14615-K1M-T00

$1.62

ROLLER, CAM CHAIN GUIDE

14620-K1M-T01

$9.92

BOLT, FLANGE (6X12) (NSHF)

90005-K1M-T00

$1.49

BOLT, CAP (14MM)

90081-K1M-T00

$4.93

BOLT, FLANGE (8X22)

90082-K1M-T00

$1.49

WASHER (8MM)

90475-KWB-600

$1.49

WASHER (8MM)

90483-KWN-900

$1.49

CLIP (12MM)

90603-K1M-T00

$1.59

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
