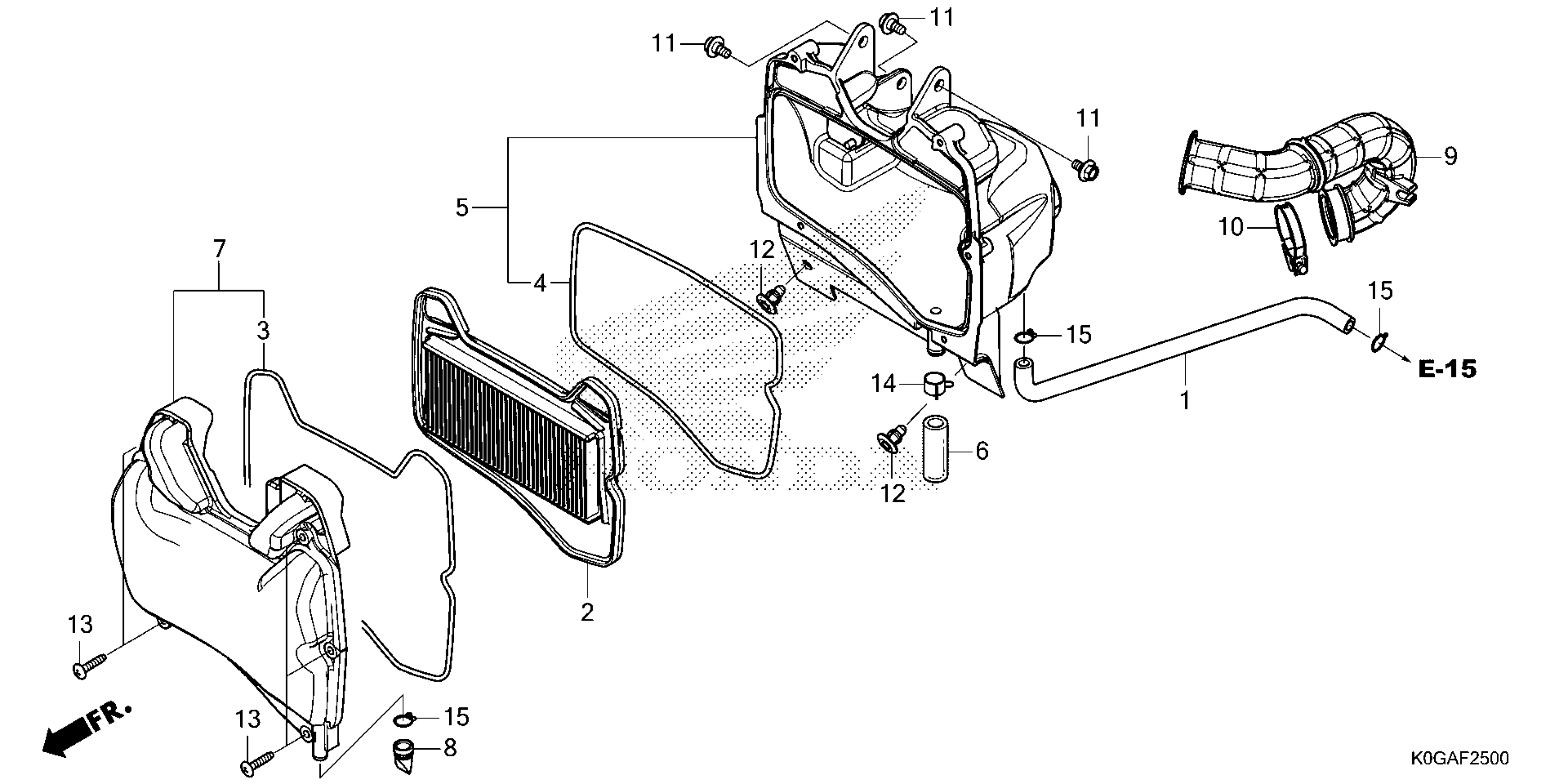

Honda C125AAC (24) MOTORCYCLE, THA, VIN# MLHJA585-R5200001 AIR CLEANER Diagram

TUBE, BREATHER

15761-K0G-T20

$8.74

ELEMENT, AIR CLEANER

17210-KWW-640

$7.18

SEAL, AIR CLEANER COVER

17213-KWB-600

$2.43

SEAL, AIR CLEANER HOUSING

17214-KPY-H00

$2.23

CASE SUB-ASSY.

17225-K0G-T20

$11.92

TUBE, VINYL (11X15X35)

17227-KPK-900

$2.92

COVER SUB-ASSY., AIR CLEANER

17235-K0G-900

$8.26

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.49

TUBE

17253-K0G-T20

$20.52

BAND, AIR CLEANER CONNECTING TUBE (38)

17256-K35-V00

$1.67

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

CLIP, AIR IN. DUCT PUSH

90601-PV3-003

$4.09

SCREW, TAPPING (5X25)

93903-25580

$1.49

CLAMP, TUBE (D13)

95002-41300-08

$2.92

CLIP, TUBE (C12)

95002-80000

$1.49
